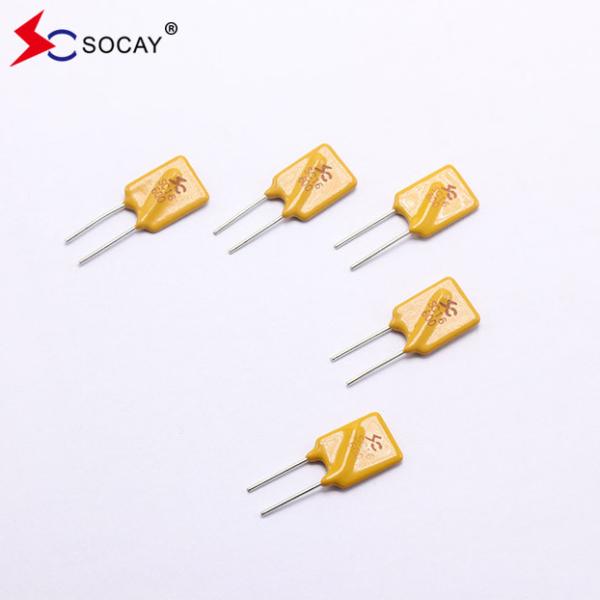

Polymer PPTC Resettable Fuse Radial Lead SC16-600SZ0D 6A I Hold 16Vmax 2.80W
Polymer PPTC Resettable Fuse Radial Lead SC16-600SZ0D 6A I Hold 16Vmax 2.80W
Polymer PPTC Resettable Fuse Radial Lead SC16-600SZ0D 6A I Hold 16Vmax 2.80W
Polymer PPTC Resettable Fuse Radial Lead SC16-600SZ0D 6A I Hold 16Vmax 2.80W
Polymer PPTC Resettable Fuse Radial Lead SC16-600SZ0D 6A I Hold 16Vmax 2.80W
Polymer PPTC Resettable Fuse Radial Lead SC16-600SZ0D 6A I Hold 16Vmax 2.80W
Polymer PPTC Resettable Fuse Radial Lead SC16-600SZ0D 6A I Hold 16Vmax 2.80W
Polymer PPTC Resettable Fuse Radial Lead SC16-600SZ0D 6A I Hold 16Vmax 2.80W
Specifications
Brand Name :
SOCAY
Model Number :
SC16-600SZ0D
Certification :
REACH, RoHS, ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
PPTC Resettable Fuse
Package Type :
Radial Lead
I hold :
6A
I trip :
12A
V max :
16V
I max :
40A
P dtyp. :
2.8W
Maximum Time To Trip Current :
30A
Maximum Time To Trip Time :
5.8Sec
Resistance min :
0.01Ω
Resistance max :
0.02Ω
Resistance 1max :
0.035Ω
Description

Radial Lead Resettable Polymer PPTC SC16-600SZ0D 6A Ihold 16Vmax 2.80W Fast Delivery Time

DATASHEET: SC16-600SZ0D_v2108.1.pdf

Part Number I hold (A) I trip (A)

V max

(Vdc)

I max

(A)

Pdtyp

(W)

Maximum Time

To Trip

 Resistance

Current

(A)

Time

(S)

R min

(Ω)

R max

(Ω)

R1max

(Ω)
SC16-600SZ0D 6.00 12.00 16 40 2.80 30.0 5.8 0.010 0.020 0.035

I hold= Hold current: maximum current at which the device will not trip at 25℃ still air.

I trip= Trip current: minimum current at which the device will always at 25℃ still air.

V max= Maximum voltage device can withstand without damage at rated current.

I max= Maximum fault current device can withstand without damage at rated voltage.

T trip=Maximum time to trip(s) at assigned current.

Pdtyp.= Typical power dissipation: typical amount of power dissipated by the device when in state air environment.

R min= Minimum device resistance at 25℃ prior to tripping.

R max= Maximum device resistance at 25℃ prior to tripping.

R1max= Maximum resistance of device at 25℃ measured one hour after tripping.

Caution: Operation beyond the specified rating may result in damage and possible arcing and flame.

Features:

u RoHS Compliant and Halogen-Free

u Radial leaded Devices

u Cured,flame retardant epoxy polymer insulating material meets UL94V-0 requirements

u Operation Current: 6.00A, Maximum Voltage: 16Vdc, Operating Temperature: -40℃ to +85℃

Applications:

u USB hubs, ports and peripherals

u Power ports

u IEEE1394 ports

u Motor protection

u Computers and peripherals

u General electronics

Ambient Operation Temperature -40℃ -20℃ 0℃ 23℃ 30℃ 40℃ 50℃ 60℃ 70℃ 85℃
Percentage Reduction 145% 130% 120% 100% 95% 88% 80% 71% 66% 56%

Test Test Conditions Accept/Reject Criteria
Resistance In still air @25±2°C Rmin≤R≤Rmax
Hold Current 60 min, at Ihold, In still air @25±2°C No trip
Time to Trip Specified current, Vmax, @25±2°C T≤Maximum Time To Trip
Trip Cycle Life Vmax, Imax,100 cycles No arcing or burning
Trip Endurance Vmax,24hours No arcing or burning

Lead Material

0.03-1.85A Tin-plated Copper clad steel

2.50-5.00A Tin-plated Copper
Soldering Characteristics Solder ability per MIL-STD-202, Method 208E
Insulating Material Cured, flame retardant epoxy polymer meets UL 94V-0 requirements.
Device Labeling Marked with ‘SC’, voltage, current rating
