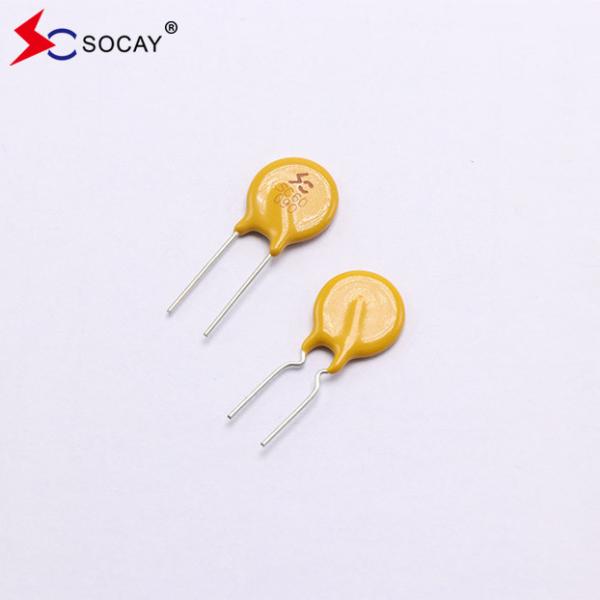

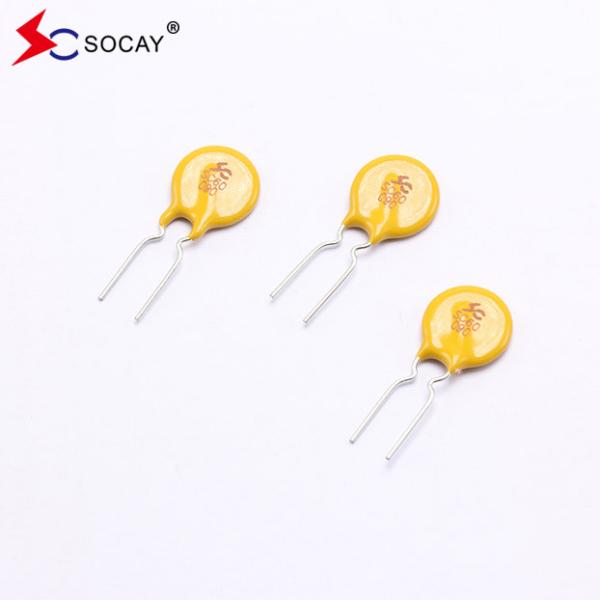

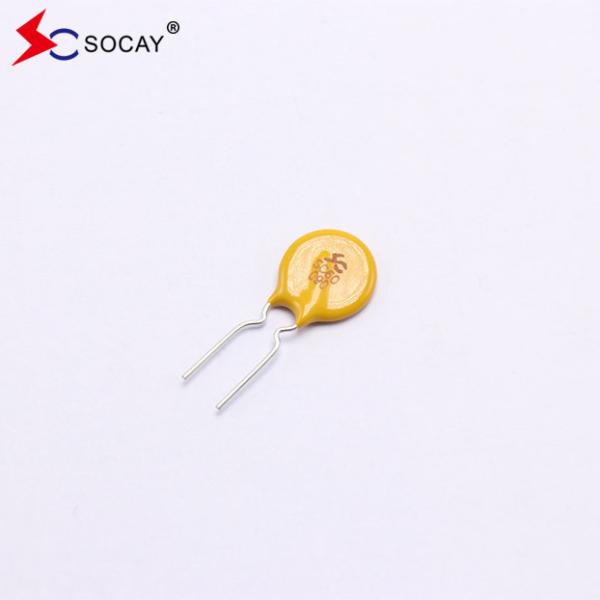

Radial Lead PPTC Resettable Fuse SC60-090CW0D I hold 0.9A Maximum Voltage 60Vdc

PPTC Resettable Fuse​ DATASHEET: SC60-090CW0D_v96.2.pdf

Selection methods

1,Ihold value (holding current) > normal working current in the circuit Vmax ≥ normal voltage in the circuit, ambient temperature.

2,Customer operating current divided by temperature coefficient ≤ product operating current.

Electrical Parameters:

Features of PPTC polymer positive temperature coefficient thermistor (resettable fuse)
> Sensitive to current and temperature, resistance increases as temperature and current increase;
> The response speed of PPTC polymer positive temperature coefficient thermistor (resettable fuse) is slow, generally tens of milliseconds or even seconds, and the current does not flow through the PPTC polymer positive temperature coefficient thermistor (resettable fuse). related;
> It has self-restoring characteristics and can be repeatedly used in circuits within its rated use range;
> PPTC polymer positive temperature coefficient thermistor (resettable fuse) has a low resistance value under normal working conditions of the circuit and has almost no impact on the circuit;
> When used, PPTC polymer positive temperature coefficient thermistor (resettable fuse) is connected in series in the circuit;
> Our PPTC polymer positive temperature coefficient thermistor (resettable fuse) product maintains a current of 30mA~14A and a maximum withstand voltage of 5V~600V.

PPTC Resettable Fuse Applications:

Temperature Rerating Chart – I _hold (A):

Test Procedures and Requirement:

PPTC Resettable Fuse​ Physical Specifications:

PPTC Resettable Fuse​ Packaging Quantity:

Applications

Digital products, Cameras, Mobile phones, Photo frames, Control panels, Toys, LCDs, Power supplies, Communication equipment, Security products, Audio, Converters. It is used in almost all low-voltage power supply products, and lightning protection packages, etc.
