1550nm ,100khz,250mw, DFB,Ultra-High-Power Polarization-Maintaining Narrow Linewidth Laser with 100kHz Linewidth and 250mW Output
1550nm ,100khz,250mw, DFB,Ultra-High-Power Polarization-Maintaining Narrow Linewidth Laser with 100kHz Linewidth and 250mW Output
1550nm ,100khz,250mw, DFB,Ultra-High-Power Polarization-Maintaining Narrow Linewidth Laser with 100kHz Linewidth and 250mW Output
1550nm ,100khz,250mw, DFB,Ultra-High-Power Polarization-Maintaining Narrow Linewidth Laser with 100kHz Linewidth and 250mW Output
Specifications
Brand Name :
Janhoo
Model Number :
JNL-BT55100K24-PM
Place of Origin :
China
MOQ :
1
Price :
1215USD
Delivery Time :
2 weeks
Description

This DFB Narrow Linewidth Laser (JNL) features advantages such as low RIN noise, narrow linewidth, and high power. It is highly suitable for applications in fields including automotive lidar, optical fiber sensing, and optical fiber communication. Capable of meeting customers' rapid customization needs, the product also boasts short lead times, fast delivery, excellent cost-effectiveness, and high reliability.

Product Features
  • Polarization-maintaining 14-pin butterfly package
  • 1550nm wavelength, 100kHz linewidth
  • Stable output optical power up to 250mW
Product Applications
  • Lidar
  • Optical Fiber Sensing
  • High-Precision Measurement
  • Optical Communication
Product Specification Parameters (Chip Temperature @25℃)
Parameter Symbol Operating Conditions Min. Typ. Max. Unit
Central Wavelength λc @25℃ Ib=1200mA 1547 1550 1553 nm
Spectral Linewidth (FWHM) Δλ Lorentzian --- 100 200 kHz
Maximum Output Optical Power Po CW @500mA 200 --- 250 mW
Side-Mode Suppression Ratio (SMSR) SMSR --- 45 55 --- dB
Polarization Extinction Ratio (PER) PER --- 20 --- --- dB
Threshold Current Ith @25℃ --- 70 150 mA
LD Operating Current Ib CW --- 1000 1200 mA
LD Operating Voltage Vf CW --- 1.8 2.2 V
TEC Operating Current ITEC --- --- --- 1.8 A
TEC Operating Voltage VTEC --- --- --- 3.4 V
Thermistor Resistance Rtherm @25℃ 9.5 10 10.5 KΩ
Operating Temperature Range To 0 --- 50 ℃
Storage Temperature Range Ts -40 --- 80 ℃

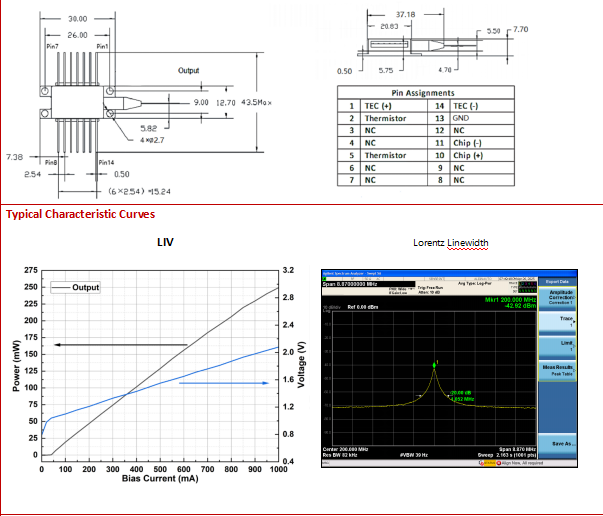

Mechanical Dimensions and Pin Definitions

1550nm ,100khz,250mw, DFB,Ultra-High-Power Polarization-Maintaining Narrow Linewidth Laser with 100kHz Linewidth and 250mW Output

Ordering Information
Ordering Information Product Description
JNL-BT55100K24-PM 1550nm-100kHz-250mW-PM-DFB
