1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
Specifications
Place of Origin :
china
Brand Name :
snsc
Packaging Details :
shipped by container
Supply Ability :
500/Months
Price :
negotiable
Certification :
CE/ISO
MOQ :
1 unit
Delivery Time :
30-45 Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Applicable Industries :
Garment Shops, Farms, Home Use, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
Showroom Location :
None
Condition :
New
Power Souce :
AC Motor
Min. Lifting Height :
145mm
Fork Length :
1220mm
Fork Width :
122mm
Overall Dimensions :
2565*1290*2470mm
Warranty :
1 Year, 12 months or 2000 hours
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Gearbox
Weight (KG) :
2900 kg
Type :
Powered Pallet Truck
After-sales Service Provided :
Overseas third-party support available
Product name :
double deap reach truck
controller :
USA Curtis brand
drive motor :
AC motor
Lift motor :
AC motor
Mast :
Duplex/ Triplex full free mast
Charger :
included
Marketing Type :
New Product 2020
Port :
Shanghai, Qingdao,Tianjin,Guangzhou,
Description

1.5 Ton 2 Ton Double Deep Reach Truck with AC Motor and Duplex / Triplex Full Free Mast

Product Description
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
Model
Drive Type
Electric Drive(Battery)
Operating Type
Sit-on
Braking Type
Regeneration+Electromagnetic hydraulic
Rated Load
mm
2000
Load Center Distance
mm
600
Weight(incl Battery)
kg
3450
Seize
L*W*H
mm
2565*1290*2470
Fork Size
mm
40*122*1220
Wheelbase
mm
1510
Lifting Height
mm
5600
Free Lift Height
mm
1570
Door Frame Angle
1/3
Reach Distance
mm
600
Support Arm Medial Width
mm
920
To The Length Of The Support Arm
mm
1920
Min. Ground Clearance
mm
90
Motor
Power of Drive Motor
Kw
6.4
Power of Lifting Motor
Kw
11.5
Battery Voltage/Rated Capacity
V/Ah
48/500
Drive Control Mode
MOSFET
Weight (Battery)
kg
890
Working Performance
Right Angle Stacking Aisle Width
Pallet Size: 800*1200 The Edge of The Size
mm
2380
Turning Radius
1725
Travel Speed Full Load/No Load
kw/h
9.5/10.5
Lifting Speed Full Load /No Load
mm/s
260/360
Descent Speed Full Load/No Load
mm/s
500/400
Grade Ability Full Load/No Load
%
10/15
Detailed Images
1.5 Ton 2 Ton Double Deep Reach Truck
two drive motor & one steering motor
1.5 Ton 2 Ton Double Deep Reach Truck
USA Curtis controller
1.5 Ton 2 Ton Double Deep Reach Truck
Chinese best brand battery
1.5 Ton 2 Ton Double Deep Reach Truck
Mounted right operation handle
1.5 Ton 2 Ton Double Deep Reach Truck
Electric steering
1.5 Ton 2 Ton Double Deep Reach Truck
LED rainproof Dispaly screen
1.5 Ton 2 Ton Double Deep Reach Truck

Comfortable seat with safty belt
1.5 Ton 2 Ton Double Deep Reach Truck

LED Warning Light
1.5 Ton 2 Ton Double Deep Reach Truck

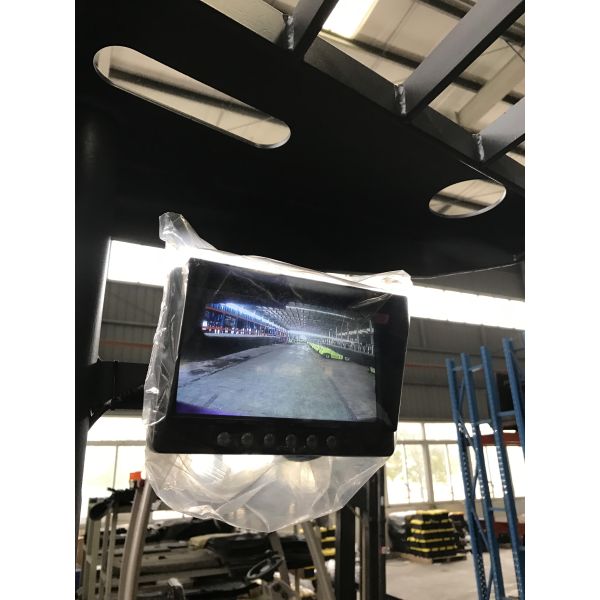

Camera
Optional Attachments
SNSC forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.
1.5 Ton 2 Ton Double Deep Reach Truck
Quality Control
SNSC Forklifts have strict quality control system. Although strict quality control has been carried out during the production process, to ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery.
Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes loading, lifting, tilting, turning, climbing, etc.
1.5 Ton 2 Ton Double Deep Reach Truck
Tilt angle test
1.5 Ton 2 Ton Double Deep Reach Truck
Wheel hug test
1.5 Ton 2 Ton Double Deep Reach Truck
Brake Line Test
1.5 Ton 2 Ton Double Deep Reach Truck
Climbing test
1.5 Ton 2 Ton Double Deep Reach Truck
Lifting Test
1.5 Ton 2 Ton Double Deep Reach Truck
Turning Test
Package and Delivery
1.6-2Ton Reach battery operated forklift with cheap price Shipping with Tool Box, Forklift truck Catalog, Gloves and Forklift truck Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Packaging&Shipping 1*20'GP - 4 Units, 1*40'GP - 6 Units
1.5 Ton 2 Ton Double Deep Reach Truck

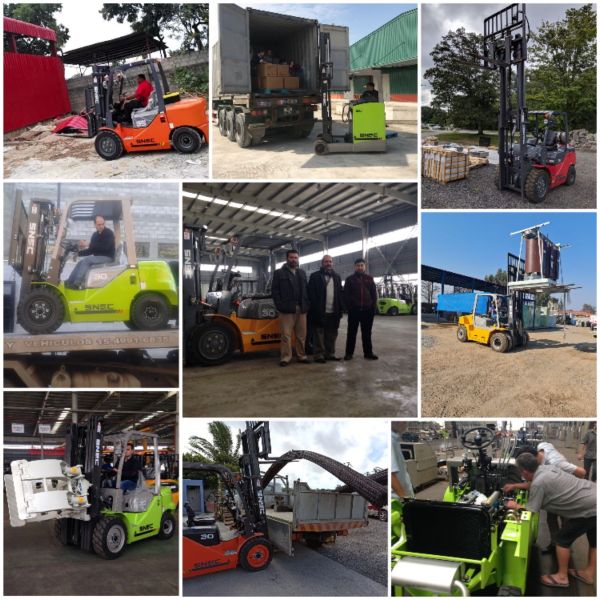

Successful Cases
1.5 Ton 2 Ton Double Deep Reach Truck
SNSC --"Beyond your needs!"
SNSC as a professional manufacturer of industrial vehicles, offer your various solutions for moving and stocking materials, such as diesel forklifts from 1.5t to 10t, electric forklifts from 1t to 3.5t, LPG gasoline electric stacker, warehouse trucks.
1.5 Ton 2 Ton Double Deep Reach Truck
Our Factory
We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.

our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
1.5 Ton 2 Ton Double Deep Reach Truck
Material Preparation Workshop
1.5 Ton 2 Ton Double Deep Reach Truck
Structure Workshop
1.5 Ton 2 Ton Double Deep Reach Truck
Painting Workshop
1.5 Ton 2 Ton Double Deep Reach Truck
Assembly Workshop
