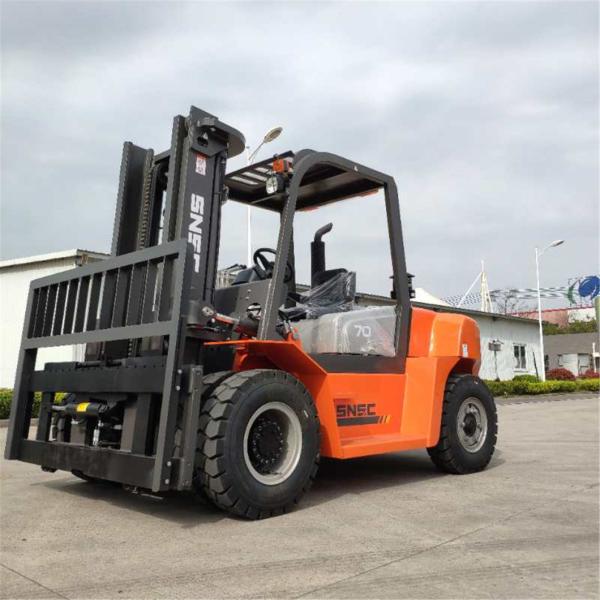

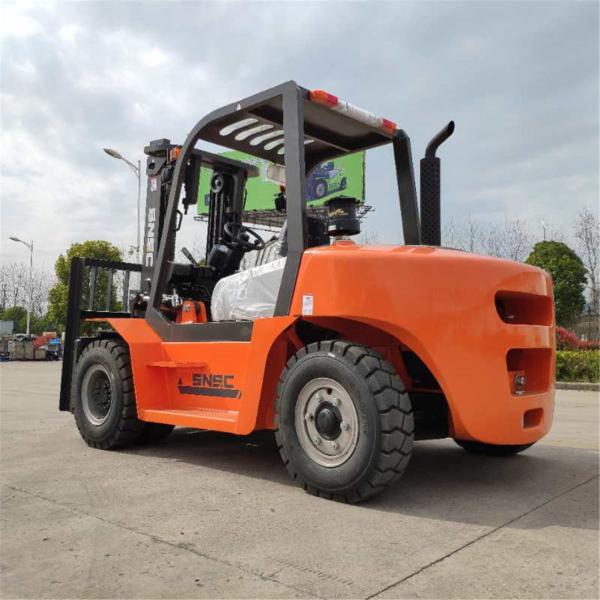

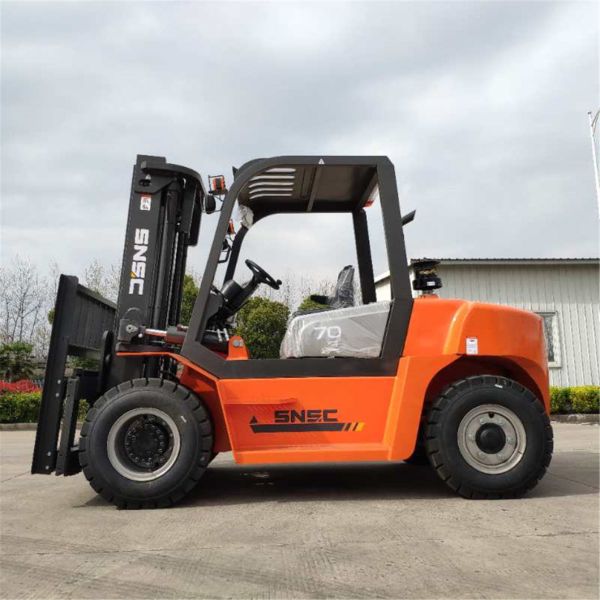

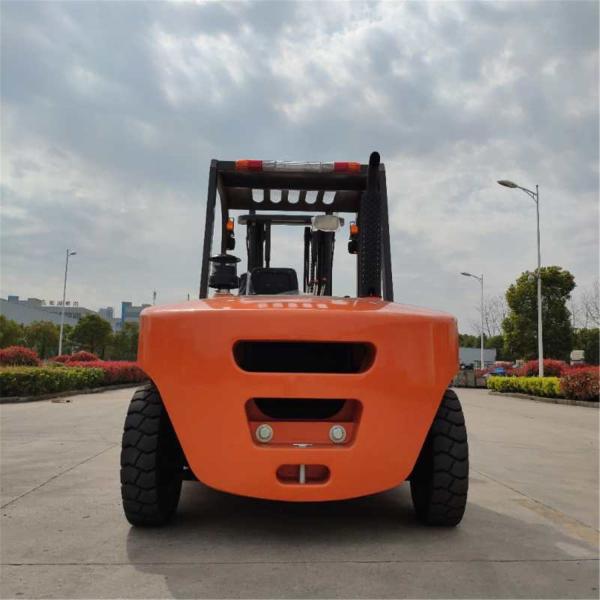

FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
FD70 7 Ton Diesel Engine Forklifter
Specifications
Place of Origin :
china
Brand Name :
snsc
Certification :
CE/ISO
MOQ :
1 unit
Price :
negotiable
Packaging Details :
shipped by container
Delivery Time :
30-45 Days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
12000 Units/Year
Model NO. :
FD70
Lift height :
3000~5000mm
Condition :
New
Engine :
Optional Mitsubishi Engine
Cabin :
with A/C and Heater
Hydraulic Pumps :
Shimadzu Made in Japan
Multitandem Valves :
Shimadzu Made in Japan
Transmission :
Automatic Japan Tcm Technology
Mast :
3m to 7m Reach
Tires :
Pneumatic or Solid
Color :
Customize for You
Attachment :
VIP Solution
Lamp :
LED Lights
Transport Package :
Nude Packaging
Specification :
3466*3335*2500mm
Trademark :
SNSC
Origin :
China(Mainland)
HS Code :
8427209000
Cab Location :
Adjustable
Type :
Ordinary Combustion Forklift
Power :
Diesel Engine
Load Capacity :
1T - 5T
Fuel :
Diesel
Load center :
500mm
Description
Japan Diesel Engine Forklift 7 Ton Forklifter

FD70 7 Ton Diesel Engine Forklifter


Specifications of 7T Diesel Forklift
No. Specifications Unit FD70
1 Characteristics Power Diesel
2 Rated Capacity kg 7000
3 Center of load mm 600
4 Lifting height mm 3000
5 Free lifting height mm 218
6 Forks L×W×H mm 1220×150×70
7 Tilt Forward/Backward . 6/12
8 Min.turning radius mm 3370
9 Min.ground clearance(Mast) mm 200
10 Overhead guard height mm 2460
11 Height from seat to overhead guard mm 1050
12 Front overhang mm 625
13 Perf Max.traveling speed(loaded) km/h 26
14 Max.lifting speed(loaded/empty) mm/s 370/450
15 Drawbar pull/Gradeability kN/% 51.4/20
16 Dimensions Overall length (without fork) mm 3466
17 Overall width mm 2235
18 Mast lowered height mm 2500
19 Mast extended height mm 4417
20 Chassis Tire Front 8.25-15-14PR
21 Rear 8.25-15-14PR
22 Wheelbase mm 2250
23 Tread width Front/Rear mm 1470/1700
24 Curb weight None-load kg 9340
25 Powertrain Battery Voltage/Capacity V/Ah (12/90)x2
26 Engine Model Chaochai CY6102
27 Rated power kw/r.p.m 81/2500
28 Rated torque Nm/r.p.m 353/1700
29 Cylinder amount 6
30 Bore×Stroke mm 102×118
31 Displacement L 5.785
32 Fuel tank L 140
33 Transmission 2/2 Powershift
34 Working pressure MPa 20

FD70 7 Ton Diesel Engine Forklifter


Search Mariah Tang Forklift on YouTube, Many VIDEO for your review.
Call me 0086 159 6606 0602
Mariah Tang on Google+ Facebook, Linkedin, VK...Social Network Site (SNS)

Common Optionals:
Japan engine;Side shifter,Solid tire,fork extension;Cab,AC,Fork positioner.

Container Package Method:
7-8ton diesel forklift package:40HC container can hold 2 units;

FD70 7 Ton Diesel Engine Forklifter

Spare Parts With Delivery:
To guarantee every diesel forklift customer has a good forklift using feeling and longer using life, we send some spare parts for free with every forklift delivery, eg: filters, seal and related
In future, if customers need any spare parts, we will give reflection within 24hours, so please be relax, we will never leave our customers in anxious situation, especially spare parts

SNSC Forklift Range:
1.Diesel Forklift Truck Range from 1 to 10tons;??? (FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2.Electric Forklift Truck Range from 1.5 to 3.5tons; (FB15, FB20, FB25, FB30, FB35)
3.LPG&Gasoline Forklifts Range from 1.5 to 3.5tons; (FL15, FL20, FL25, FL30, FL35)
4.Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck / Stacker ; (YB16,YB20,DB16,DB20)


VIDEO Mariah Tang Forklift on YouTube
Mariah Tang Forklift on Facebook YouTube Linkedin

Company Introduction:

We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
