5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
Specifications
Model NO. :
FD70
Lift height :
3000~5000mm
Condition :
New
Free Lifting Height :
218mm
Fork Size :
1220*150*70mm
Mast Tilt Angle :
6/12 Degree
Min. Ground Clearance :
200mm
Overhead Guard Height :
2460mm
Front Overhang :
625mm
Height From Seat to Overhead Guard :
1050mm
Max. Traveling Speed :
26km/H
Transport Package :
Nude Package
Trademark :
SNSC
Origin :
China
HS Code :
84270290
Supply Ability :
500/Months
Cab Location :
Not Adjustable
Type :
Diesel Forklift
Power :
Diesel Engine
Load Capacity :
5T - 10T
Fuel :
Diesel
Load center :
600
Customization :
Available | Customized Request
Place of Origin :
china
Brand Name :
snsc
Certification :
CE/ISO
MOQ :
1 unit
Price :
negotiable
Packaging Details :
shipped by container
Delivery Time :
30-45 Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Description
7Ton Diesel Forklift Truck Container Lift Truck
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc

Details:

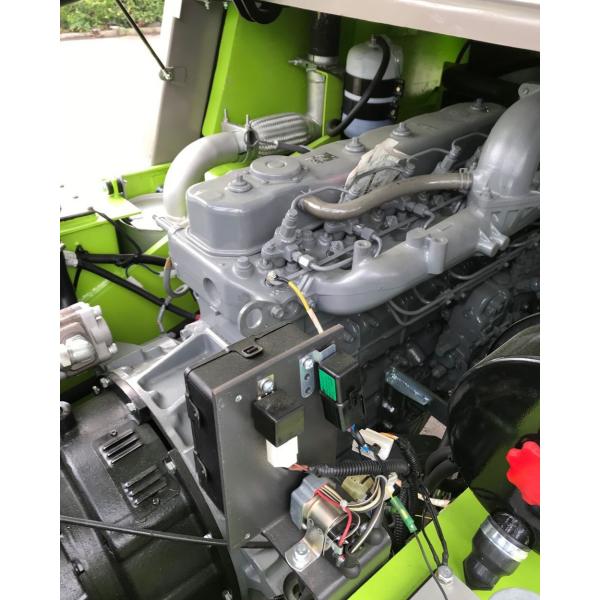

Japan Mitsubishi Engine;
Double air filter and high exhaust
2-stage 3m mast;
Electric Hydraulic Automatic Transmission by TCM technology;
Lamp protection;
Triangle wide view back mirror;
Waterproof overhead guard;
Backing buzzer and warning light;
Double Front Pneumatic Tires

Common Options:
Solid Tires;
3m-7m duplex or triplex full free mast;
Attachments such as paper roll clamp, block clamp, bale clamp, bucket, etc;
Fully closed cabin with heater or air conditioner;
Side shifter and fork positioner;
Fully suspension luxury seat;
Customized color except green, red and orange.

Specifications:
Specifications Unit FD70
Features Power type Diesel
Rated load kg 7000
Load center mm 600
Lifting height mm 3000
Free lifting height mm 218
Fork size L*W*T mm 1220*150*70
Mast tilt angle Front/Rear . 6/12
Min. turning radius mm 3370
Min.ground clearance Mast mm 200
Overhead guard height mm 2460
Front overhang mm 625
Performance Max. travelling speed loaded km/h 26
Max. lifting speed loaded/empty mm/s 370/450
Max. traction force loaded KN 51.4
Max. climbing ability % 20
Dimension Overall length without fork mm 3466
Overall width mm 2235
Mast lowered height mm 2500
Mast extended height mm 4417
Chassis Tyre Front 8.25-15-14PR
Rear 8.25-15-14PR
Wheel base mm 2250
Wheel thread Front/Rear mm 1470/1700
Weight(without load) kg 9340
Powertrain Battery V/AH (12/90)×2
Engine Model XC6110
Rated power km/r.p.m 81/2500
Rated torque Nm/r.p.m 353/1700
No. cylinder 6
Bore x stroke mm 102×118
Displacement L 5.785
Fuel tank capacity L 140
Transmission/shift 1/1 automatic transmission
Operation pressure Mpa 20

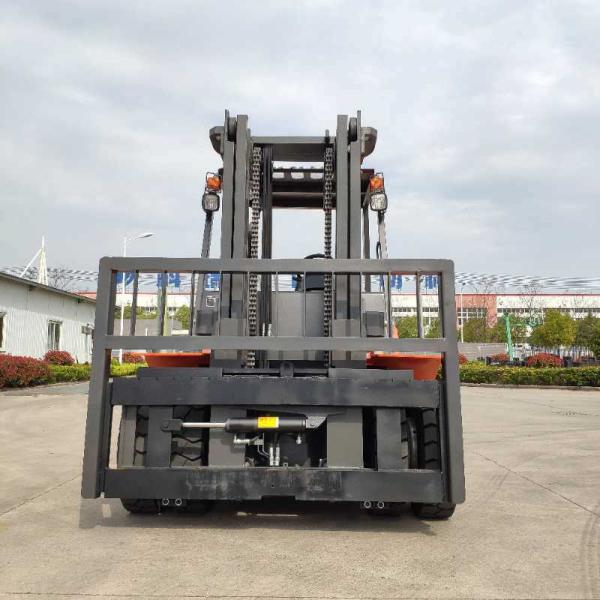

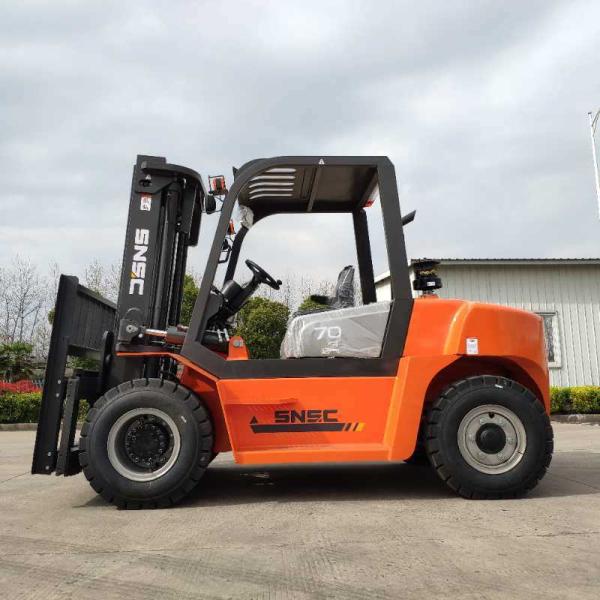

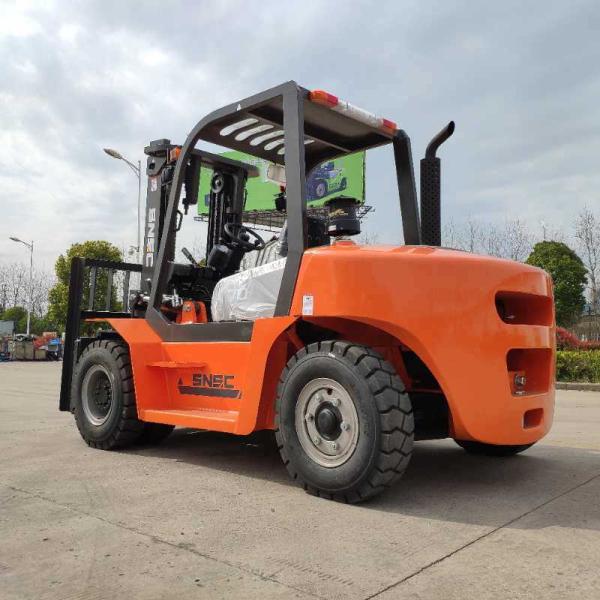

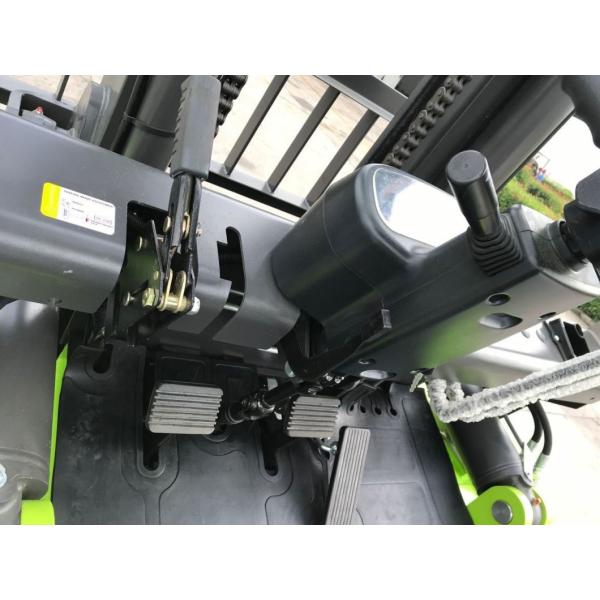

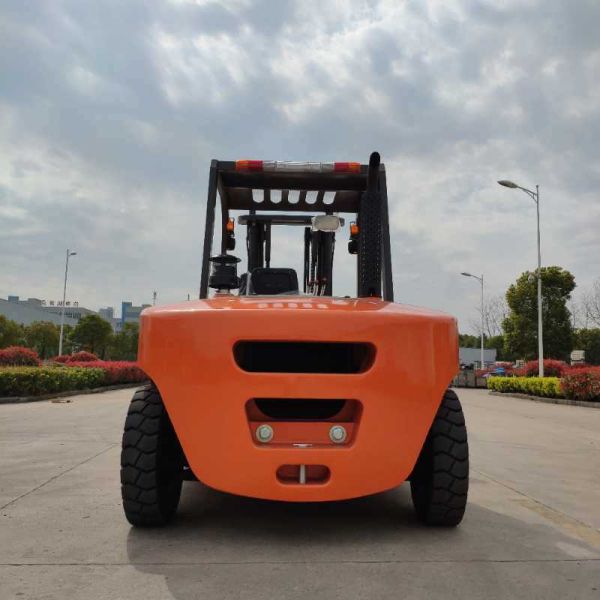

Details of 7Ton Diesel Forklift FD70
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
7ton Diesel Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
5T 10T Load Capacity Diesel Forklift Truck with 2460mm Overhead Guard Height from Snsc
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
