X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
Specifications
Supply Ability :
5000
Place of Origin :
China
Model Number :
X-Series 7.1.4
Payment Terms :
T/T
Brand Name :
Snail Power
Delivery Time :
5-8 working days
MOQ :
2
Packaging Details :
Snail Power Package
Description
Snail Power X Series Custom Professional Home Theater 7.1.4

Snail Power Professional X Series represents the pinnacle of innovation and acoustic excellence. Featuring X8 professional horn in-wall main speakers, X6 professional horn in-ceiling speakers, X6 Max near-field high-power coaxial speakers, and ultra-high-power subwoofers, it delivers breathtaking sound with precision and depth. Powered by Snail's latest DSP amplifiers (DP4000, DP1600), the MU-1 8K Ultra HD amplifier, and the DG-1 preamplifier , the system creates a truly immersive, theater-grade audio environment—seamlessly blending professional cinema performance with the comfort and elegance of a modern living space.

X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic

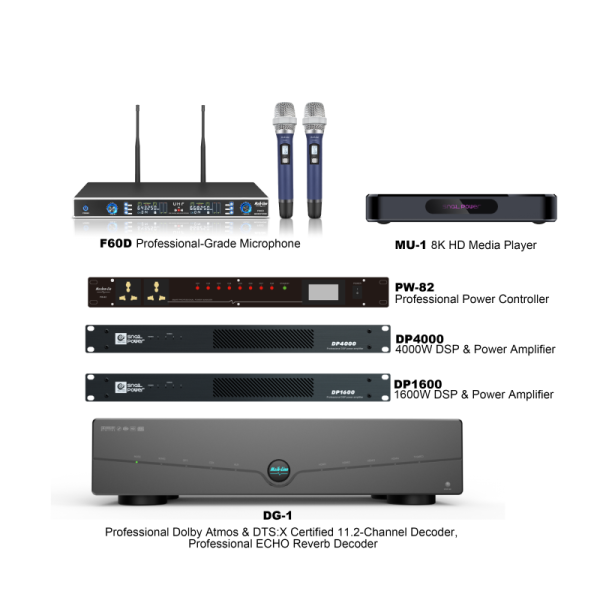

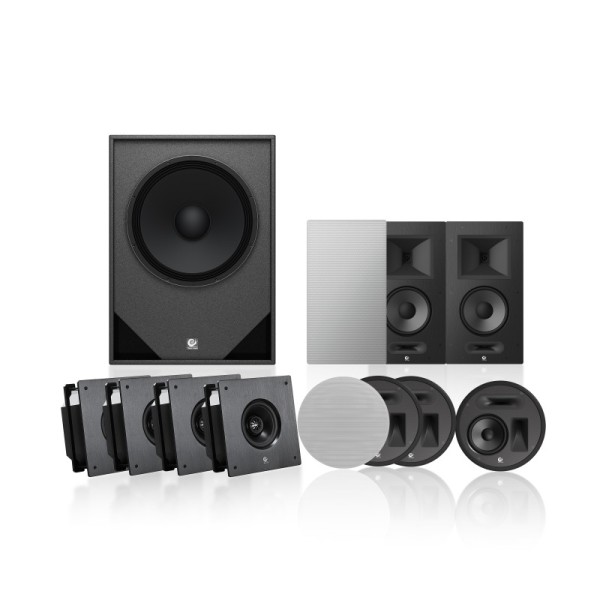

Included Products
X8: 600W Main Speaker × 3 X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X6max: 400W Surround Speaker × 4
X6: 400W Ceiling Speaker
X118: 18 inch 2000W passive Subwoofer
DP4000 and DP1600: DSP Amplifier
DG-1: 11.2 Preamp decoder
F60D: Professional Microphone
PW-82: Sequential Power Controller
MU-1: 8K Media Player
X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB DynamicX-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB DynamicX-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB DynamicX-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB DynamicX-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X8 Professional Horn Speaker

The X8 combines an aluminum low-frequency driver with a compression horn tweeter, precisely tuned from 110 dB to a balanced 91 dB sound pressure—delivering 4-6× greater dynamic range than typical consumer speakers. Its aluminum woofer ensures low distortion and wide frequency response, while the titanium diaphragm produces detailed, luxurious highs. Crafted with a wooden cabinet and aluminum front panel, the ultra-slim 10 cm design achieves powerful 110 dB dynamics, making it perfect for both main and surround speaker applications in modern custom cinemas.

X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X8 Specifications
Driver: 18" Cerametallic Woofer + 11" Titanium dome compression driver mated to 110°H×90°V Tractrix Horn
Frequency Response: 40Hz - 20KHz (+/- 3dB)
Power Handling (Cont/Peak): 150W/600W
Sensitivity: 91dB/W/m 2 frequency division
Avg. Max Output @1m: 116dB
Impedance: 8 Ohms
Enclosure Type: Patent inverted box bass, horn compression technology
Dimensions: 20.7" (526mm)H × 11.4" (290mm)W × 4.0" (103mm)D
Hole Dimensions: 19.32" (491mm)H × 10.04" (255mm)W
Mounting Depth: 3.9" (99mm)
X6max Professional Coaxial Speaker

Designed with a lotus-style coaxial structure, the X6 Max delivers exceptional near-field performance and precise phase imaging—offering crystal-clear sound even within 1-2 meters. Featuring a titanium dome diaphragm for rich, detailed highs and a dynamic range up to four times greater than standard speakers, it effortlessly reaches 110 dB output. With an ultra-slim 11 cm installation depth, the X6 Max is perfectly suited for both main channels and surround applications, bringing powerful, immersive sound to any custom home cinema.

X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X6max Specifications
Drive Unit: 1×16" LF Driver, 1×1" HF compression driver
Frequency Response Range: 70Hz-22KHz (±3dB)
Power Max: 400W
Sensitivity: 91dB/8W/
Avg. Max Output: 115dB
Input Impedance: 8Ω
Net Weight: 4KG (single)
Product dimensions: 233×233×115mm
Hole dimensions: 208×208mm, Depth>110mm
X6 Professional In-Ceiling Speaker

The X6 features a professional compression horn tweeter, finely tuned from 110 dB to an average of 90 dB, delivering 4-6× the dynamic power of standard consumer speakers. Its titanium diaphragm produces luxurious, detailed highs, while Snail's horn technology ensures precise control and powerful output. Achieving up to 110 dB in an ultra-slim 13 cm design, the X6 is ideal for ceiling channels, creating a truly immersive 3D sound experience for custom home theaters.

X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
X6 Specifications
Driver: 1×5.75" Cerametallic Woofer + 1×1" Titanium dome compression driver mated to 65°H×50°V Horn, Asymmetric directional projection
Frequency Response: 60Hz~20KHz (+/-3dB)
Power Handling (Cont/Peak): 100W/400W
Sensitivity: 90dB/W/m, 2 frequency division
Avg. Max Output @1m: 114dB
Impedance: 8 Ohms
Enclosure Type: Patent bass enhancement technology, horn compression technology
Dimensions: Ø11" (280mm) × 5.2" (132mm)H
Hole Dimensions: Ø9.9" (252mm)
Mounting Depth: 5" (127mm)
Net weight: 8.8 lbs. (4kg)
Finish: Aluminum panel + White paintable grill
Additional Components
F60D Microphone
DSP & Power Amplifier Specifications
DSP Operating Frequency Response: 20Hz - 20KHz ±1dB
Total Harmonic Distortion (THD): 0.01% (at 1W)
PEAK RMS Power: 4 × 200W / 8Ω 4 × 400W / 4Ω
Bridged Mode Power: 2 × 2500W / 8Ω
Mains AC Input Voltage: 90V - 265V ±10% @ 50/60Hz
Slew Rate: 50V/ns
Damping Factor: 10000 @ 100Hz		 X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
Mu-1 8K Media Player
Powered by an Allwinner quad-core 64-bit ARM Cortex-A53 processor, the device delivers efficient performance with low heat generation and minimal power consumption, ensuring stable and silent operation even during long use. It supports Gigabit Ethernet, 8K decoding, Bluetooth 5G, and dual-band 2.4G/5G Wi-Fi for faster, more reliable connectivity—easily handling HD video playback and gaming. Multiple ports, including HDMI, USB 3.0, Type-C, RJ45, and RS232/485, enable flexible expansion with peripherals such as USB drives, hard disks, and keyboards. Running on Android 14, it offers a clean, intuitive interface in a sleek, compact design that blends aesthetics with practicality. All materials comply with ROHS standards.		 X-Series 7.1.4 Custom Home Theater System X8 Horn Speaker 110dB Dynamic
