High Precision SMT Soldering Machine 8 Zone Lead Free Siemens PLC PCB Welding
High Precision SMT Soldering Machine 8 Zone Lead Free Siemens PLC PCB Welding
High Precision SMT Soldering Machine 8 Zone Lead Free Siemens PLC PCB Welding
High Precision SMT Soldering Machine 8 Zone Lead Free Siemens PLC PCB Welding
High Precision SMT Soldering Machine 8 Zone Lead Free Siemens PLC PCB Welding
High Precision SMT Soldering Machine 8 Zone Lead Free Siemens PLC PCB Welding
Specifications
Brand Name :
JAGUAR
Model Number :
R8
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1 Set
Price :
To be negotiate
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets per Month
Delivery Time :
8-15 working days
Packaging Details :
Vacuum Inner Packing and Plywood Outter Packing
Name :
Reflow Soldering
Function :
PCB Welding
Application :
SMT SMD LED
Application 1 :
Solar PV module
Heating zone no. :
Up 8 Bottom 8
Control :
PID close loop control + SSR Driving
Main parts :
Furnace
PLC :
Siemens
Conveyor :
Mesh and Chain
Frequency converter :
Delta
Heating mode :
Hot air Oxygen can optional Nitrogen
Cooling zone :
Up 3 Bottom 3
PCB width :
50-450mm
Component Clearance :
Up 30mm Bottom 35mm
Description

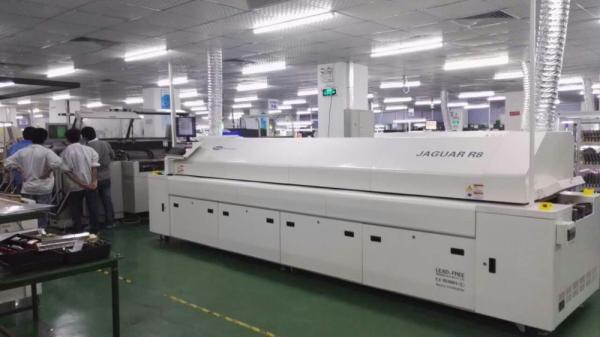

JAGUAR High End 8 Zones Lead Free Hot Air Reflow Oven

Model No.: R8

JAGUAR R High-end series was designed for high standard applications, such as Semi-conductor, automobile, military related & etc…, which provides optimized lead-free processing, with high precision of heating and cooling, low power & nitrogen consumption, R series is favored by senior application customers.

Specification:

Model JAGUAR R8

Heating System

 Number of heating zones Top 8/Bottom8
Heating passage 3121mm
Heating style Top: hot air; bottom: hot air
Cooling style Force air

Conveyor System

 Max. Width of PCB 450mm
Mesh belt width 500mm
Conveyor Direction L→R(or R→L)
Process Height 900±20mm
Conveyor type Mesh(Mesh+Rail is optional)
Conveyor speed 0-2000mm/min
Fixed track Front track fixed(option: rear track fixed)

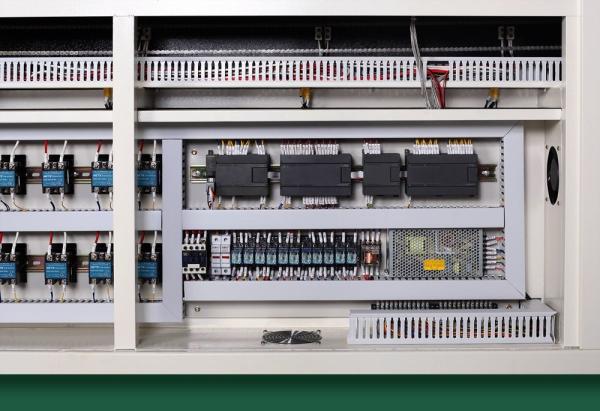

Control system

 Power supply 3 phase 380V 50/60Hz
Total power consumption 32kw
Startup power consumption 30kw
Steady consumption 6-9KW
Ramp Up time About 20 mins
Temp. setpoint Room temperature-300℃
Temp. control method PID close loop control + SSR driving
Temp. control precision ±1℃
Temp. deviation on PCB ±2℃
Data storage

Process Data and status storage

(80 GB)
Nozzle plate 8mm Thick Aluminum Plate Copper
Abnormal Alarm Abnormal temp. (overtemp/low temp.)
Board dropped alarm Tower light: Amber-warning, Green-normal, Red-abnormal

General

 Dimension(L*W*H) 5700×1350×1490mm
Weight 1950KG
Color Computer grey

About Us

JAGUAR AUTOMATION is a high-tech international company, integrated research develope and manufacture of Lead-free Reflow Oven, Lead-free Wave Soldering, High Speed Glue Dispenser and Solder Paste Printer, we can provide turnkey solution for SMT and DIP production line.

High Precision SMT Soldering Machine 8 Zone Lead Free Siemens PLC PCB Welding

Basic on our standard manufacture, and strong customize design ability, JAGUAR AUTOMATION already formed abvious advantages, such as Fast technology upgrade, High production efficiency, Low maintenance and High quality service to outand the market.

High Precision SMT Soldering Machine 8 Zone Lead Free Siemens PLC PCB Welding

Ensure machine's good operation is our duty, machine runs well is our proud. through years of hard work, our company wins a lot of good reputation, we become long-term partner to many famous company, for example: LED: FSL, OPPLE, Home Appliance: SKYWORTH, Midea, Communication: HUAWEI, Auto Electronics: BYD and so on.

High Precision SMT Soldering Machine 8 Zone Lead Free Siemens PLC PCB Welding

If you have any inquiry, please feel free to contact me!

Thanks & Best Regards,
Nona Xiao
Jaguar Automation
14th Building,Furong Industrial Zone,Xinqiao Street, Shajing, Bao'an District, Shenzhen,China
Ph: 86-755-23316315
Mob: 86-13590488442
Fax: 86-755-29497125
E: sales04@jaguar-ele.com

Web: www.jaguar-ele.cn www.jaguar-ele.net
