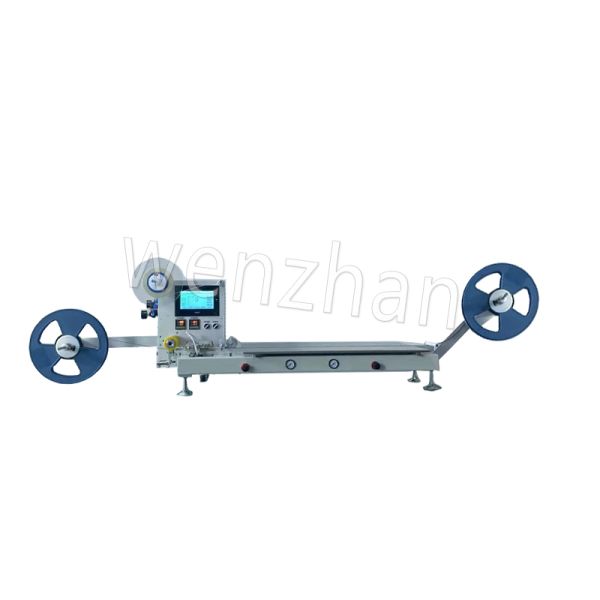

Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
Specifications
Brand Name :
wz
Model Number :
wz-0312
Place of Origin :
China
MOQ :
1pcs
Price :
2205$
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000
Delivery Time :
3-5 work days
Packaging Details :
carton box
Product Name :
Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
MODEL :
wz-0312
Dimensions :
1500×430×720(mm)
Power source :
300W
Air source :
3.0-7.0kg/cm²
Rotation Speed :
350RPM/Min
Packing speed :
3000-7000pcs/hour
Packing width :
8-72mm tape,all materail tape
Weight :
Approx. 54KGS
Description
Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine

A semi-automatic carrier taping machine is a device used to arrange electronic components at fixed intervals and place them into a carrier tape. The components are then sealed with a cover tape and wound into reels. This type of packaging is widely used in the electronics manufacturing industry to enable automatic feeding for SMT (Surface Mount Technology) machines.

Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
Product Name Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
MODEL wz-0312
Dimensions 1500*430*720(mm)
Power source AC 220V/110V 50/60HZ
Air source 3.0-7.0kg/cm²
Rotation Speed 350RPM/Min
Power source 300W
Packing speed 3000-7000pcs/hour
Packing width 8-72mm tape,all materail tape
Weight Approx. 54KGS
Semi-automatic carrier taping machines are mainly used in the following fields:
  • Electronic Component Manufacturing
    Used for taping and packaging components such as resistors, capacitors, diodes, transistors, and IC chips.
  • SMT Assembly Factories
    Used to re-tape loose or tube-packed components so they can be automatically fed into SMT pick-and-place machines.
  • Electronic Component Distributors
    Used to split large reels of components into smaller quantities and repackage them according to customer requirements.
  • LED Manufacturing Industry
    Commonly used for taping LED chips such as 3528, 5050, and 2835 packages.
Mini Semi-auto Carrier Tape SMD Packing Machine SMD Components Taping Packing Machine SMD Taping machine
The working process of a semi-automatic carrier taping machine generally includes the following steps:
  1. Feeding
    Electronic components are manually loaded or fed into the machine through devices such as a vibrating feeder.
  2. Positioning
    The machine aligns and positions the components to ensure they enter the correct pockets of the carrier tape.
  3. Placing into Carrier Tape
    The components are inserted into the pockets of the carrier tape at fixed intervals.

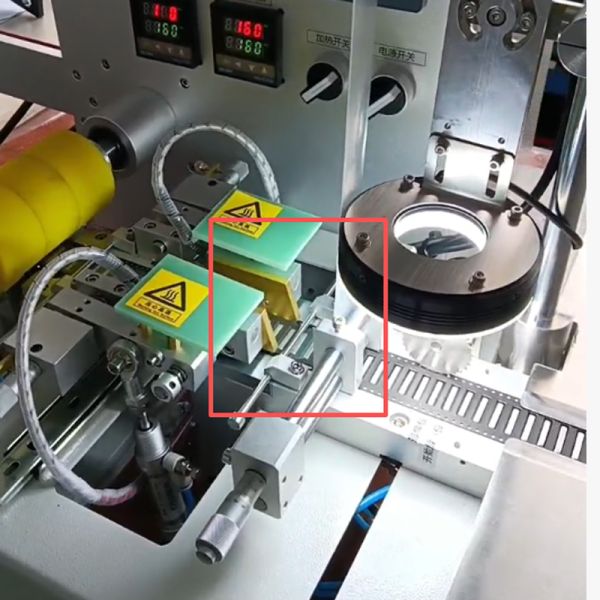

  4. Cover Taping / Sealing
    A cover tape is applied and sealed onto the carrier tape, usually through heat sealing or pressure sealing, to secure the components.
  5. Reeling
    The finished taped components are wound onto reels for storage, transportation, and use in SMT production lines.
