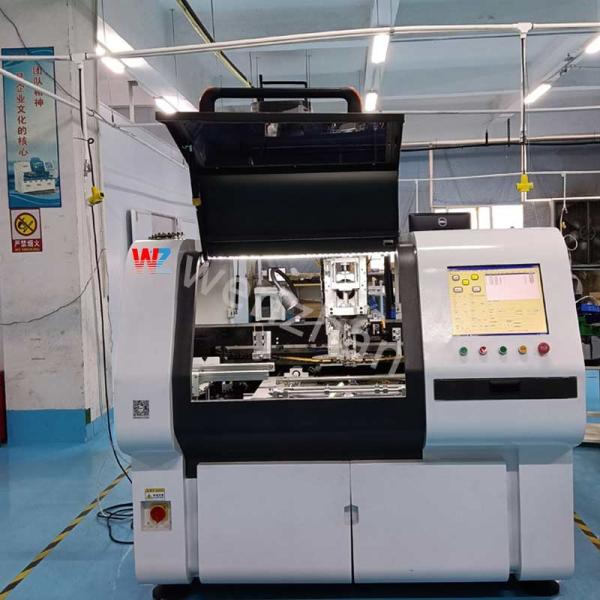

High Speed Terminal Insertion Plug in THT Pick and Place Machine Automatic Radial Insertion Machine

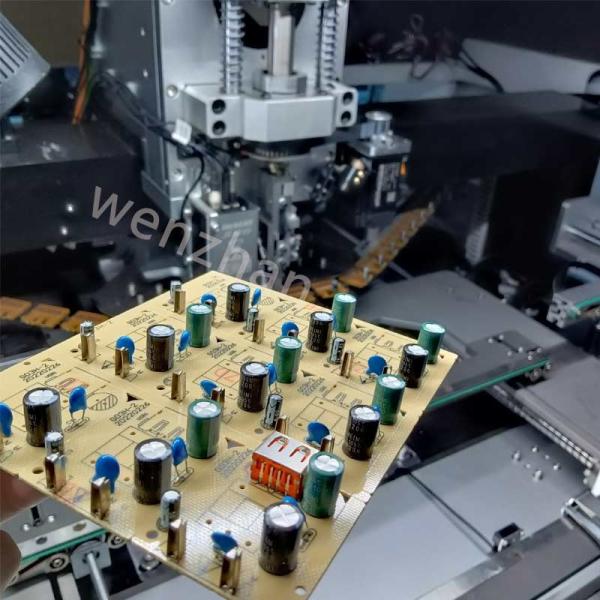

The Automatic Radial Insertion Machine is a specialized machine used in the assembly of electronic components onto printed circuit boards (PCBs). This machine is designed to automate the insertion of radial lead components, such as resistors, capacitors, and diodes, into the PCB holes.

Key features and functions of the Automatic Radial Insertion Machine include:

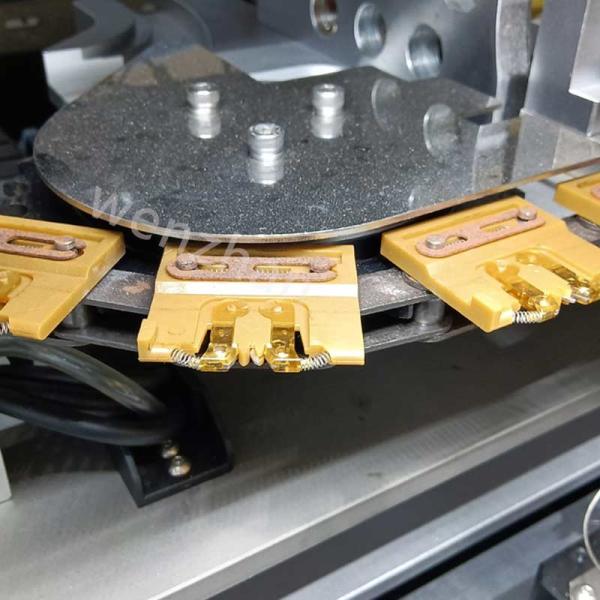

• Automatic component feeding: The machine is equipped with a component feeding system that automatically supplies radial lead components to the insertion head, eliminating the need for manual loading.
• High-speed insertion: The machine is capable of inserting components into PCB holes at a high speed, increasing production efficiency and throughput.
• Adjustable insertion depth: The machine allows for adjustable insertion depth settings, ensuring that components are inserted to the correct height and securely fixed in place on the PCB.
• Multiple insertion heads: Some models of the Automatic Radial Insertion Machine come with multiple insertion heads, allowing for simultaneous insertion of multiple components, further enhancing productivity.
• User-friendly interface: The machine features an intuitive interface that enables operators to easily set up insertion parameters, monitor the insertion process, and make adjustments as needed.

Advantages of using automatic plug-in device:

• Increase the installation density;
• Improve the anti vibration ability;
• Improve the characteristics;
• Improve labor efficiency;
• Reduce production costs.

smt Insertion Machine

Neighbor components parallel distance E(pitch):

5.0mm

Tape width:

52mm

Max Component Body Length:

C=16mm , Resistor:1/8W-2W

Axial Lead Component Kind:

Diode,Resistor,Capacitor and so on.

Max body diameter D:

5.0mm

Insertion Machine

To use the Automatic Radial Insertion Machine, operators first need to set up the machine by inputting the component insertion parameters, such as component type, lead pitch, insertion depth, and insertion speed. The machine is then loaded with the PCBs to be assembled and the radial lead components to be inserted.

Operators need to ensure that the machine is properly calibrated and that the components are fed correctly into the insertion head. During operation, operators monitor the insertion process, ensuring that components are inserted accurately and securely into the PCB holes.

In summary, the Automatic Radial Insertion Machine is a valuable tool for automating the insertion of radial lead components in PCB assembly processes. Its automatic feeding system, high-speed insertion capabilities, adjustable insertion depth, multiple insertion heads, and user-friendly interface make it an efficient and reliable solution for various assembly applications.
