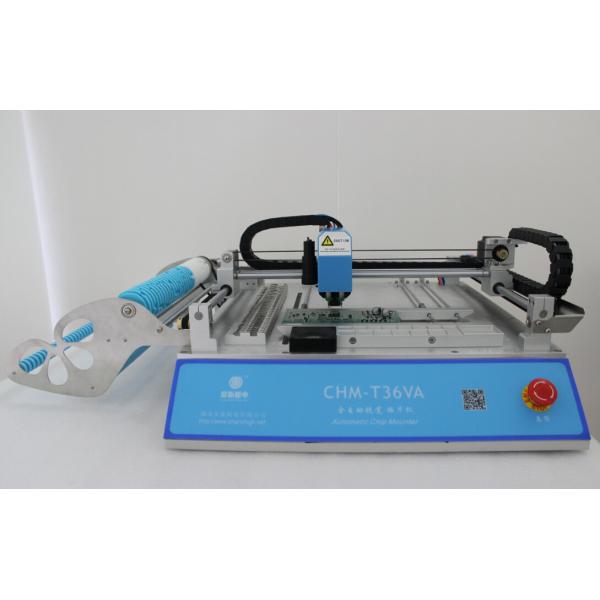

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine
Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine
Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine
Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine
Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine
Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine
Specifications
Brand Name :
Charmhigh
Model Number :
CHMT36VA
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD $3300 per set
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
1-3 working days
Packaging Details :
Standard export woden box
Feeder :
1- 29pcs(8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs)
Place head :
2 heads
Type of nozzles :
4 juki nozzles
accuracy :
0.025mm
with Vision camera :
Yes
Need externel PC :
Yes
PCB Clamping area :
10mm*10mm - 355mm*355mm
Description

Vision system + Externel PC with Win7 CHMT36VA

SMT Pick And Place Machine Ecnomic Model​

CCD system​ Place IC , English version, 220v 110v

CHMT36VA working video on Youtube:
https://www.youtube.com/watch?v=x2VVs3XdTnQ​

Specifications:

Model CHM-T36VA
PCB area 10mm*10mm - 355mm*355mm
X Y axis Travel 420*460mm
Z axis moving range 15mm
Placement heads 2pcs
Feeders

8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs,

Front IC tray=14pcs, user-defined IC tray
Vision system Dual cameras(up & down cameras)
Drive Closed-loop control stepper servo drive system, make sure never lose step
Z axis self-return detection Yes, prevent nozzles breaking
Pull pin self-return Yes
Leakage of material detection method Vacuum detection, vision detection
Mounting speed 4000cph (vision off); 2800cph (vision on)
Mounting precision ±0.025mm
Components 0402-5050,SOP,QFN,(tape width: 8MM,12MM,16MM,24MM)
Machine dimension L 960mm * W 705mm * H 335mm
Vacuum pump -92KPA (2pcs,build-in, mute type)
External air source No need (machine build-in mute vacuum pump 2pcs)
External PC Yes (software compatible with windows7)
Voltage 220V (110V),50Hz
Net weight 65kg
Gross weight 70kg / 107*78*50cm / 0.41m³

Description:

CHMT36VA is an economical vision pick and place machine which need connect externel PC with windows 7 system. This is reliable, small platform machine comes with advance vision system, closed-loop control, 29pcs material stacks. High precision and easy operation software. You just need to prepare a computer which has USB port. It compatible with all different kinds of compoments such as 0402,-5050...LED, resistance,capacitance,diode,triode, SOP,QFN,TQFP.. it is very suitable for prototyping, small bacthes production.

Applications industry:

Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

Detail Real pictures: (100% Real)

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

CHMT36VA can mount IC tray:

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

CHMT36VA X,Y Axis installed encoder, closed-loop control, never lose steps:

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

Vision up & down two camera intalled, high Identify Speed:

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

4pcs high precision Juki Nozzles: 503 504 505 506

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

Placing samples:

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

Packing:

Vision system + Externel PC with Windows7 CHMT36VA SMT Desktop Pick And Place Machine

Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service. Each machine 100% test well then sent out.
