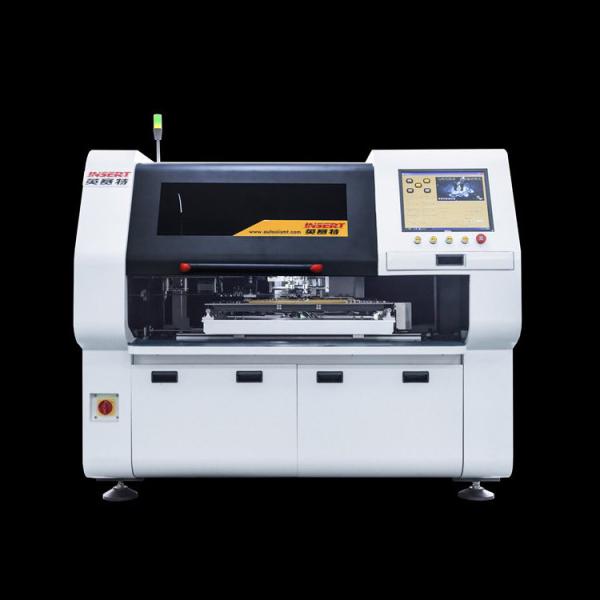

Vertical Automatic Abnormal Componenets Insertion Machine IST-3800 With Electronic THT Plug-in Pick And Place Equipment For PCBA Production


Product Introduction

Vertical insertion machine is a kind of automatic equipment in the production of electronic equipment. It is mainly used to insert electronic component or connectors into printed circuit board (PCB)
Working principle: the vertical insertion machine is driven by servo motor to realize 360 ° insertion angle, which can carry out high-speed and high-density plug-in. It is equipped with automatic detection interpolation function, can be inserted in the error automatically detect and interpolation.

In addition, the vertical insert machine machine also has automatic up and down board track system, can cooperate with the up and down board machine to achieve automatic process.


Product Specification

IST-3800
Theoretical velocity 24000 parts per hour
Plug-in direction 0-360 degree increment 1 degree
Lead span Double spacing 2.5/3.5/5.0/8.5 2.5/5.0/7.5/10.0 optional
Substrate size 390mm*350mm(Larger sizes can be customized)
Substrate thickness 0.79-2.36mm
Component specification The maximum height is 23mm and the maximum diameter is 13mm
Component type Capacitor/transistor/transistor/LED lamp/keystroke switch/resistor /coil/potentiometer /
Length of component lead shearing foot 1.2mm-2.2mm(adjustable)
Component lead bend foot angle 5-35 degrees(adjustable)
Number of material stations 8/10/12/20/40(optional)
Equipment shape size(lengthX width X height) 1800mmx 1700mmx 1900mm
Material station size 1700*1450*1400(without independent material stations on 8/10/12)
Machine weight 2100KG
Use power/power 50/60HZ,2.0KVA1.6KW(节能型energy-saving type)
System protection Built-in soft protection
Use voltage/gas consumption 0.6-0.8Mpa/0.3 cubic/minute
Use of ambient temperature 5-25 degrees
Machine noise 65 decibels
Hole position correction mode Machinevision system,multi-point MARK vision correction
Drive system AC servo,AC motor
Data input mode USB interface input(EXCEL document fomat)
Control system Chinese operating interface (Wn7 system control platfom)liquid crystal display
Element density 1mm spacing between component bodies,distance between patch elements and holes should not be less than 3mm
Circuit board transportation mode Automatic upper and lower board left to right to left
Display Front and rear


Product details:

Min tim capactor,roaina rosistance,Tripole tube,Fiter,connector, resistance network,Resistance,Electrolytic,capacitor,Ceramie capacitor,LED
THT Abnormal Componenets Insertion Machine IST-3800 DIP Equipment PCBA Production

Applications:

Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
