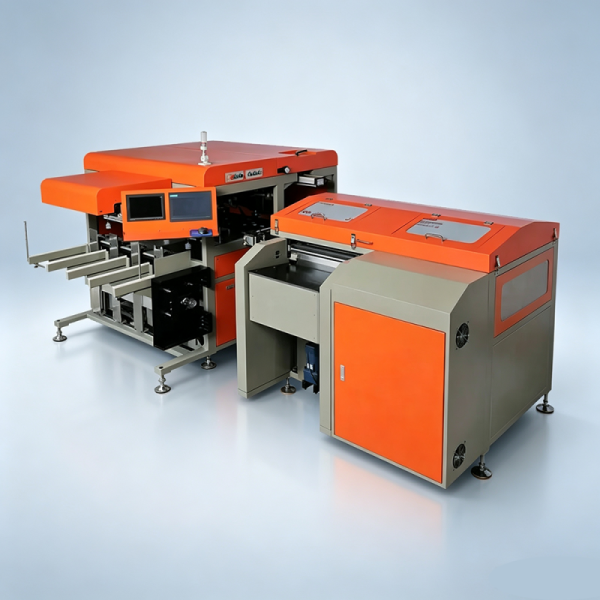

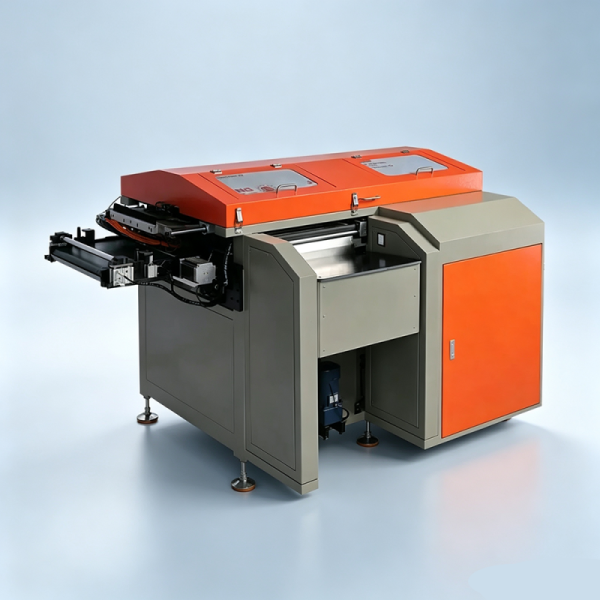

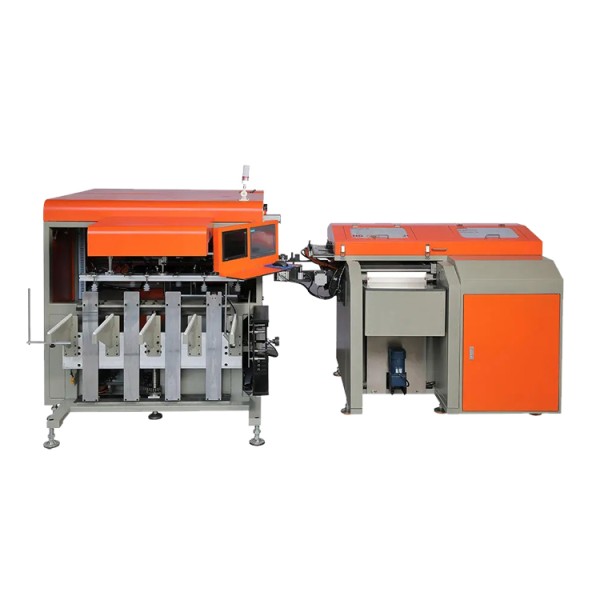

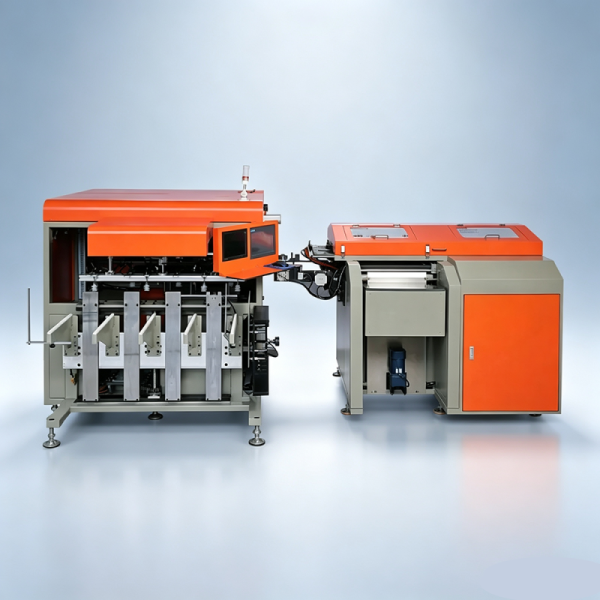

Our Automatic PCB Punching Machine Robot Arm is a high-performance automated loading and unloading solution designed specifically for PCB punching, stamping, and depaneling production lines. Combining advanced CCD vision positioning technology with precision servo-driven multi-axis motion control, this robotic arm system delivers seamless, high-speed material handling that dramatically boosts production efficiency while reducing labor costs.
Available in two configurations — MDC-650 and MDC-1250 — to match different board size requirements, our robot arm integrates flawlessly with PCB punching presses, providing fully automatic feeding, positioning, and receiving capabilities. Built for 24/7 continuous operation, it is the ideal automation upgrade for modern PCB manufacturing facilities.

• 4-axis / 6-axis robotic arm configuration with imported high-performance servo motors
• Professional motion controller ensures high-speed, precise, and stable operation
• Continuous 24-hour uninterrupted operation capability
• Vacuum suction gripper with customizable suction cup size and density for various PCB sizes and weights

• High-resolution CCD camera system with automatic reference point capture
• Real-time visual alignment automatically adjusts and captures targets
• Offset error controlled within ±0.2mm for consistent positioning accuracy
• Eliminates manual alignment errors and ensures perfect punching registration

• Fully automatic feeder with automatic receiving rack — one operator can manage multiple machines simultaneously
• Punching speed up to 900–1,000 boards per hour (MDC-650 model)
• Feeding cycle rate exceeding 15 cycles per minute
• Continuous strip punching: 2–6 pieces (MDC-650) / 2–10 pieces (MDC-1250) with consistent spacing

• Industrial-grade PLC control system with user-friendly HMI touchscreen interface
• Open programmable technology with translation-style motion setting
• Customizable displacement data and production parameters
• Quick recipe setup and save/recall function for different board types

• Three-module configuration: Board Delivery Host + Receiving Board Host + Circuit Board Oven
• Seamless integration with PCB punching presses and stamping machines
• Compatible with FR4, aluminum PCB, CEM-1, CEM-3, FPC, and other circuit board materials
• Reduces manual handling, minimizes electrostatic damage, and lowers scrap rates

• PCB Punching & Depaneling — Automatic loading/unloading for PCB punching presses
• PCB Stamping Press — High-speed material handling for stamping operations
• Guide Hole Drilling — Automated board feeding for drilling machines
• Circuit Board Manufacturing — Integrated production line automation
• FR4 / Aluminum PCB — Compatible with rigid and metal-core circuit boards
• FPC / Flexible Circuit — Gentle handling for flexible substrate processing

• Factory Direct Pricing — In-house manufacturing with strict quality control, no middleman markup
• 18+ Years of PCB Industry Experience — Deep expertise in circuit board production automation
• Customizable Configuration — Tailored suction cup layouts, board sizes, and production parameters
• Rapid ROI — One operator manages multiple machines, cutting labor costs by 60%+
• 24/7 Reliable Operation — Industrial-grade components designed for continuous production
• Comprehensive After-Sales Support — Installation guidance, operator training, and ongoing technical service
