Horizontally PCB Conveyor System L Size NG And OK PCB Separation Conveyor
Horizontally PCB Conveyor System L Size NG And OK PCB Separation Conveyor
Specifications
Brand Name :
INFITEK
Model Number :
NL-L-TN
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
crate
Application :
NG and OK PCB automatic separation in SMT production line
Description :
Horizontally NG/OK Machine (L Size PCB)
Applicable PCB Size :
50*80-445*330 mm
Model :
NL-L-TN
Features :
Durability and long service life guaranteed
Brand :
INFITEK
Warranty :
1 Year
Reliability :
Industrial grade
Packaging :
Wooden crate/box
Description

Horizontally NG/OK Machine - NG and OK PCB Separation Conveyor for L Size PCB | INFITEK Board Handling Equipment

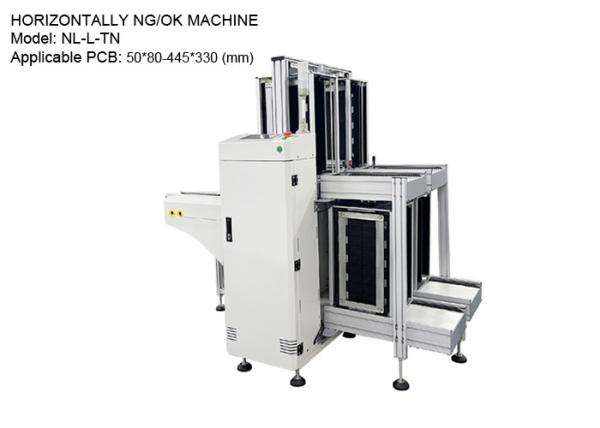

The INFITEK Horizontally NG/OK Machine is an SMT board handling equipment used to automatically separate OK and NG PCBs after the AOI process. It automatically follows the result and command of the AOI machine. The NG PCBs automatically go to the NG section or Magazine to be retested or undergo a thorough visual inspection or repair process. The NL-L-TN model is designed for L-size PCBs or PCBs with sizes from 50*80mm to 445*330mm.

Machine Name: Horizontally NG/OK Machine

Model: NL-L-TN

PCB Size: 50*80-445*330 mm)

PCB Magazine Size: 460*400*563 (mm)

Machine Dimensions: 2065*1690*1250mm)

Est. Machine Weight: Approx. 340 kg

Features:

  • Robust, firm, and stable design
  • MCGS Touch Screen and Panasonic PLC Control and OMRON Relay.
  • User-friendly “soft touch” LED membrane control panel or touch screen can be selected
  • Top & bottom pneumatic clamps to secure magazine rack
  • No PCB breakage guarantee because of the unique gas circuit design
  • Automatic diagnosing fault code display function
  • Wear-resistant cable and have a long service life
  • SMEMA compatible

TECHNICAL PARAMETERS
Description This unit is used for the automatic loading operation of double-sided boards and transceiver board
No. of magazine Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine
Magazine replacement time Approx.30 seconds or specify
Indexing pitch 10.20.30.40mm or specify
Power supply AC1P110V/220V
Power Max 300VA
Air pressure 4-6bar,10ltr/min max
Transport height 900±20mm (or customized)
Transport direction From left to right or right to left
