Flexible PCB Mounting 250K Capacity 68 Feeder Station SMT Placement Machine
Flexible PCB Mounting 250K Capacity 68 Feeder Station SMT Placement Machine
Flexible PCB Mounting 250K Capacity 68 Feeder Station SMT Placement Machine
Flexible PCB Mounting 250K Capacity 68 Feeder Station SMT Placement Machine
Flexible PCB Mounting 250K Capacity 68 Feeder Station SMT Placement Machine
Flexible PCB Mounting 250K Capacity 68 Feeder Station SMT Placement Machine
Specifications
Brand Name :
ETON
Model Number :
HT-T9
Certification :
CE,CCC,SIRA,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 working days
Packaging Details :
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Mounting Speed :
250000 CPH
Dimention :
3100mm *2300mm *1550mm
Feeder :
68pcs
Warranty :
1 Year,12 Months
Machine Heads :
68 pcs
Pcb Clamping :
Adjustable pressure pneumatic
Smt Machine :
Pick and place machine
Input Device :
keyboard,mouse
Description

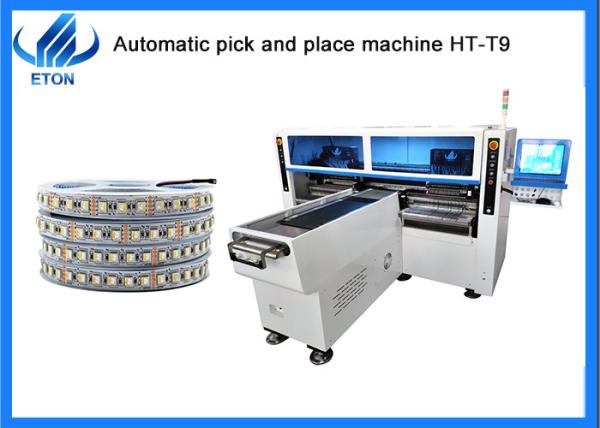

Flexible PCB mounting 250K capacity 68 feeder station SMT placement machine

Features

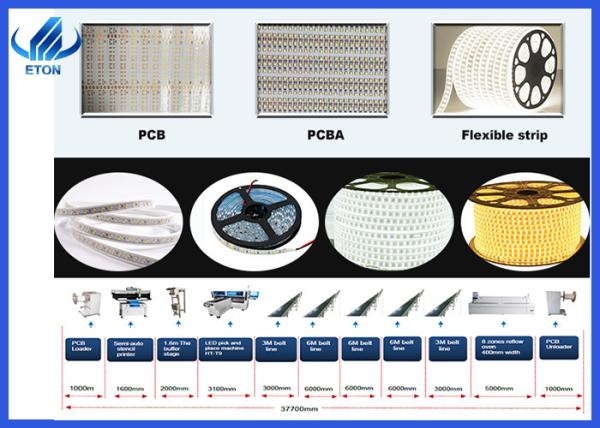

  • Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
  • Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
  • Calibration automatically, high precision, available for RGB.
  • Exclusive patent technology: Group to pick and group to mount.

IPC9850 Capacity: 200000~250000 CPH

Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0

Technical parameter

Model HT-T9
Dimension
Length 3100mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB
PCB Length Width 250mm*any length
PCB Thickness 0.5-1.5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group to take and group to mount
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 5 PCS ( Digital camera)
Vision alignment, MARK correction
Mounting Precision ±0.02mm
Mounting Height ≦5mm
Mounting Space 200000~250000 CPH
Components LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Speed 0.5mm
No. of Feeders Station 68 PCS
No. of nozzles 68 PCS
Power 380AC 50 HZ
Power Consumption 6kw
Operating Environment 23℃±3℃
Conveyor transmission Max Length :1000 mm
Transmission speed >500mm/sec
Transmission Direction Single(left→ right or right→ left)
Transmission Mode Online drive
Position Mode Optical
Gas consumption 0.4-0.6mpa (4-6kgf/cm2)150N/min
Electrical control Independent research and development by ETON
Motion control card module 1 set Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor+ servo motor
Feeding way Electric feeder with double motor

Flexible PCB Mounting 250K Capacity 68 Feeder Station SMT Placement Machine

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 14 invention patents, 135 practical patents, 55software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,etc.

Flexible PCB Mounting 250K Capacity 68 Feeder Station SMT Placement Machine

Packages

Our package step is follow the blowing:

STEP 1: Film packaging to prevent the dust and water;

STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;

STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;

STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.

Delivery: by sea, air, land transport.

Flexible PCB Mounting 250K Capacity 68 Feeder Station SMT Placement Machine

FAQ

Q: Does your machines have quality certificates?
A: We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 12 years) in LED light production line program.

Q. What is your machines quality?

A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
