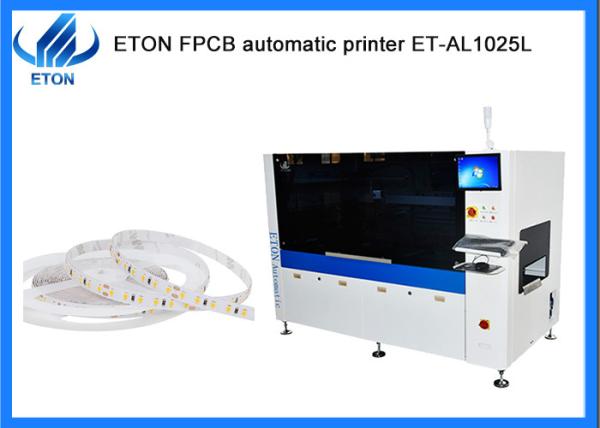

High quality 600KG FPCB printing solder paste automatic SMT equipment
High quality 600KG FPCB printing solder paste automatic SMT equipment
High quality 600KG FPCB printing solder paste automatic SMT equipment
High quality 600KG FPCB printing solder paste automatic SMT equipment
High quality 600KG FPCB printing solder paste automatic SMT equipment
High quality 600KG FPCB printing solder paste automatic SMT equipment
Specifications
Brand Name :
ETON
Model Number :
ET-AL1025L
Certification :
CE,CCC,SIRA,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 working days
Packaging Details :
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Usage :
FPCB Board stencil printer
FPCB Max Size :
260mm
Warranty Period :
1 year
FPCB Thickness :
0.5~5mm
FPCB Warpage :
Max. FPCB diagonal 1％
Input Device :
keyboard,mouse
Power Supply :
AC:220±10%,50/60HZ 1Φ 1.5KW
Delivery :
15~30 days
Description

High quality 600KG FPCB printing solder paste automatic SMT equipment

Machine configuration

● Programmable suspension printing head;

●Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;

●Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;

● Standard stainless steel scraper, unique design, improve the service life of the blade;

● Downward vision alignment system;

● CNC guide rail adjustment;

● Industrial controlled computer,Windows XP interface operating system;

● Built-in software diagnostic system;

● SMEMA interface.

Technical parameter

Screen Frames Min Size 850mm
Max Size 550mm
Thickness 25~45mm
FPCB Min Size 50mm
FPCB Max Size 260mm
FPCB Thickness 0.5~5mm
FPCB Warpage Max. FPCB diagonal 1％
Transport Height 900±40mm
Transport Direction Left-Right
Transport Speed Max 1000mm/S Programmable (Adjustable)
Board Location Support System Platform jacking tension
Clamping System Edge clamp fixed
Print head Two independent motorized print heads
Squeegee Speed 6~300mm/sec
Squeegee Pressure 0~10Kg/cm2
Squeegee Angle 55°(Standard)
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning System Manual cleaning
Table Adjustment ranges X:±5mm;Y:±5mm;θ:±2°
Machine
Repeat Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time ≤9s (Exclude Printing & Cleaning)
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 1.5KW
Control Method PC Control
Machine Dimensions 1754(L)X1249(W)X1600(H)mm
Machine Weight Approx:600Kg
FPCB transport over plate height 20mm

Market

Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:

SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.

High quality 600KG FPCB printing solder paste automatic SMT equipment

Our Exhibitions

Participate in various exhibitions at home and abroad every year (except during the epidemic period)

Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.

Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.

High quality 600KG FPCB printing solder paste automatic SMT equipment

Related machine

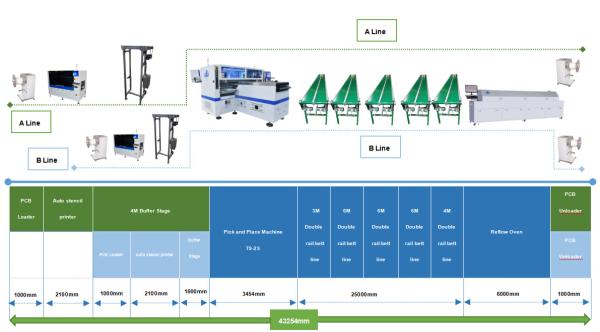

We can provide a whole SMT production line,led light production line:

1.Pick and place machine

2. Loader machine

3. Conveyor machine

4. Stencil printer machine

5. Reflow oven machine

6. Unloader machine

7. Solder paste mixer

8. Roll to roll led strip light assembly machine

High quality 600KG FPCB printing solder paste automatic SMT equipment

FAQ

Q. Does your machines have quality certificates?

A. We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 11 years) in LED light production line program.

Q. What is your actual speed of your products?

A. For the actual speed of the machine which is constrained by many factors,

that related to the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
