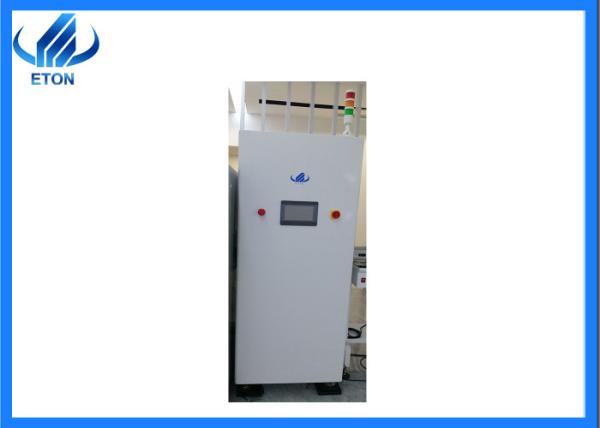

15 Pieces PCB NG OK Buffer Loader For SMT Production Equipment​
15 Pieces PCB NG OK Buffer Loader For SMT Production Equipment​
Specifications
Brand Name :
ETON
Model Number :
BF250
Certification :
CCC, CE, SIRA
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Vacuum wooden box packaging
Item :
buffer loader
PCB Size(L*W) mm :
80*50-330*250
Dimension(L*W*H)mm :
500*670*1600
Approximate weight (Kg) :
Appro.120
Circuit board capacity :
15 pieces (or customer specified)
Transport height :
900±20mm
Description

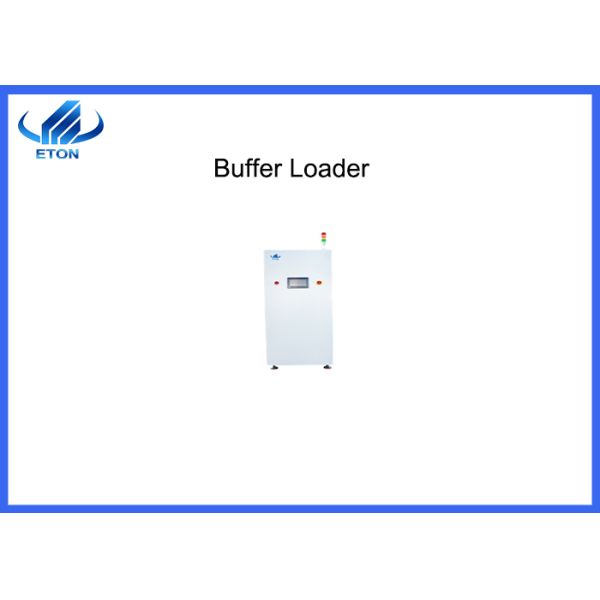

15 Pieces PCB NG OK Buffer Loader For SMT Production Equipment​

Introduction

Used for circuit board cache, NG/OK hierarchical storage for docking inspection equipment.

Technical parameter

Description This equipment is used to cache the circuit boards in the production line, and can also be connected to the inspection equipment for NG/OK hierarchical storage
Transport height 900±20mm
Transport direction Left-Right; Right-Left
Power Consumption Single-phase AC110～220V (optional), maximum 850 VA
Circuit board capacity 15 pieces (or customer specified)
Cycle time Minimum 0.6MM
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Air pressure and flow 4～6Bar, up to 5L/min

15 Pieces PCB NG OK Buffer Loader For SMT Production Equipment​

Specifications parameter

Model BF250 BF330 BF390 BF460
PCB Size(L*W) mm 80*50-330*250 80*50-460*330 80*50-510*390 80*50-510*460
Dimension(L*W*H)mm 500*670*1600 500*740*1600 600*810*1600 660*880*1600
Approximate weight (Kg) Appro.120 Appro.140 Appro.160 Appro.180

Product Features

  1. Human-machine interface control operation, function switch, simple and easy to understand;
  2. PLC control system, multiple electrical circuit protection design, safe and stable;
  3. There are 20 pitches available for suspension in the temporary storage area
  4. Integrated multiple functions, first in first out, first in last out, NGOK, pass-through;
  5. Servo positioning system, accurate positioning, fast rising and falling speed, high production efficiency;
  6. Standard SMEMA signal communication mode.

Application

During the production process, PCBs are automatically temporarily stored and fed to balance the production speed of the front and back stages, and adjust the flow of the whole line. It has the functions of first in, first out and Pass Through, and it can also be connected to the inspection equipment for NG/OK layered storage.

Warranty

We provide standard warranty----one year. In fact, not only the warranty, we also will visit customer regularly, provide lately technology support.

15 Pieces PCB NG OK Buffer Loader For SMT Production Equipment​

15 Pieces PCB NG OK Buffer Loader For SMT Production Equipment​

FAQ

1. What is your packaging?

A: Our package is wooden case with vacuum , reattach with rope and stand.

2. How long is your warranty?

A: We provide one year standard warranty.

3. When was your company established?

A: We set up in 2011, but start reach led pick and place machine from 2007.

4. What payment methods does your company support?

A: We support multiple payment methods, mainly T/T.
