Double Rail SMT Led Display Making Machine Pick And Place Device
Double Rail SMT Led Display Making Machine Pick And Place Device
Specifications
Brand Name :
ETON
Model Number :
RT-2S
Certification :
CCC/CE/SIRA
Place of Origin :
China
MOQ :
1 set
Machien name :
pick and place machine
Machine length :
1200 mm
Machine application :
Led display/electrical board
Machine quality :
Good brand
Width :
1930 MM
Height :
1500 MM
Description

Double Rail SMT Led Display Making Machine Pick And Place Device

For led display, there are indoor and outdoor two types. In the market there are P1.875 led display, P2 led display, P3.75 led display, P7.5 led display, P10 led display, etc. For different sizes , the led chip size is totally different, so it required higher precision mounting led chip than the driver sides.

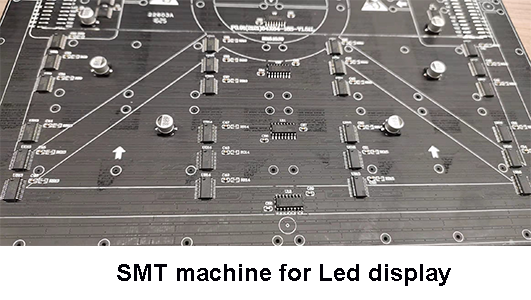

Machine for mounting most of led display

ETON RT-1S/RT-2S series very suitable for mounting led display, it is high precision with vision camera and independently servo motor control Z axis and R axis. Here are the main parameters of these two models.

Machine model RT-1S RT-2S
Length 1200 MM 1200 MM
Width 1930 MM 1930 MM
Height 1500 MM 1500 MM
Max PCB Length Width 450*350 MM 450*3500 MM
PCB Clamping Pneumatic Pneumatic
No. of Camera

2 PCS

(vision alignment, Mark correction)

4 PCS

(vision alignment, Mark correction)
Mounting height Standard:≦15mm Standard:≦15mm
Components Led chip /resistor /capacitor/shaped components/etc Led chip /resistor /capacitor/shaped components/etc
No. of heads 10 PCS 20 PCS
X,Y,Z Axis drive way High-end magnetic linear motor+ servo motor High-end magnetic linear motor+ servo motor
Feeding way Electric feeder with double motor Electric feeder with double motor
Mounting speed 37000 CPH 74000 CPH

SMT Line Solution

Magazine Loader machine---Conveyor machine---Automatic printer machine---Pick and place machine---Reflow oven machine—Unloader machine

We supply whole smt line solution with automatic line or semiautomatic line
