cSMT chip making pick and place machine in led industry for led light,0201-10mm package

Details

Showroom Location:Turkey, India

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Warranty of core components:1 Year

Core Components:R&D by Eton

Place of Origin:Guangdong, China

Brand Name:ETON

Model Number:YT202

Warranty:1 Year, 1 year

Place of origin:China

Dimension:2317*1376*1762mm

Total weight:1700kg

Power:380AC 50HZ

Power consumption:6KW

Mounting speed:90000CPH

Mounting height:<=20mm

Visual camera:4sets of imported camera

After Warranty Service:Video technical support, Online support

Local Service Location:Turkey, India

After-sales Service Provided:Video technical support, Online support

Features

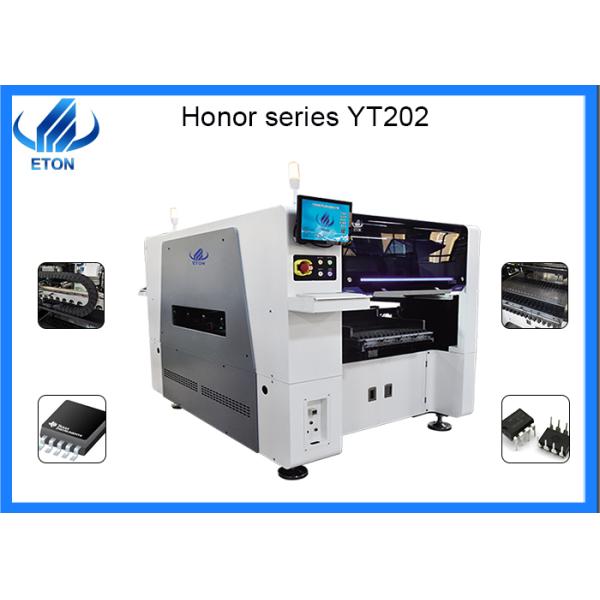

YT 202 is one of the newly launched YT series products from ETON. The dual-module placement machine can produce two identical PC boards at the same time,improving production efficiency.Under optimal conditions, the production capacity

can reach 90000CPH, and the precision is very high, and the minimum mounted components can reach 0201.

1.(1)YT202 machine adopt High-speed multi modular head,Apply to 0201~10mm tape reel package and IC tray feeder.

(2)It equipped with 20 heads, Each placement head with independent detection function, which Optimum mounting speed reached 90,000CPH.

(3)PC max size:500*450mm.

(4)4 sets of camera:Components with size less than 10mm can be used to high-speed and high-precision identification.

2.Application

This machine is suitable for products not only LED lights, but it can also mounting BGA, CP ,Apply to more complex PCBA board.

3.Parts

(1)Software : Machine software is independently developed by our company, which can offer clients free life-long upgrade and update

(2):Smart double-head tape feeder

Support Y series double head intelligent electric tape reel feeder,by optically correcting the feeding position of the component,it can achieve stable,accurate and high-speed feeding.

(3):Drag chain

Imported from Germany IGUS

It can provide traction and protection for built-in cables and air pipes. During running,it has low noise, wear resistance, and high-speed movement.

(4): Guide rail

Imported from Japan THK

Support and guide moving parts, reciprocating linear motion in a given direction,used in mechanical structures with high precision requirements.

(5)Mark camera

Hik vision brand from China top one

High quality Mark camera automatically recognizes the Mark points, and the software automatically recognizes and corrects and compensates.

FAQ

Q: Can I visit the production site of your machines in India?

A: I have to ask my clients. After all, this is our customer's factory. We can't make decisions for my clients.

I think that You wouldn't want your competitors to visit your manufacturing site. please understand.

Q:How many hours does the machine can operate per day?

A: Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
