Specifications
Brand Name :
ETON
Model Number :
HT-E8SD
Certification :
CE , ISO , CCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 48000-72000 per set
Payment Terms :
T/T, L/C
Supply Ability :
50 Unit per mouth
Delivery Time :
15-30 days
Packaging Details :
Vacuum wooden packing
name :
pick and place machine
model :
HT-E8D
brand :
ETON
heads :
24 PCS
feeders station :
48 PCS
feeding way :
electric feeder with double motor
mounting speed :
90000 CPH
mounting precision :
±0.02 mm
Description

Spot light and panel light making assembly machine with double module 90000CPH

The main parameter

Dimension: 3150*2250*1650mm
Total Weight:2500kg
PCB
PCB Thickness PCB Length Width PCB Clamping Mounting Mode
0.5-5mm

Max:1200*300mm

Min:100*100mm

 Adjustable pressure pneumatic

Group picking and separate placing

separate picking and separate placing
Camera 4 sets of imported camera Mounting Precision

Vision for the flight identification,

MARK correction

 ±0.04mm
Mounting Speed Mounting Height Components

Electrical control

Motion control card module 2 set
90000 CPH <15mm

LED , capacitors, resistors,

IC,shaped components, etc.

 Independent R&D by ETON
No. of nozzles Components Space No. of Feeders Station X,Y,Z Axis Drive way
24 PCS 0.2mm 48 PCS High-end magnetic linear motor + Servo motor
Power Operating Environment Transmission Speed Air supply
380AC 50HZ 23℃±3℃ ＞1000mm/sec 0.4-0.6mpa (4-6kgf/cm2)300N/min
Conveyor transmission Transmission Direction Transmission Mode Feeding way

Max length

1200 mm

 Both direction Auto online drive Electric feeder with double motor

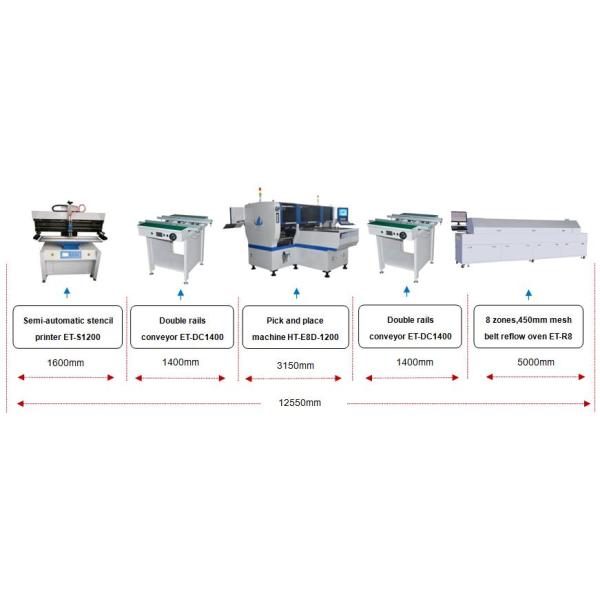

The prodction line solution

DOB Bulbs And Spot Light SMT Making Machine With 45000CPH And 12 Heads

The applications

HT-E8D is the multifunctional led light SMT pick and place machine, has the wide range of applications: led bulbs, DOB bulbs, tube light, strip light, street light, panel light, down light, electric boards, power driver, led display etc.

DOB Bulbs And Spot Light SMT Making Machine With 45000CPH And 12 Heads

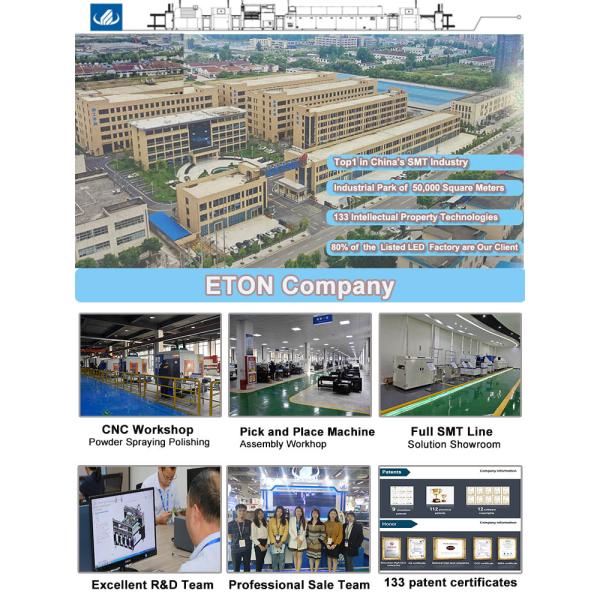

Company Introduction

Shenzhen ETON Automation Equipment Co.,Ltd. Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment.

DOB Bulbs And Spot Light SMT Making Machine With 45000CPH And 12 Heads

Certificates

we got 9 invention patents, 112 practical patents,12 software patents and have rich experience(more than 8 years) in LED light production line program.

DOB Bulbs And Spot Light SMT Making Machine With 45000CPH And 12 Heads

Product tags

led bulb assembly machine

,

led bulb manufacturing machine

,

led lamp production machine
