220V 50HZ LED Bulb Making Machine , LED Production Machine Easy Operation
220V 50HZ LED Bulb Making Machine , LED Production Machine Easy Operation
220V 50HZ LED Bulb Making Machine , LED Production Machine Easy Operation
220V 50HZ LED Bulb Making Machine , LED Production Machine Easy Operation
Specifications
Brand Name :
ETON
Model Number :
ET-L330
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
3000-4000USD
Payment Terms :
T/T, Western Union
Supply Ability :
100 Units/ Per Month
Delivery Time :
15 days
Packaging Details :
Wooden box
Condition :
New
Name :
PCB Send Board Machine
Product name :
ET-L330
Length :
1400MM
Power Supply :
220V 50Hz
Brand :
Eton
Description

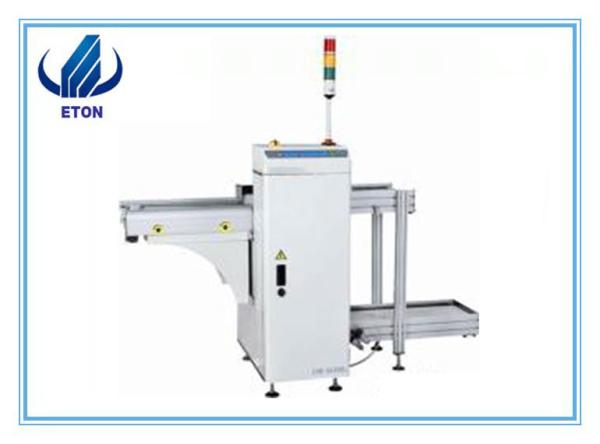

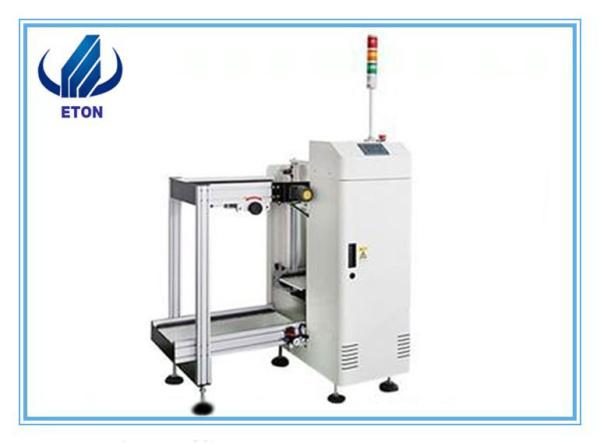

High Quality Automatic LED PCB Send Board Machine ET-L330 Eton Machine

SMT PCB loader parameters

Item ET-L330 send board machine
Dimension L1400*W860*H1200±30mm
Frame Special aluminum profile guide rail and special thousand bird type plastic chain
Lift 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
Transmission motor Taiwan 15W fixed speed motor
Structure Pneumatic clamp structure
Magazine Specifications L460*W400*565mm
Maximum size of PCB L450*W330
Direction Right to left / left to right
Lift platform pitch selection 10,20,30,40
Transmission height H=920±30
Controller Mitsubishi PLC programmable controller
Function Automatically send board
Operation control panel Display control true color touch screen
Pneumatic Components Push plate cylinder position, adjusted by screw
power supply 220V 50HZ
No. of Full load storage board 50 PCS
Gas source 0.4-0.6MPa
Electric control box 1 set

The SMT loader describtion

1. Aluminum alloy guide rail, stable and durable and beautiful.

2. Microcomputer PLC control system, stable and reliable work.

3. Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue.

4. A number of sound and light and touch screen prompt alarm function.

5. The height of material wall can be adjusted according to PCB thickness.

Humanized design to ensure that PCB board is not pushed to break, improve the output capacity

6. Adopt automatic board dropping method, effectively shorten the board time.

7. Electrical components of equipment adopt well-known brands.

8. Smaller machines cover less space.
