Automatic LED Making Machine ET-DL Yadak Pneumatic Clamp PCB Send Board Device
Automatic LED Making Machine ET-DL Yadak Pneumatic Clamp PCB Send Board Device
Automatic LED Making Machine ET-DL Yadak Pneumatic Clamp PCB Send Board Device
Automatic LED Making Machine ET-DL Yadak Pneumatic Clamp PCB Send Board Device
Specifications
Brand Name :
ETON
Model Number :
ET-DL
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
3000-4000USD
Payment Terms :
T/T, Western Union
Supply Ability :
100 Units/ Per Month
Delivery Time :
15 days
Packaging Details :
Wooden box
Condition :
New
Name :
PCB Send Board Machine
Product name :
ET-DL
Length :
1100MM
Power Supply :
220V 50Hz
Brand :
Eton
Description

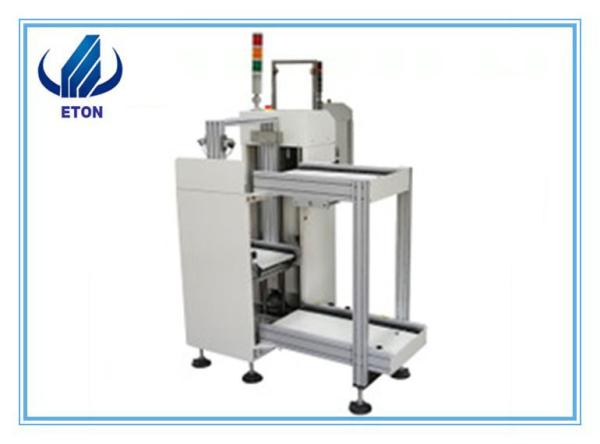

Automatic LED PCB Double Track Send Board Machine ET-DL SMT Production Machine

Parameters of double track PCB loader

Item Double track send board machine
Dimension L1100*W1500*H1270mm
Frame Special national standard aluminum profile guide rail and special thousand bird type plastic chain
Lift 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
Structure Yadak pneumatic clamp
0.6M long push plate Conveyor 1 set
Magazine Specifications (W)320*(L)355*(H)570mm
Maximum size of PCB L330*W250
Direction Left to right (the orbital distance is specified by the customer and cannot be changed after the specification)
Lift platform pitch selection 10,20,30,40, 50
Operation control panel Taiwanese joint venture display control touch screen
power supply Single phase 220V 50HZ
Gas source 0.4-0.6MPa
Electric control box 1 set

Application

The PCB board loader is used for automatically loading unpopulated boards at the beginning of a PCB assembly line. The bare boards are lifted one by one from the stack and are gently lowered onto the belt segment, ready for the downstream machine.

The features of double track loader

1. Microcomputer control, stable and reliable work;

2, Button or touch screen two control panels to choose from, man-machine dialogue is convenient;

3. Multiple sound and light alarm functions;

4, can use standard bin, strong versatility, can be placed three racks;

5. The step height of the rack can be set according to the thickness of the PCB. The step can be divided into five types (10, 20, 30, 40, 50mm).

6, the loading machine built-in push plate mechanism, eliminating the need to buy a separate pusher;

7, with automatic counting function, easy to produce statistics; with signal communication structure, can be connected with other machines online

8:Can send two boards one time.
