LED Bulb PCB Semi Auto Screen Printer 1400mm Length With 850±20mm Platform Height
LED Bulb PCB Semi Auto Screen Printer 1400mm Length With 850±20mm Platform Height
LED Bulb PCB Semi Auto Screen Printer 1400mm Length With 850±20mm Platform Height
LED Bulb PCB Semi Auto Screen Printer 1400mm Length With 850±20mm Platform Height
Specifications
Brand Name :
ETON
Model Number :
ET-S600
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
3100USD
Payment Terms :
T/T, Western Union
Supply Ability :
100 Units/ Per Month
Delivery Time :
15 days
Packaging Details :
Wooden box
Condition :
New
Name :
Semi-automatic Printer
Product name :
ET-S600
Length :
1400MM
Weight :
200KG
Power :
220V 50/60Hz
Description

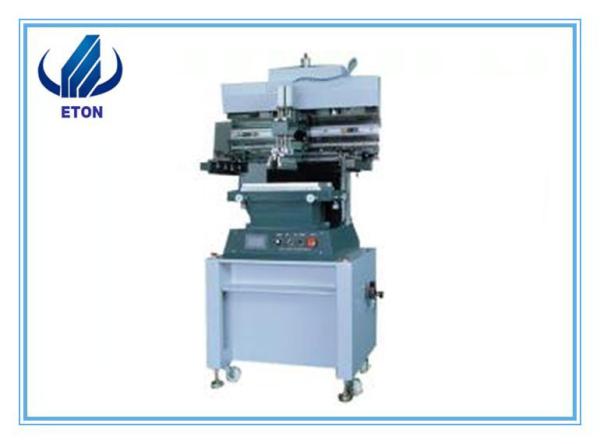

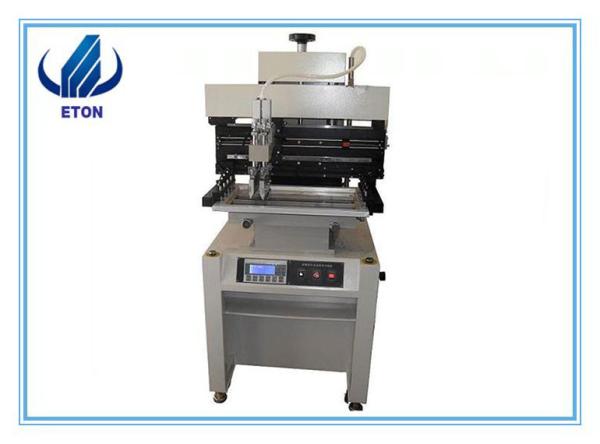

LED Bulb PCB Printer Machine Semi-automatic Solder Paste Printer ET-S600

What is solder paste Semi-automatic printer?

Modern solder paste printing machines are generally composed of plates, tin paste, embossing. Its working principle is: firstly, the circuit board to be printed is fixed on the printing positioning table, and then the solder paste or the red glue is printed on the corresponding pad through the steel mesh by the left and right scrapers of the printing machine, and the PCB which is uniformly printed is passed through.

First process of SMT line: Solder paste printing.

solder paste printing is to use a scraper to print the solder paste at a 45-degree angle to the pad of the PCB to prepare for the soldering of the components. The equipment used is a printing press (solder paste press) at the forefront of the SMT line.

Parameters of Printer machine

Below is Solder paste printer machine for small PCB board model ET-S600

Model ET-S600
Dimensions 1400*800*1680mm
Platform size 300×600mm
PCB size 250×550mm
Template size 550×830mm
Printing speed 0-8000mm/min
PCB thickness 0-50mm
PCB fine tuning range Front/side±10mm
Power supply 1PAC220V 50/60HZ
Platform height 850±20mm
Repeatability precision ±0.01mm
Positioning mode Outside/Reference hole
Weight Approx.200Kg

Machine’s pacakge to abroad

All machines to abroad are choosing vacuum wodden box which can protect machines well
