Smt Pick and place line Pcb Cleaning Machine，smt Production Line，efficient Anti-static Clean
Smt Pick and place line Pcb Cleaning Machine，smt Production Line，efficient Anti-static Clean
Specifications
Brand Name :
ETON
Model Number :
Pcb cleaning machine
Certification :
CCC
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
4 weeks after payment
Packaging Details :
Wooden case
Name :
Pcb cleaning machine
Dimension :
L600mm*W980mm*H1200mm
Transfer speed :
0-17.5 m / min
Min Substrate size :
50*50mm
Max Substrate size :
Substrate size
Warranty :
One year
Description

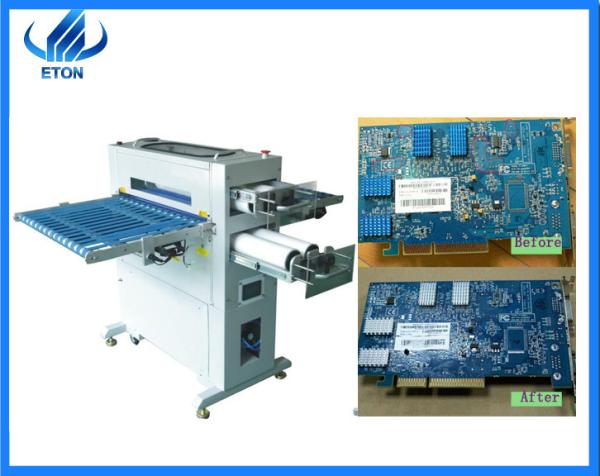

PCB cleaning machine

The necessary of use a cleaning machine:

  • It can clean dust, swarf, particles, hair and fiberglass on the substrate to eliminate potential printing and soldering defects;
  • For the latest 0402, 0201, 01005 and other small components and fine pitch QFP, BGA, uBGA, Connector and other precision components can not be repaired after reflow and super difficult rework, etc., can be better one-time assembly success is particularly important;
  • Effectively determine the problems of virtual welding and short circuit after reflow soldering caused by swarf dust, and spend a lot of manual inspection and repair;
  • Improve production efficiency, better ensure product quality, reduce workload, reduce labor, etc.

Technical parameter:

1.Dimension:L600mm*W980mm*H1200mm

2. Mitsubishi PLC control, operation panel for display control touch screen

3. Single(left→right or right→left) Transmission Direction

4. Min Substrate size is 50*50mm and Max is 330*350mm

5.Transfer motor is using Stepper motor

6.Transfer speed is 0-17.5 m / min

7.One set of electric control box

8. Automatically sense and release positive and negative ions with an electrostatic precipitator to ensure product safety.

FAQ

1.What is this machine?

A: This machine is PCB cleaning machine, it is for cleaning pcb or pcba in electrical product factory.

2.Will it have infect to my product?

A:No, this machine is totally green and good to your product.

3.How can i buy it?

A:Contact Joy: +8613590151025 or email : Joy@eton-mounter.com
