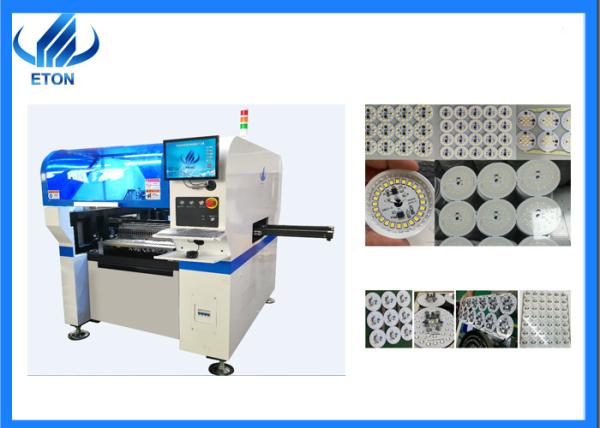

Led smt line , automatic high speed chip mounter , led light bulbs making machine

Advantage:

1. Fast speed. 10 heads, with magnetic levitation, running faster

2. High precision. 2 sets of imported cameras, high CCD resolution, 0.01MM

3. Less energy consumption. Power is only 4kw

Technical parameter:

Main process of SMT Line for DOB manufacturing

Step one: Print Solder paste on PCB

Step two: Mounting LED chip and capacitor big components on PCB.

Step three: Heating solder paste with PCB to welding together the component with PCB.

Different type of DOB PCBA

The PCBA of Linear bulbs

RT-1 SMT line not only suitable for DOB and bulb, but also suitable for many other products.

Production line:

Step one: Using Solder printing machine to Print Solder paste on PCB.

Step two: Using pick and place machine to mount LED chip and capacitor big components on PCB.

Step three: Using reflow oven to heat solder paste with PCB to welding together the component with PCB.

Company profile:

ETON Automation Equipment Co.,LTD.

a. We are a high-tech enterprise

b. We have been committed to the development, production, sales, and after-sales technical services of SMT high-speed machines.

c. We are committed to providing customers with "professional, efficient, low-consumption" SMT automatic placement machine solutions

Technology Innovation Certificate:

9 invention patents, 112 utility patents, 12 software copyrights

Including but not limited to: 2015 LED Technology Innovation Award, the 4th China LED Innovation Award...

For SMT factory setup,we can do for you:

1. We provide full SMT solution for you

2. We provide core technology with our equipments

3. We provide the most professional tech service

4. We have wealthy experience on SMT factory setup

5. We can solve any question about SMT

=================================================

Add: If you have any other questions, please do not hesitate to contact us, we will serve you wholeheartedly 24 hours!
