0.02mm 6KW 200K CPH LED Strip Chip Mounter HT-F9
0.02mm 6KW 200K CPH LED Strip Chip Mounter HT-F9
0.02mm 6KW 200K CPH LED Strip Chip Mounter HT-F9
0.02mm 6KW 200K CPH LED Strip Chip Mounter HT-F9
0.02mm 6KW 200K CPH LED Strip Chip Mounter HT-F9
0.02mm 6KW 200K CPH LED Strip Chip Mounter HT-F9
Specifications
Brand Name :
Eton
Model Number :
HT-F9
Certification :
CE CCC ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD 82000-90000
Payment Terms :
T/T
Supply Ability :
50 sets
Delivery Time :
30 work days
Packaging Details :
Wooden box package
Length :
2700MM
Width :
2300MM
Height :
1550MM
Weight :
1700KG
Power :
380AC 50Hz
Power Consumption :
6KW
Mounting precision :
0.02mm
Speed :
200K CPH
Description

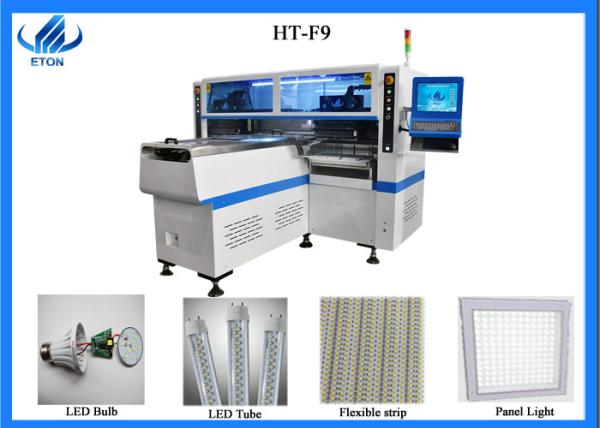

LED Strip Light Chip Mounter Machine HT-F9 SMT LED Production Line

Machines Window

In order to meet the rapid development of the lighting industry market demand, research and development a high speed placement machine HT-F9. HT-F9 is a high tech special pick and place machine of Eton company. This machine designed for LED tube, panel, strip PCB boards. Using the Eton first group taking and group picking patent technology, a very high speed LED pick and place machine.

HT-F9 Features

w High-end magnetic linear motor + Panasonic Servo Motor

w 64 heads, 64 feeder stations

w Group to pick and group to mount

w Vision alignment, Mark Correction

w Capacity can Reach 200000 CPH

HT-F9 Main parameters

Dimension L*W*H 2700*2285*1550MM
Weight 1400kg
Mounting Heads 64 Heads
No. of Feeder Stations 64 Stations
Components LED, capacitors, resistors, bridge rectifiers.
Mounting Speed 200000 CPH
PCB Size Max:1200*330MM Min:100*100MM
Power 380V 50Hz
X.Y Axis Driving High-end magnetic linear motor + Panasonic servo motor

The process of LED strip light making

0.02mm 6KW 200K CPH LED Strip Chip Mounter HT-F9
