6mm PCB 3KW SMT Machine Automatic Stencil Printer
6mm PCB 3KW SMT Machine Automatic Stencil Printer
6mm PCB 3KW SMT Machine Automatic Stencil Printer
6mm PCB 3KW SMT Machine Automatic Stencil Printer
6mm PCB 3KW SMT Machine Automatic Stencil Printer
6mm PCB 3KW SMT Machine Automatic Stencil Printer
Specifications
Brand Name :
ETON
Model Number :
ET-F1200
Certification :
CCC,CE,SIRA
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
10000-15000 usd
Payment Terms :
T/T, L/C
Supply Ability :
50 Units per month
Delivery Time :
30 days
Packaging Details :
vacuum wooden package
Name :
SMT Machine Stencil
Application :
SMD Production Line
Power supply :
220V/110V
Condition :
100% Original
Product name :
Conveyor
Usage :
Circuit Board Assembly
Description

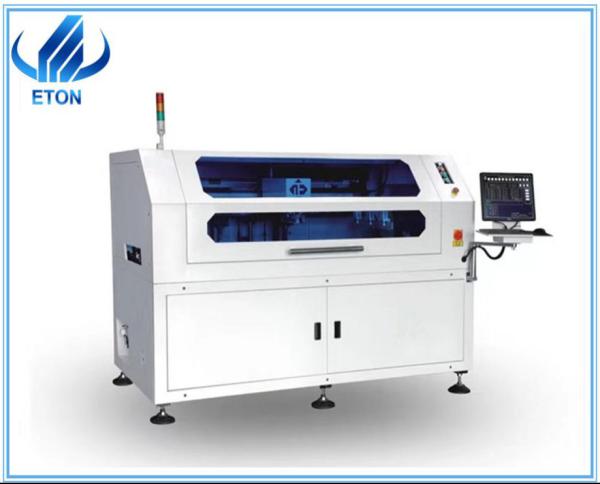

Full automatic printer ET-F1200

Fully automatic printing machine plus a loader machine can work automatically without manual work. Generally, the camera is automatically positioned and calibrated with high precision. Stable printing, but high price

Specifications:

Model

Item

 ET-F1200
Screen Frames Min Size 737X300mm
Screen Frames Max Size 1500X750mm
Screen Frames Thickness 25~40mm
PCB Min Size 80X50mm
PCB Max Size 1200X350mm
PCB Thickness 0.4~6mm
PCB Warpage ＜1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/S Programmable
Board Location
PCB Support System		 Magnetic Pin/Up-down table adjusted/supportblock by hand
Clamping System Elastic side clamp/Z press
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15Kg
Squeegee Angle 60°/55°/45°
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning System Dry,Wet,Vacuum (Programmable)
Table Adjustment ranges X:±10mm;Y:±10mm;θ:±2°
Repeat Position Accuracy ±0.015mm
Printing Accuracy ±0.03mm
Cycle Time <12s (Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 3KW
Control Method PC Control
Machine Dimensions 2200(L)X1200(W)X1500(H)mm
Machine Weight Approx:1500Kg

SMT Production Line

6mm PCB 3KW SMT Machine Automatic Stencil Printer

After sales service

Maintenance period: 1 year(any parts need to be repaired and replaced will be free)

Visit customers regularly

ETON Software R&D , easy to operate and free updates for life.
