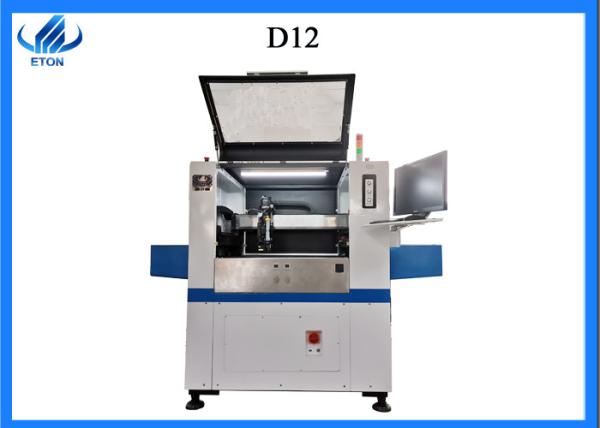

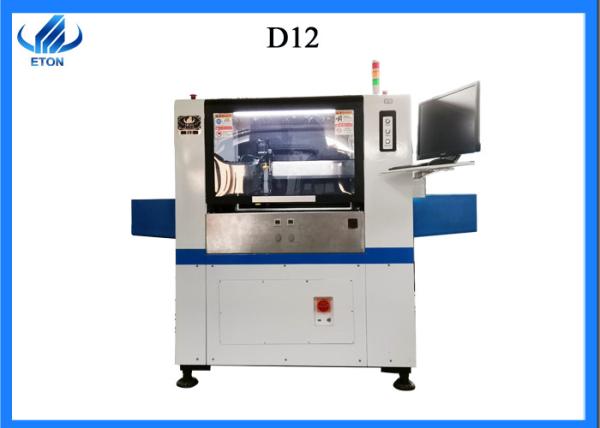

high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine
high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine
high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine
high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine
high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine
high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine
high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine
high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine
high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine
high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine
Specifications
Brand Name :
eton
Model Number :
ht-d12
Certification :
ccc,ce,sira
Place of Origin :
china
MOQ :
1 unit
Price :
$ 25,000.00/unit
Payment Terms :
L/C, T/T
Supply Ability :
80 units per months
Delivery Time :
30 work days
Packaging Details :
Waterproof material packing and wooden case
length :
1800mm
width :
1050mm
height :
1550mm
total weight :
800kg
max pcb size :
1200*500mm
pcb clamp;ing :
adjustable pressure pneumatic
dispensing :
pneumatic injection valve
system :
windows7
software :
r&d independently
display :
led monitor
input device :
keyboard,mouse
no. of camera :
1
ccd resolution :
0.01mm
runniig accuracy :
0.001mm
max dispensing height :
15mm
disending speeding :
90000CPH
POWER :
220AC 50HZ
power consmption :
4.5kw
Description

1. Product details

This machine glue dispenser ht-d12 is independently developed and produced by our company, which can effectively improve the production efficiency and reduce the production cost.

high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine

  • English inter face option,easy to operate.
  • Large size track,suitable for different size of PCB.
  • Contact less high speed injection dispensing head,dispensing glue sequentially with high efficiency.
  • Intelligent dispensing head,ensure good performance,high efficiency and lower glue wasting.
  • Full time monitoring of glue volume, auto prompting low glue volume.
  • Dispensing head constant temperature function,ensure the glue in liquid.
  • Control the dispensing value in milliseconds,ensure the conformity of glue volume.
  • Automatic program standby,start up production rapidly,intelligent manufacturing.
  • Apply to various kinds(round,linear,lattice,etc.) of products.
  • High performance linear servo motor drive for X,Y axis,ensure high accuracy in high speed.
  • Large capacity SSD industrial control system, high speed access ensures system response speed.

technical parameter

Model number HT-D12
Dimension 1800*1050*1550mm
PCB size 1200*500mm
PCB clamping Adjustable pressure pneumatic
system windows 7
display LED monitor
input device keyboard,mouse
NO.of camera 1 sets of industrial camera
Heating temperature 200℃
CCD resolution 0.01mm
Running accuracy 0.001mm
Dispensing height 90000CPH
operating environment 23℃±3℃
power 220AC 50HZ
power consumption 4.5KW
Max running speed >1200mm/sec
transmission direction single(left→right,right→left)
transmission way Auto online drive
feeding way electric feeder with double motor
air supply ≥0.6
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
drive way Driving by linear servo motor

2. services of glue dispenser machine ht-d12

high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine

3.Company profile

high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine

We are a rapidly growing company. We have just completed an industrial park in jiangxi, China, at a cost of 150 million RMB.

We will vigorously explore the overseas market in the future.

We have also cooperated with engineers from Taiwan, Japan and Germany for a long time to jointly develop and improve the technology.

high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine

high speed high precision Automatic New Glue Dispenser Machine HT-D12 led lights assembly machine

4.Knowledge of mounter industry

SMT Introduction

SMT patch refers to the abbreviation of a series of technological processes that are processed on a PCB basis. PCB Circuit Board is a printed circuit board.

SMT is the surface assembly technology (surface mount technology)(abbreviation of Surface Mounted Technology), is the most popular technology and process in the electronic assembly industry at present. Electronic circuit surface assembly technology (Surface Mount Technology,SMT), known as surface mount or surface mount technology. This is a kind of circuit assembly technology which installs components without pin or short lead on the surface of printed circuit board (Printed Circuit Board,PCB SMC/SMD,) or other substrate by means of reflow welding or immersion welding.

Under normal circumstances, the electronic products we use are made of electronic components, such as pcb and capacitance, resistance and so on, according to the designed circuit diagram, so all kinds of electrical appliances need different smt patch processing technology to process.

SMT basic process elements: solder paste printing -> parts mount -> reflow welding ->AOI optical inspection -> maintenance - sub-plate.
