Max Height 15mm Power Driver Making Machine 90000 CPH SMT Pick Place Machine
Max Height 15mm Power Driver Making Machine 90000 CPH SMT Pick Place Machine
Max Height 15mm Power Driver Making Machine 90000 CPH SMT Pick Place Machine
Max Height 15mm Power Driver Making Machine 90000 CPH SMT Pick Place Machine
Specifications
Brand Name :
ETON
Model Number :
HT-E8D-1200
Certification :
CE,CCC,SIRA
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Power supply :
380AC 50HZ
Product name :
Place Machine\ LED Mounter\LED Assembly Machine
Mounting speed :
90000 CPH
Warranty :
1 Year
Condition :
New
Positioning accuracy :
±0.04 mm
Usage :
SMT Mounting Machine
Pcb thickness :
0.5-5 mm
Description

Max height 15mm power driver making 90000 CPH SMT pick and place machine

Description

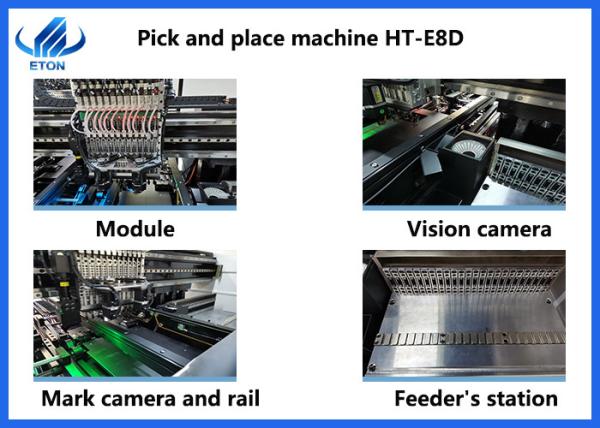

E8D-1200 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.

  • Dual system, dual module multifunctional mounter to produce two different products at the same time.
  • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
  • Component: Min. Size 0402, Max. Height 15mm.
  • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Exclusive Patented Technology:

  • Electronic feeder feeding system.
  • Vision alignment flight identification, Mark correction.
  • Non- stop material re-loading function.
  • Auto-optimization after coordinates generated, etc.

Machine parameter

ModelHT-E8D-1200
Dimension3150mm*2250mm*1650mm
Total weight2500kg
PCB length width

Max:1200*300mm

Min:100*100mm

PCB thickness0.5-5mm
PCB clampingAdjustable pressure pneumatic
Mounting modeGroup picking and separately placing, Separately picking and separately placing
Mounting precision±0.04mm
Mounting speed90000CPH
No. of feeders station48PCS single module
No. of head24 PCS single module


Our advantage
We can provide SMT line solution for you!

Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
Max Height 15mm Power Driver Making Machine 90000 CPH SMT Pick Place Machine
Market

ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
Max Height 15mm Power Driver Making Machine 90000 CPH SMT Pick Place Machine
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
Max Height 15mm Power Driver Making Machine 90000 CPH SMT Pick Place Machine
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
Max Height 15mm Power Driver Making Machine 90000 CPH SMT Pick Place Machine
