HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve
HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve
HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve
HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve
HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve
HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve
Specifications
Brand Name :
ETON
Model Number :
HLX-LDBBU330
Certification :
CE CCC ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
50
Delivery Time :
30
Packaging Details :
Standard export package(Wooden case with vacuum package)
Dimenion :
L2000*W860*H1200±30mm
Magazine Specifications :
L460*W400*565mm
PCB maximum specification :
L450*W330
Lifting platform pitch :
10，20，30，40
Gas source :
0.4-0.6MPa
Description

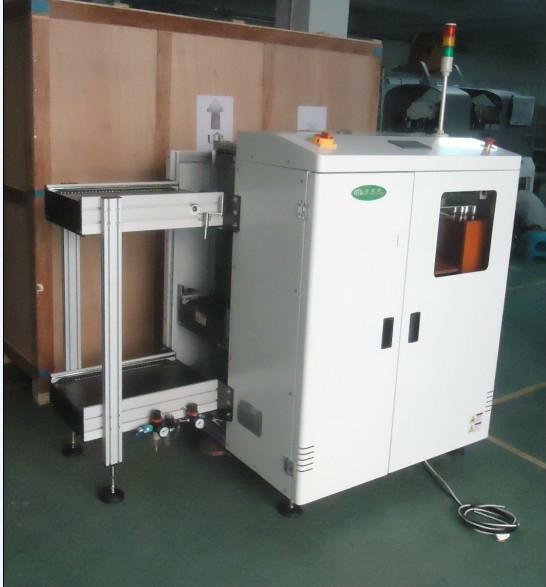

HLX-LDBBU330 drop one machine

Model: HLX-LDBBU330

Features:

  1. Special aluminum profile guide rail and special thousand bird type plastic chain.
  2. 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down.
  3. The box transmission motor adopts 15W fixed speed motor.
  4. Pneumatic components (the position of the push plate cylinder is adjusted with the screw)
  5. The falling plate action parts are made of aluminum alloy

HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve

Technical parameter:

Dimension L2000*W860*H1200±30mm
Transmission motor 15W fixed speed motor
Magazine Specifications L460*W400*565mm
PCB maximum specification L450*W330
Transmission Direction Single(left→right or right→left)
Lifting platform pitch 10,20,30,40
Transmission height H=920±30
Control Mitsubishi PLC programmable controller control
Drop board conveyor Stepper motor
Falling board Cylinder + solenoid valve
Conveyor belt 7mm flat belt
Operation control panel Display control true color touch screen
Power 220V 50HZ
Gas source 0.4-0.6MPa
Full load plate number Sending machine 50PCS stacking machine stacking 100MM high

Company Profile

HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve

Shenzhen ETON is a LED mounter in this line about 12 years. With the trends of global green, energy-saving and requirements of production process, ETON did research and development cooperated with the experts from United States, Taiwan, Hong kong and multi-technical staff for four LED automatic High-speed placement machine products, which solves the problems of the long light board low capacity and higher labor costs, we also got many patents for invention by the sate.

About the quality:

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.

shipping in shenzhen port 15 days after payment

packing : standard export packing. wooden case with vacuum packing.
