Middle High Precision E5 Chip Mounting Machine for LED Manufacturing Machine Line
Middle High Precision E5 Chip Mounting Machine for LED Manufacturing Machine Line
Middle High Precision E5 Chip Mounting Machine for LED Manufacturing Machine Line
Middle High Precision E5 Chip Mounting Machine for LED Manufacturing Machine Line
Middle High Precision E5 Chip Mounting Machine for LED Manufacturing Machine Line
Middle High Precision E5 Chip Mounting Machine for LED Manufacturing Machine Line
Specifications
Brand Name :
ETON
Model Number :
HT-E5
Certification :
CE,SIRA,CCC,ISO
Place of Origin :
Shenzhen,China
MOQ :
1 UNIT
Price :
USD10000~40000USD per Unit
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability :
30 UNIT per month
Delivery Time :
Within 15 days after receive the downpayment
Packaging Details :
Standard export wooden case package(Can do as customers' requirement)
Application: :
Middle High Precision Visual Position Placement Machine E5 Chip Mounting Machine for LED Manufacturing Machine Line
Applicable Components: :
LED chip,IC,capacitors,resistors,shaped components etc.
NO. of head: :
8 PCS
Capacity Speed: :
35000CPH
PCB Size: :
Max:350*500mm Min:50*50mm
Repeat Precision: :
±0.02mm
Apply to: :
LED light making,(SMT machine)PCB,Hard light board or soft lamp strip,etc.
Feeder Type: :
Electronic feeder(double motor,more precision)
Name: :
smt pick and place machine/led pick and place machine/led chip mounter
No. of Feeder: :
20 PCS
Description
SMT pick and place machine,LED light making machine,LED light production machine.

Product Description

1.Features:

1. Dual vision system identify and calibrate the different components at one
time, improves the accuracy of placement from 0402 to BGA;


2. Automatic electric feeders, reduce the feeding deviation;

3. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving

4. Eight placement heads can pick up and calibrate components at one time.

5. The device supports remote system upgrade, ETON provides a life long system upgrade service for free to you;

6.Big display contributes to easier and convenient operation.

2. FRQ

We own excellent sales team,top-tech R&D team and professional management group

1.Leaders of highspeed pick and place machine industry
2. Machines has sold to all over the world
3. Products have a good reputation in the market
4. Perfect after sales system

3 . Technical Parameter :

Model SMT chip mounter HT-E5
Machine Style Single gantry with 8 heads
Alignment Stage Vision
Placement Rate Vision:35,000CPH(Optimum)
Feeder Capacity Tape feeder:8mm,12mm,16mm,24mm is avaible
Vibration feeder is avaible


Component Range		 Smallest Size 0402
Largest Size 30mm (Pitch 0.2mm)
Max Height 3mm
Rotation ±360°
Placement Accuracy ± 0.02mm(repeat placement accuracy
X-Y Repeatability ±0.02mm
Board Dimension(mm) Maximum 500 x 350mm
Minimum 50 x 50mm(Option)
Main Control GUI
Electricity Supply 220V
Power 4KW
Weight 1370KG

4 . Product Image :

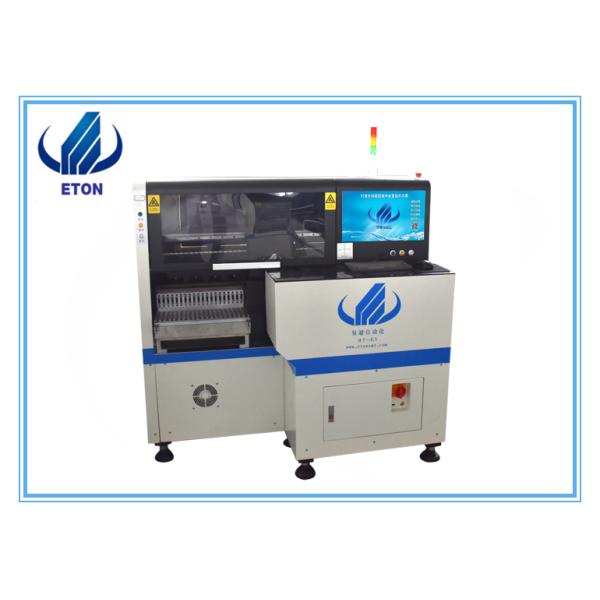

Middle High Precision E5 Chip Mounting Machine for LED Manufacturing Machine Line

5 .Company Information

ETON has launched its new Middle-speed SMT Pick and Place Machine, Equipped with a newly developed parallel 8 nozzle head, the ETON SMT Pick and Place Machine is capable of mounting a wide variety of parts and improving the mounting speed by up to 20~30%. The ETON Pick and Place Machine is robotic assembly machine for mounting electronic components on a " PCB" in the printed board mounting process. In addition to increasing the number of components mounted per cycle, ETON Pick and Place Machine also includes a new mechanism to improve the mounting speed by automatically changing the recognition sensor height.

6 .Packaging & Shipping

1)Standard wooden case package with vacuum package

2)Strong wood package for heavy and large equipment

7 .Our Services

Excellent Service .

Upgrade the software will be free for whole lifetime of machine .

Visit customer regularly and gather information .

Pre-Sales Service

* Inquiry and consulting support.

* Sample machine testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
