Panasonic NPM Pneumatic Air Filter MTNP000972AA

3-Head Air Filtration Element for SMT Pick and Place Machines

Product Overview

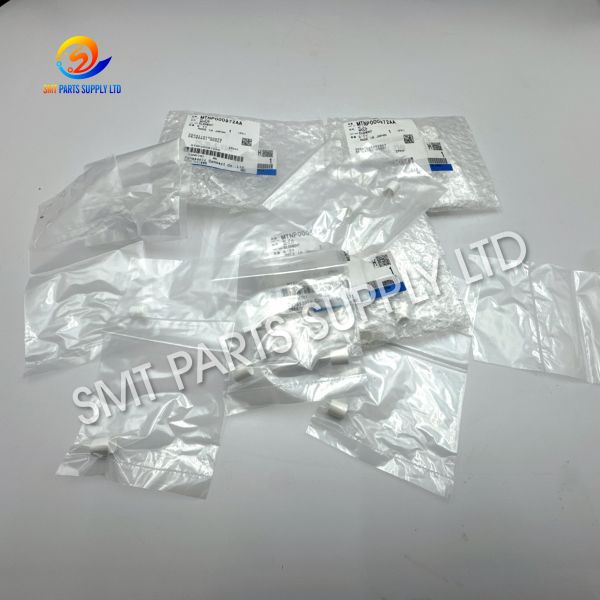

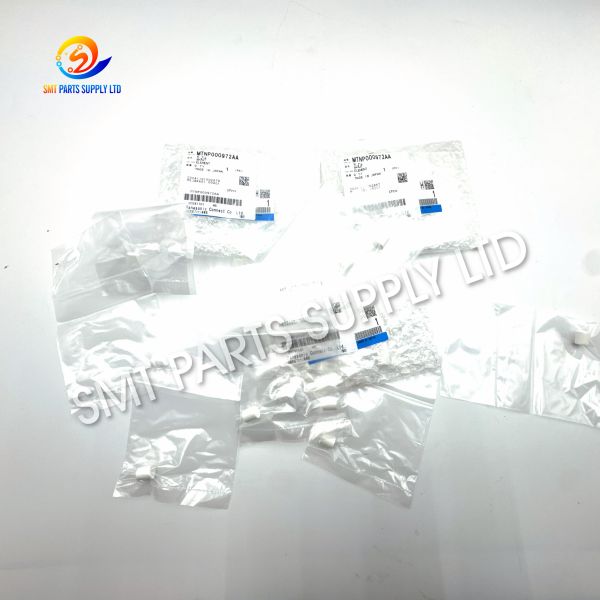

The Panasonic MTNP000972AA Pneumatic Air Filter is a critical consumable component designed specifically for the air circuit system of Panasonic NPM series SMT pick and place machines.
This filter element is used in the 3-head pneumatic configuration, where stable, clean, and dry compressed air is essential for ensuring consistent placement accuracy and long-term equipment reliability.

Manufactured by SMC, a globally recognized leader in pneumatic and automation components, this air filter is supplied under Panasonic’s internal part number MTNP000972AA. From an engineering and application perspective, it is identical in structure, material, and filtration performance to SMC model ZS-36-A-X349, and is widely recognized in the industry as interchangeable.

Unlike general-purpose air filters, this product is engineered specifically for high-precision SMT environments, where even microscopic contamination in the air supply can lead to placement errors, nozzle instability, valve malfunction, or premature wear of pneumatic components.

Role of Air Filtration in SMT Pneumatic Systems

In modern SMT production lines, compressed air is not merely an auxiliary utility—it is a core operating medium.
Panasonic NPM machines rely on pneumatic systems to drive:

• Component pickup and release

• Nozzle movement assistance

• Valve actuation

• Sensor response stability

• Air-assisted feeding and alignment functions

Any contamination in the air supply—such as dust, oil mist, moisture, or metal particles—can directly affect machine performance.

The MTNP000972AA air filter is positioned within the pneumatic circuit to:

• Remove airborne particles before they reach sensitive components

• Stabilize airflow quality and pressure

• Protect valves, solenoids, and pneumatic actuators

• Reduce unplanned downtime caused by air-related failures

In high-mix, high-speed SMT production, this filtration function is essential rather than optional.

Product Quality and Manufacturing Standards

OEM-Level Manufacturing by SMC

This air filter is produced by SMC, a world-renowned manufacturer specializing in pneumatic and automation systems. SMC components are widely used across electronics manufacturing, automotive automation, medical equipment, and semiconductor production.

Key quality characteristics include:

• Precision-molded filter housing

• High-efficiency filtration media with consistent pore structure

• Stable airflow characteristics under continuous operation

• Resistance to deformation and performance degradation over time

The filter element meets strict dimensional tolerances to ensure proper sealing and compatibility within Panasonic NPM air circuits.

Functional Equivalence: MTNP000972AA and ZS-36-A-X349

In real-world SMT maintenance and spare parts management, it is important to clearly understand part number relationships.

• MTNP000972AA is Panasonic’s internal part number

• ZS-36-A-X349 is the original SMC manufacturer’s model number

Both refer to the same physical product, produced on the same manufacturing line, using the same materials and specifications.

From a functional and technical standpoint:

• Filtration performance is identical

• Installation dimensions are the same

• Service life is equivalent

• Application scope is the same

The difference lies solely in part number labeling and supply chain identification, not in product quality or performance.

Application Scope

This air filter is designed for use in:

• Panasonic NPM series pick and place machines

• SMT production lines requiring stable pneumatic air quality

• High-speed, high-precision placement environments

• Electronics assembly plants with continuous operation cycles

It is particularly suitable for facilities where:

• Machines operate 24/7

• Fine-pitch components are frequently placed

• Air quality stability directly affects yield rates

Installation Characteristics

The MTNP000972AA filter is designed for direct replacement within the original Panasonic NPM air circuit.

Installation features include:

• Exact-fit design for original filter housing

• No modification required

• Compatible with standard maintenance procedures

• Minimal installation time

Replacement can typically be completed during routine maintenance without special tools.

Routine Maintenance and Replacement Guidelines

Why Regular Replacement Matters

Over time, even the highest-quality air filters accumulate contaminants.
As filtration media becomes saturated, airflow resistance increases, and filtration efficiency decreases.

Common risks of delayed replacement include:

• Reduced pneumatic response speed

• Unstable vacuum or pressure levels

• Increased wear on valves and actuators

• Higher failure rates in pneumatic sensors

Regular replacement of the air filter is a low-cost preventive measure that significantly reduces the risk of expensive machine downtime.

Recommended Maintenance Practices

While actual replacement intervals depend on air quality and operating conditions, general best practices include:

• Visual inspection during scheduled machine maintenance

• Replacement during major preventive maintenance cycles

• Immediate replacement if airflow instability or contamination is detected

Facilities with higher dust levels or oil-lubricated air compressors may require more frequent replacement.

Contribution to Placement Accuracy and Machine Stability

Clean air directly influences the consistency of pneumatic actions.
By maintaining stable airflow quality, the MTNP000972AA filter helps ensure:

• Consistent nozzle pickup and release timing

• Stable valve operation

• Reduced micro-vibrations in pneumatic components

• Improved repeatability in high-speed placement

Although air filters are often considered “small parts,” their impact on overall machine performance is substantial.

Reliability in Continuous Production Environments

In mass production SMT lines, unplanned stoppages can lead to:

• Production delays

• Increased labor costs

• Missed delivery schedules

• Yield loss

Using a high-quality, OEM-level air filter minimizes the risk of air-system-related failures and supports long-term operational stability.

Recommended Related SMT Spare Parts

For customers maintaining Panasonic NPM and CM series machines, the following related spare parts are commonly used together with pneumatic air filters:

• Panasonic NPM / CM series feeders (4mm to 88mm)

• Feeder motors and control boards

• Pneumatic valves and regulators

• Nozzles and nozzle holders

• Sensors related to air pressure and vacuum systems

Maintaining a balanced spare parts inventory helps reduce downtime and improve response speed during maintenance.

Why Air Filtration Should Not Be Overlooked

In SMT equipment maintenance, air filters are often replaced only after visible issues appear.
However, proactive replacement offers several advantages:

• Lower maintenance cost compared to component failure

• Extended lifespan of pneumatic systems

• Improved placement consistency

• Reduced troubleshooting time

From a total cost of ownership perspective, proper air filtration management is one of the most cost-effective maintenance strategies.

Summary

The Panasonic MTNP000972AA Pneumatic Air Filter is a vital maintenance component for ensuring clean, stable airflow in Panasonic NPM series SMT machines.
Manufactured by SMC and fully equivalent to ZS-36-A-X349, it delivers OEM-level performance, reliability, and compatibility.

Whether used as a direct Panasonic replacement or as part of a structured SMT maintenance program, this filter plays an essential role in protecting pneumatic systems, maintaining placement accuracy, and supporting long-term machine stability.
