Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility
Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility
Specifications
Brand Name :
Panasonic
Model Number :
NPM-GW
Place of Origin :
Japan
MOQ :
1 PCS
Price :
USD+negotiable+pcs
Payment Terms :
T/T
Supply Ability :
1+pcs+per days
Delivery Time :
1-7 days
Packaging Details :
2000*800*1200mm
Placement accuracy (Cpk≥1) :
±25μm/chip
Max.speed (per 1 head) :
52000 cph(0.070s/chip)
Maximum PCB dimensions(For Single Conveyor) :
L760×W 687 mm※Slide Mounting:1,050 mm/1,260 mm
Component dimensions(mm) :
0201chip～L120×W90×T40/T45 or L150×W25×T40/T 45
PCB transfer lane :
Single/Dual
Component supply :
Taping/Stick/Tray
Maximum number of components supply(Tape Width:4 mm,8 mm calculation) :
136
Number of heads :
2
Placement heads :
16/8/3
Condition :
Used Original
Description

Key features and functions
1. Support large components and large PCBs to meet the increasing demand for Electric Vehicles (EV) and DX
2. 5M process control “APC-5M” for good production and stable operation
3. Various skill-less and manpower-saving features including Auto Setting Feeder
* 5M: The variable elements of a production site: huMan, Machine, Material, Method, and Measurement


Panasonic Modular Placement Machine NPM-GW Features

Modular mounter with wide range of components/PCBs compatibility

The basic performance of this modular mounter has been improved by renewing the core units, such as the placement head and recognition camera. It now supports a wide range of components and various components supply configurations, and can also handle larger PCBs. It also supports various automation and manpower-saving functions, including the Auto Setting Feeder (ASF), which automates the components supply operation, to flexibly meet the requirements of each mounting site.

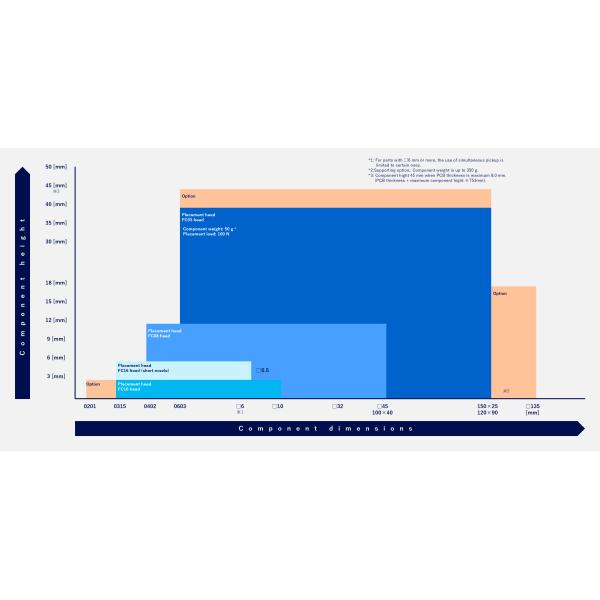

Supported components range

Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility

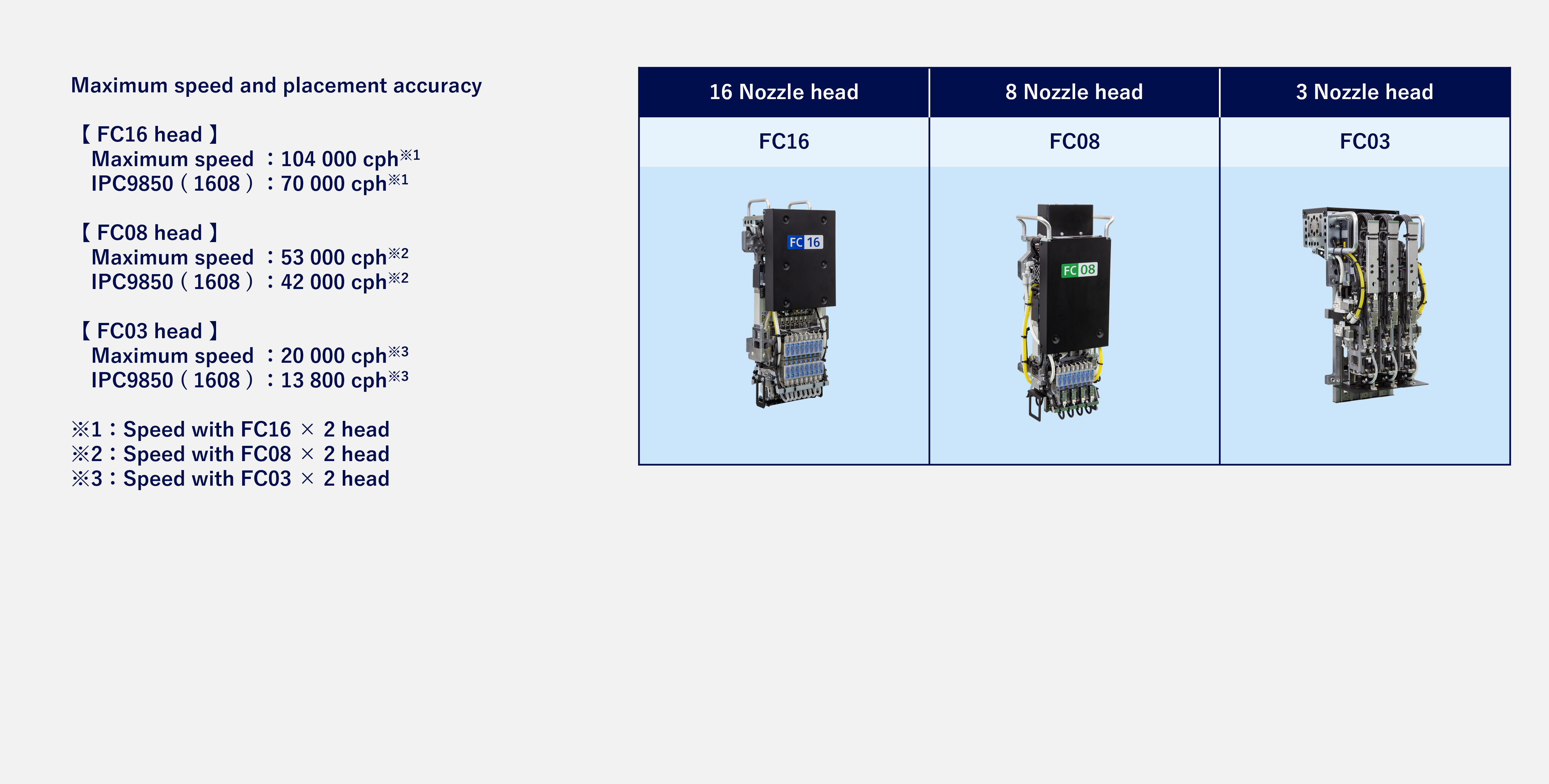

Maximum speed and placement accuracy

Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility

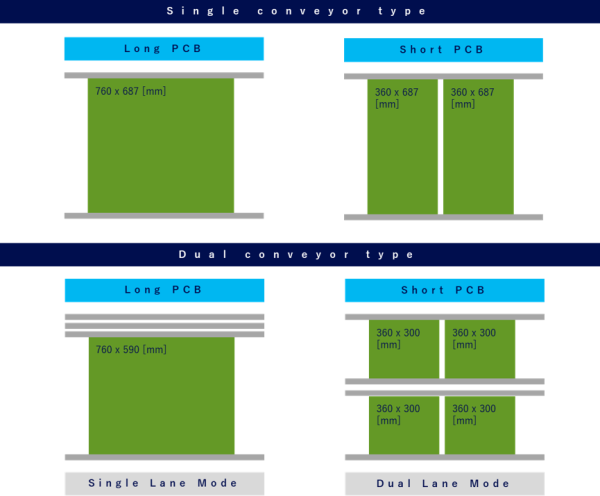

Supported PCB size

Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility

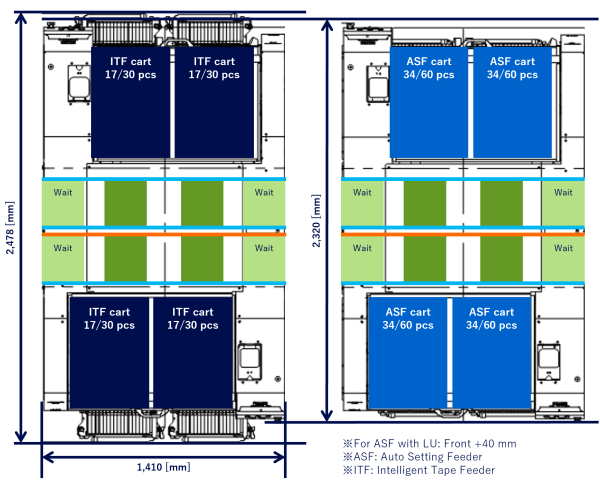

Configuration example

Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility

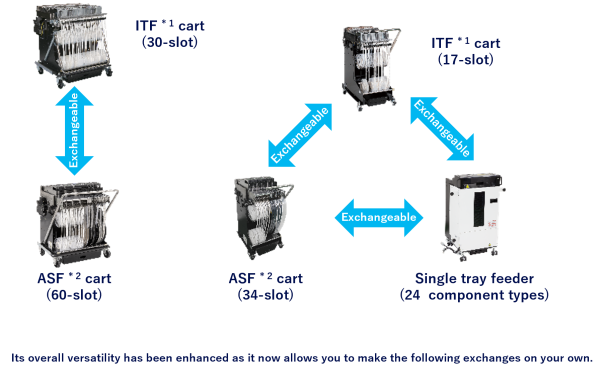

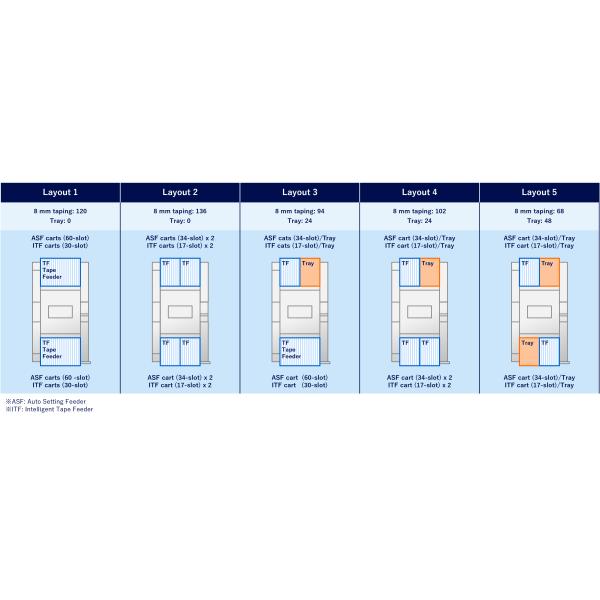

Example configuration

Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility

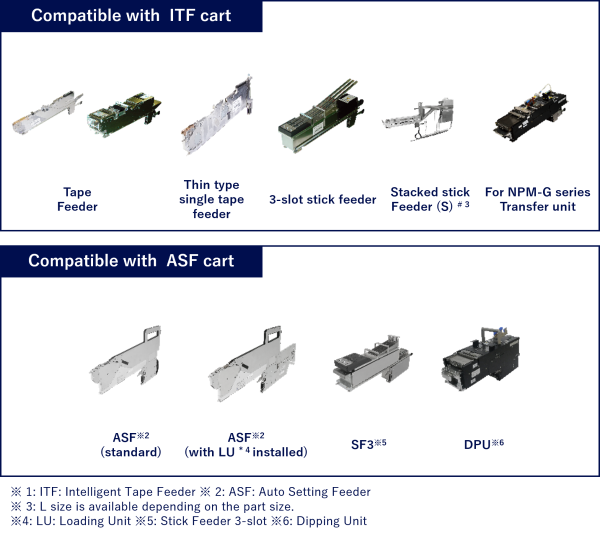

Component supply units

Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility

Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility
