Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding
Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding
Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding
Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding
Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding
Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding
Specifications
Brand Name :
GS
Model Number :
GS-SAT2112
Place of Origin :
China
MOQ :
1/PCS
Price :
USD+negotiable+pcs
Payment Terms :
T/T
Supply Ability :
1+pcs+per days
Delivery Time :
1-7 days
Packaging Details :
1600*90*1250mm
Model :
GS-SAT2109
Overall dimensions (length * width * height) :
1500*90*1140mm
Weight :
40KG
Working voltage :
AC 220V
Gas source requirements :
0.5-0.7Mpa
Maximum current :
3A
Feeding speed :
2s/Pcs
Operation panel :
1.54-inch OLED display screen
Pipe replacement time :
<6S
Channel :
Dual-channel
Pin bending function :
Optional separately(Default none)
Plastic surgery function :
Optional separately(Default none)
Lifting function :
Optional separately(Default none)
Foot cutting function :
Optional separately(Default none)
Adapt to the length of the material pipe :
400-600mm
Adapt to the height of the material pipe :
10mm-45mm
Adapt to the width of the material pipe :
10mm-28mm
Condition :
New
Description

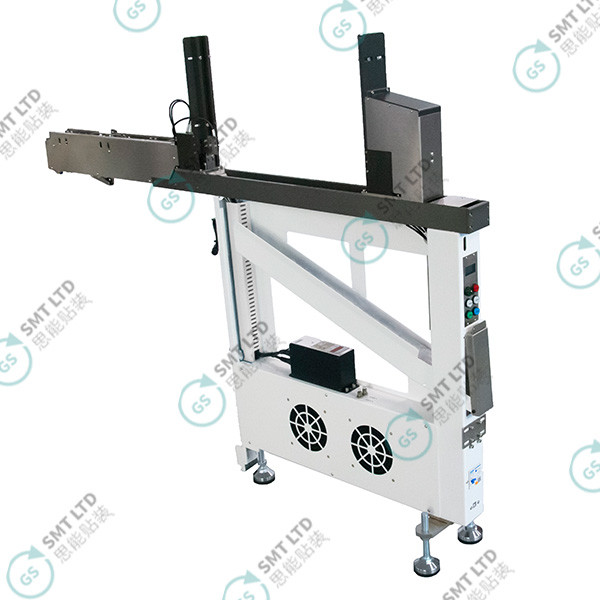

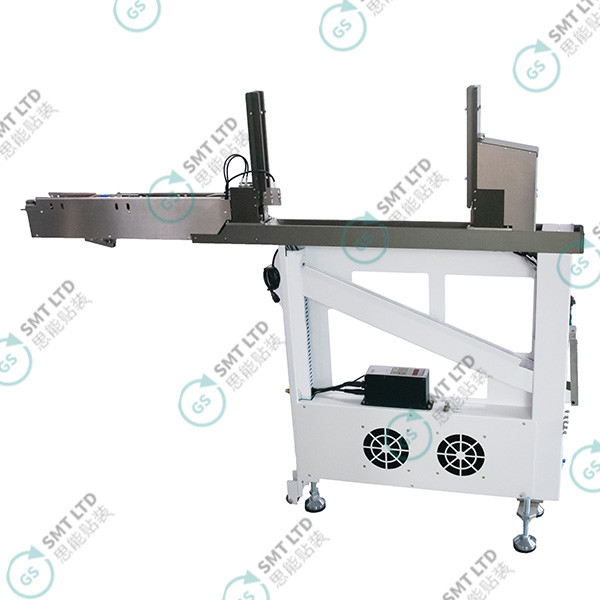

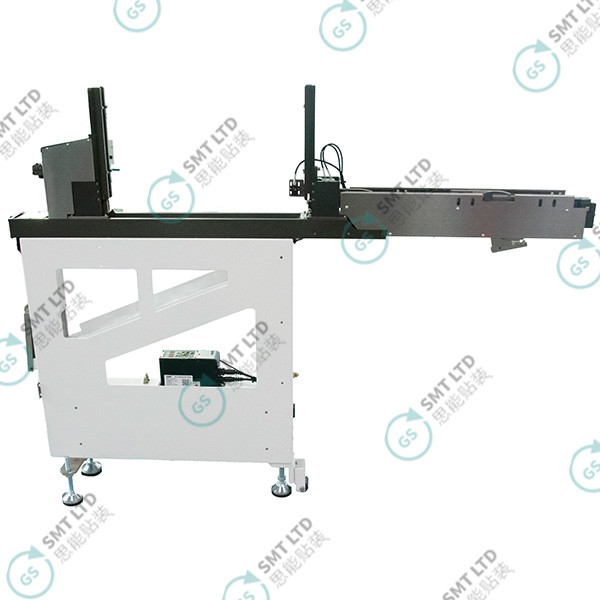

Tubular Feeder GS-SAT2109/2112(Rail vibration feeding)

The tubular feeder is a tubular electronic component supply device that supplies tube-mounted electronic components to the insertion machine one by one at a specified time through vibration and air blowing.

Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding


Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding


Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding

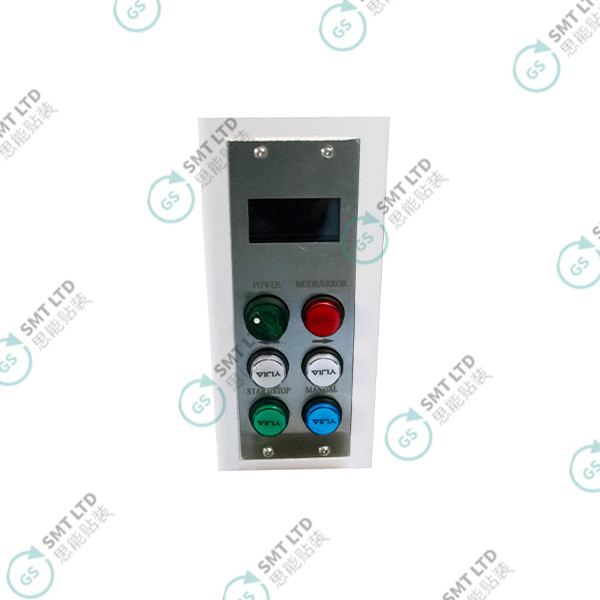

Key Panel

Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding

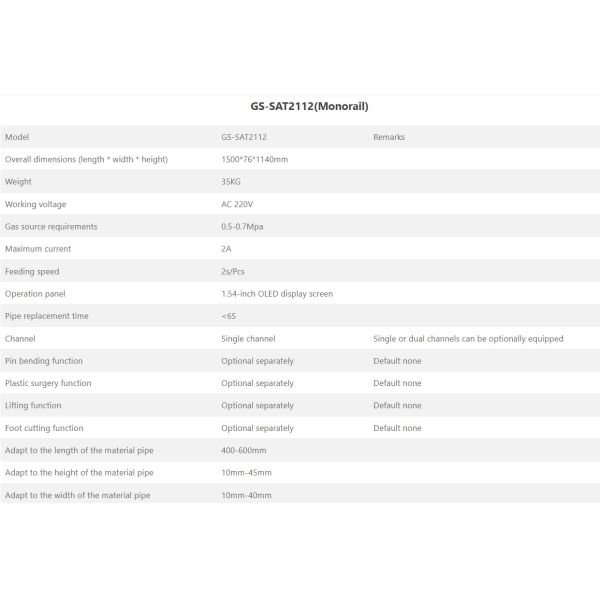

Specifications and Parameters

Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding

Dual-channel Tubular Feeder with 2s/Pcs Feeding Speed and OLED Display Screen for SMT Rail Vibration Feeding

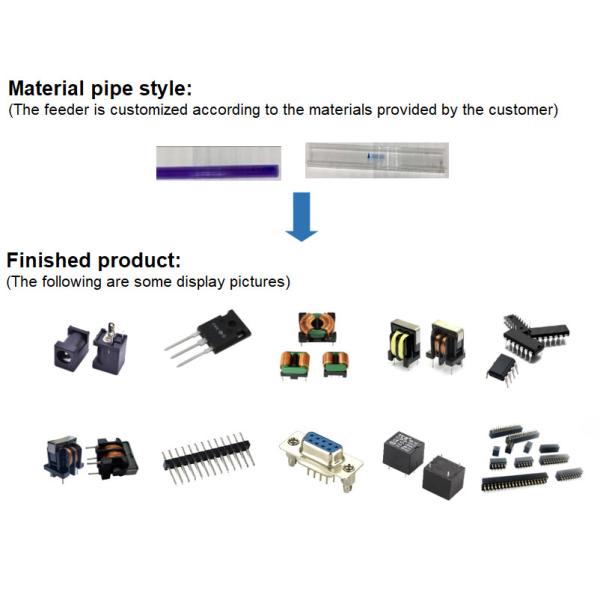

If there are special material dimensions, you can contact our company for consultation and to provide solutions and customize exclusive feeders.
