GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width
GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width
GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width
GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width
GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width
GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width
Specifications
Brand Name :
GS
Model Number :
GS-RDD2105(L)
Place of Origin :
China
MOQ :
1 PCS
Price :
USD+negotiable+pcs
Payment Terms :
T/T
Supply Ability :
1+pcs+per days
Delivery Time :
1-7 days
Packaging Details :
850*85*170mm
Feeder type :
GS-RDD2105（L）
explain :
Feeder reference material dimensions(mm)
Material width :
≤14
Material length :
≤14
Material height :
≤30
Pin spacing 1 :
Standard knife：≤10(Default standard knife)
Pin spacing 2 :
Wide knife：8-13(Optional)
Pin spacing 3 :
Big knife：8-23(Optional)
Pin diameter :
The largest1.0
Hole spacing :
12.7or15(Default12.7)
Adjustable range of the cutting knife :
0-6(Based onW+2)
The distance from the main body to the bending point :
≥1.5
Braided tape height :
18
The minimum position dimension of the foot cutter :
2(The minimum residual exposed size after the pins are cut)
Description

[BENDING] VERTICAL FEEDER GS-RDD2105(L)

The Vertical feeder is an electronic component supply device that keeps a certain interval and sends out the electronic components of the Vertical tape packaging one by one at a specified time, cuts the lead wires, and supplies them to the insertion machine.

GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width

GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width

GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width

Display at the bend

GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width

GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width

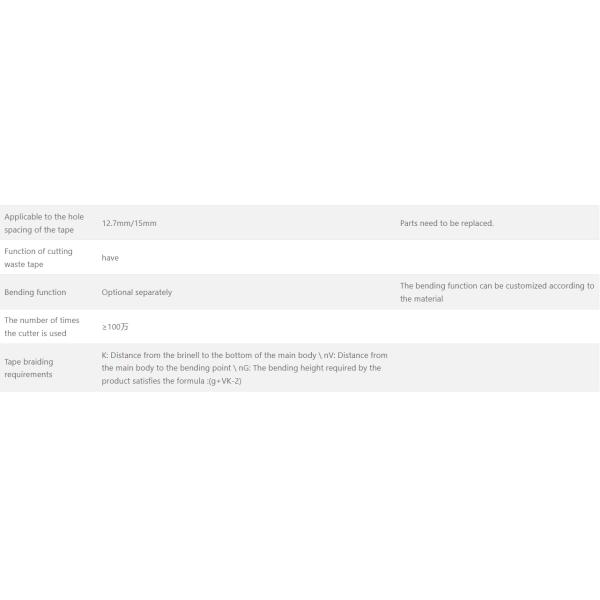

Specifications and Parameters

GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width

GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width

Radial feeder is suitable for the specifications of braided materials

GS-RDD2105L Radial Feeder for SMT Components ≤14mm Width

If there are special material dimensions, you can contact our company for consultation and to provide solutions and customize exclusive feeders.
