Specifications
Brand Name :
Scienscope
Model Number :
X-ray Component Counter AXC-830
MOQ :
1 set of machine or mixed order is also acceptable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
5-8 Working Days
Packaging Details :
Standard export boxes and sturdy hardwood packages are both options
Description

Scienscope X-ray AXC-830 Component Counter

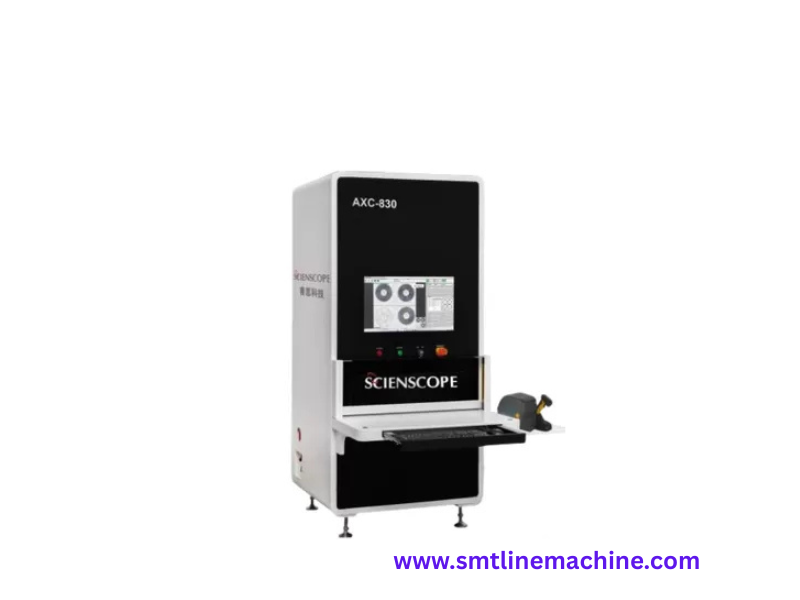

The Scienscope X-ray AXC-830 Component Counter is a sophisticated component counter that uses X-ray technology designed specifically for electronics manufacturing.
It assists in overseeing and calculating the number of tiny components on reels with speed and precision, ensuring you maintain an accurate inventory. By using the Scienscope X-ray AXC-830 Component Counter, it minimizes interruptions in production and lowers the chance of errors from manual handling, and contributes to a more efficient workflow.
Scienscope X-ray AXC-830 Component Counter
Scienscope X-ray AXC-830 Component Counter Specifications:

Product Model

AXC-830

Weight

655 KG

Dimensions (L W H)

1160 mm * 1375 mm * 1920 mm

Power Supply

 220 V, 50-60 Hz

Total Power

 1200 W

Light Tube Voltage

 50 kV

Tube Current

 0.4 mA

Radiation Quantity

 < 1 μSv/hr

Camera

 17" HD Flat Panel

Algorithm

 Intelligent FIX Algorithm

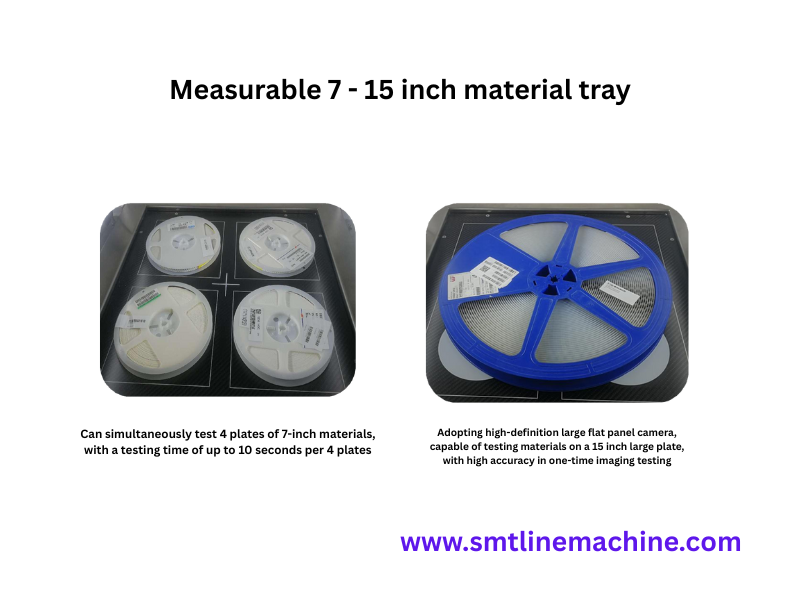

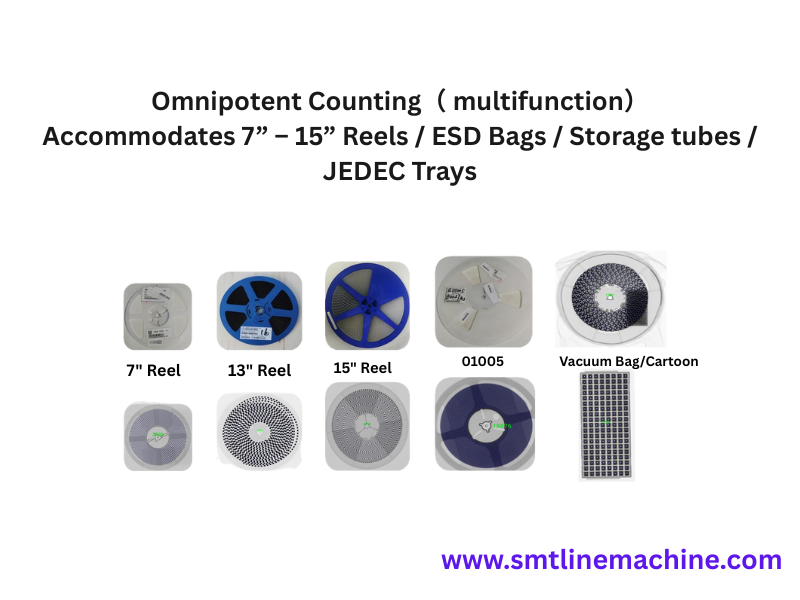

Reel Dimensions

 7-15 inches

Reel Height

 3-80 mm

Minimum Material Dimension

 01005

Testing Time

 7 inches: 9 sec / 4 discs; 13-15 inches: 8 sec / disc

Test Accuracy

 99.99%

Barcode

 AUTO

Inline Storage & MES System

 OK

Barcode Printer

 OK

Door Access Control

 Electromagnetic induction lock

Security Access Control

 Automatic
Scienscope X-ray AXC-830 Component Counter

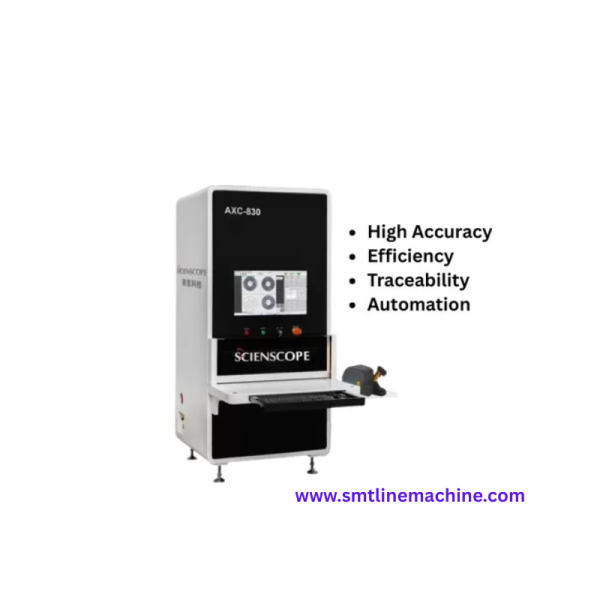

Key Features and Advantages
  • High Accuracy: The Scienscope X-ray AXC-830 Component Counter offers exact counts of electronic components, which leads to fewer inventory discrepancies.
  • Efficiency: The Scienscope X-ray AXC-830 Component Counter streamlines the counting task, which saves both time and manpower when compared to counting by hand.

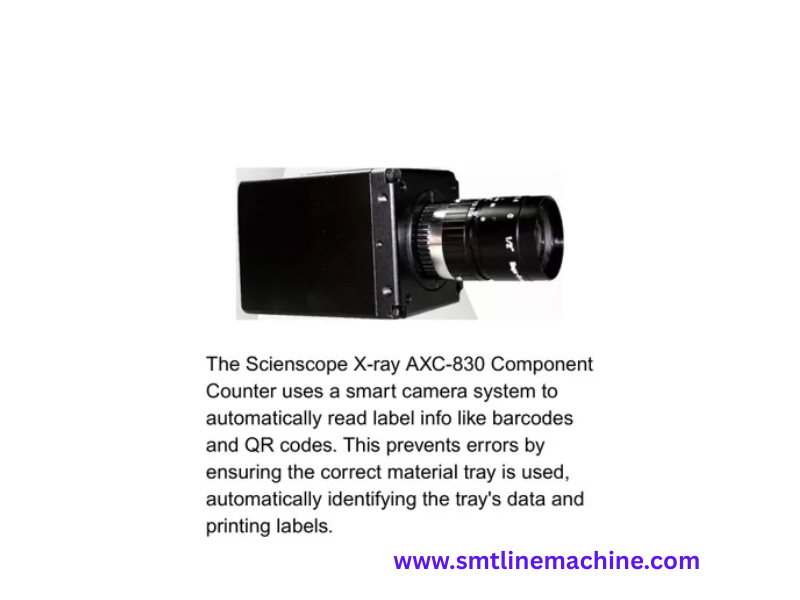

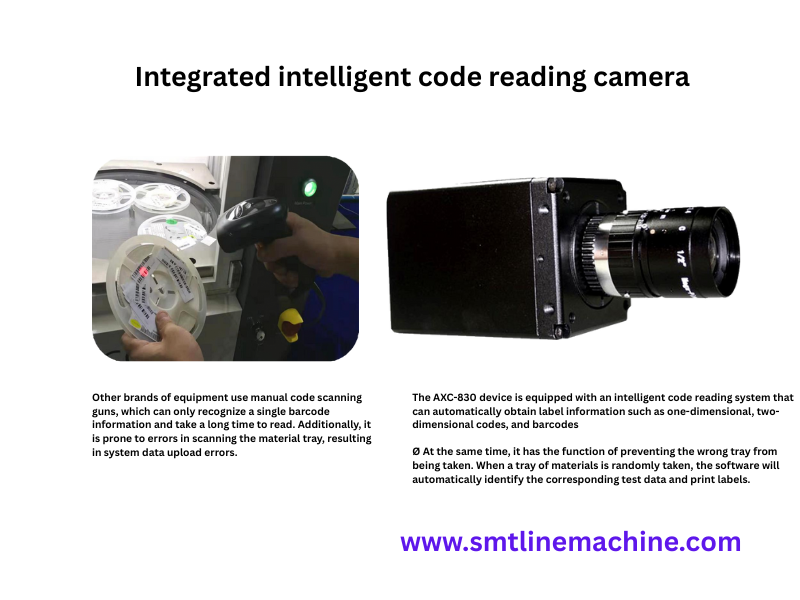

  • Traceability: The Scienscope X-ray AXC-830 Component Counter includes a built-in barcode camera to guarantee complete tracking and lessen the possibility of manual data entry mistakes.
  • Automation: The Scienscope X-ray AXC-830 Component Counter automates tasks like loading, counting, and even printing labels to promote effective inventory control.

Scienscope X-ray AXC-830 Component Counter

How the Scienscope X-ray AXC-830 Component Counter Functions:

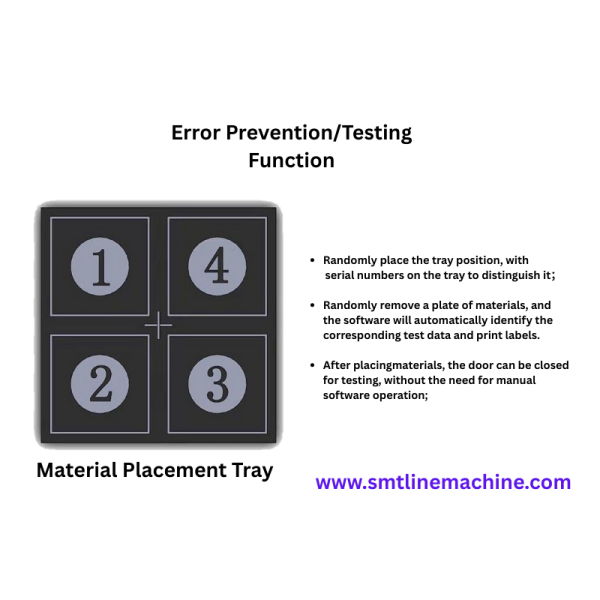

Simply insert the reels of components into the device, secure the door, and the Scienscope AXC-830 will use X-rays to determine the quantity of parts contained within.
The process is fully automated. Upon completion, Scienscope X-ray AXC-830 Component Counter provides the count, brings your inventory records up to date, and generates labels for the reels, simplifying the monitoring of your components and decreasing the likelihood of errors.

Why Choose Our Scienscope X-ray AXC-830 Component Counter Equipment?

Choosing our Scienscope X-ray AXC-830 Component Counter equipment means partnering with a company that has a long history of expertise in the field. We're dedicated to offering affordable X-ray solutions that don't compromise on quality or effectiveness.

The Scienscope X-ray AXC-830 Component Counter exemplifies this, providing exceptional accuracy, efficiency, and dependability. We serve customers worldwide, backing our products with a skilled support team focused on your success. By investing in our component counting technology, you're investing in a more precise, efficient, and secure future for your manufacturing processes.
