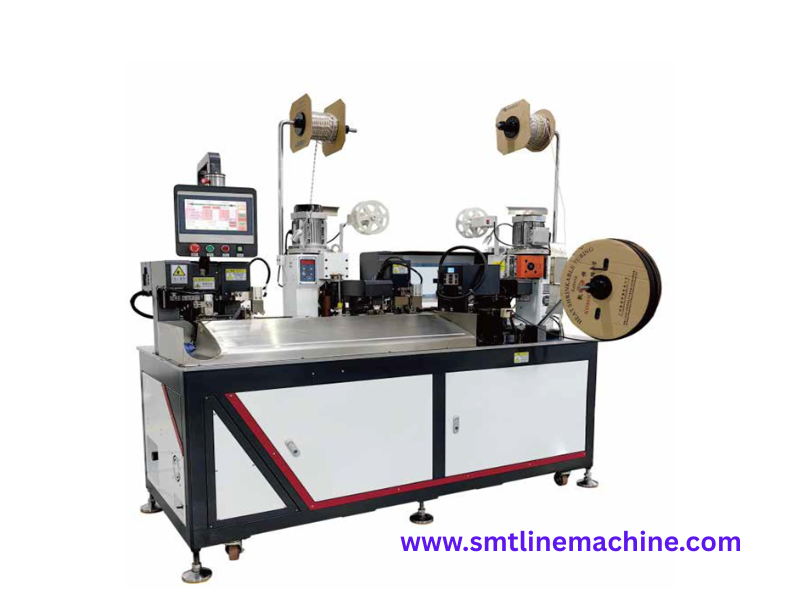

SA-8050B Fully automatic double-head crimping heat shrink tubing machine

SA-8050B is a fully automatic, double-head crimping and heat shrink tubing machine designed for high-precision wire processing. It integrates cutting, stripping, threading, terminal crimping, and heat shrinking into a single, efficient operation. This machine is important to maximize productivity while ensuring consistent quality, making it an ideal solution for businesses looking to streamline their wiring processes.

SA-8050B is a fully automatic, double-head crimping and heat shrink tubing machine. Specifications:

​

SA-8050B is a fully automatic, double-head crimping and heat shrink tubing machine. Features:

• Premium-Grade Components: The SA-8050B is built with high-end, high-precision components sourced from reputable manufacturers. These components are selected for their durability, reliability, and ability to maintain consistent performance under demanding conditions. This ensures the machine's longevity and reduces the risk of costly downtime.
• Intuitive User Interface: The machine features a user-friendly touch screen interface powered by icon-based KINCO software. This intuitive design simplifies operation, allowing operators to quickly learn and master the machine's functions. The touch screen provides real-time feedback on the machine's status, making it easy to monitor performance and troubleshoot any issues that may arise.
• Integrated Functionality: The SA-8050B is capable of performing a complete range of wire processing tasks in a single, automated cycle. This includes precisely cutting wires to the specified length, stripping the insulation from the ends, threading the wires through heat shrink tubing, and crimping terminals securely onto the wire ends. This integrated functionality eliminates the need for multiple machines and manual handling, streamlining the production process and reducing the risk of errors.
• Advanced Servo Control System: The machine utilizes a sophisticated servo control system to ensure precise and repeatable motion control. This system enables high-speed operation while maintaining exceptional product quality. The servo control system also allows for precise adjustment of parameters such as cutting length, stripping length, and crimping force, ensuring optimal results for a wide range of wire types and terminal sizes.
• Versatile Wire Size Compatibility: The SA-8050B is designed to accommodate a wide range of wire sizes, from AWG#24 to AWG#8. This versatility makes it suitable for a variety of applications, from delicate electronic assemblies to robust automotive wiring harnesses. The machine's adjustable settings allow operators to easily switch between different wire sizes, minimizing downtime and maximizing productivity.
• Adjustable Length Parameters: The machine offers a high degree of flexibility in terms of adjustable length parameters. It supports cutting lengths from 300mm to 9999mm, stripping lengths from 1-15mm, and heat shrink tubing lengths from 15mm to 35mm. This adjustability allows operators to tailor the machine's performance to meet the specific requirements of each job, ensuring optimal results every time.
• Comprehensive Detection System: To ensure consistent quality and minimize errors, the SA-8050B is equipped with a comprehensive detection system. This system includes sensors that monitor for wire knots, wire presence, proper terminal crimping, and adequate air pressure. If any issues are detected, the machine automatically stops, preventing defective products from being produced and minimizing waste.

SA-8050B is a fully automatic, double-head crimping and heat shrink tubing machine. Advantages:

• Enhanced Operational Efficiency: By automating multiple wire processing tasks, the SA-8050B significantly reduces production time and labor costs. This allows businesses to increase their output without having to invest in additional manpower or equipment.
• High Production Throughput: With a processing capacity of 1800-2300 articles per hour, the SA-8050B enables businesses to meet demanding production schedules and fulfill large orders quickly and efficiently.
• Reduced Labor Dependency: The machine's automated operation minimizes the need for manual labor, freeing up employees to focus on other critical tasks. This not only reduces labor costs but also helps to improve overall productivity and employee satisfaction.
• Consistent Product Quality: The combination of servo control and a comprehensive detection system ensures that every wire assembly produced by the SA-8050B meets the highest standards of quality. This consistency reduces the risk of defects and improves customer satisfaction.
• Adaptability to Diverse Applications: The machine's versatility and adjustable settings make it suitable for a wide range of applications across various industries. This adaptability allows businesses to use the machine for multiple projects, maximizing their return on investment.
• Simplified Operation and Maintenance: The intuitive touch screen interface and robust design of the SA-8050B make it easy to operate and maintain. This reduces the need for specialized training and minimizes downtime, ensuring that the machine is always ready to perform.

Common Applications/Uses

The SA-8050B machine is a versatile solution for a wide range of industries and applications, including:

• Automotive Wiring Harnesses: Manufacturing complex wiring harnesses for automobiles, trucks, and other vehicles.
• Consumer Electronics: Producing wire assemblies for a variety of consumer electronic devices, such as televisions, computers, and mobile phones.
• Appliance Manufacturing: Creating wiring for household appliances, such as refrigerators, washing machines, and ovens.
• Telecommunications Equipment: Assembling cables and wiring for telecommunications equipment, such as routers, switches, and modems.
• Industrial Control Systems: Wiring control panels and other components for industrial machinery and automation systems.
• Aerospace Industry: Manufacturing high-reliability wiring harnesses for aircraft and spacecraft.
• Medical Devices: Producing wire assemblies for medical devices, such as diagnostic equipment and patient monitoring systems.

How It Works

1. Automated Wire Feeding: Wires are automatically fed into the machine from a spool or feeder system, ensuring a continuous and uninterrupted supply of materials.
2. Precision Cutting and Stripping: The machine precisely cuts the wires to the specified length using a high-speed cutting mechanism. Simultaneously, the insulation is stripped from the ends of the wires, preparing them for terminal crimping.
3. Automated Threading Process: The stripped wire ends are automatically threaded through the heat shrink tubing, ensuring proper placement and alignment.
4. High-Force Terminal Crimping: Terminals are automatically crimped onto the wire ends using a high-force crimping mechanism. This ensures a secure and reliable electrical connection.
5. Controlled Heat Shrinking: The heat shrink tubing is heated to a precise temperature using a controlled heating system. This causes the tubing to shrink tightly around the wire and terminal, creating a secure and insulated connection.
6. Real-Time Detection and Monitoring: Throughout the entire process, the machine's detection system continuously monitors for wire knots, wire presence, proper terminal crimping, and adequate air pressure. If any issues are detected, the machine immediately stops, preventing defective products from being produced.

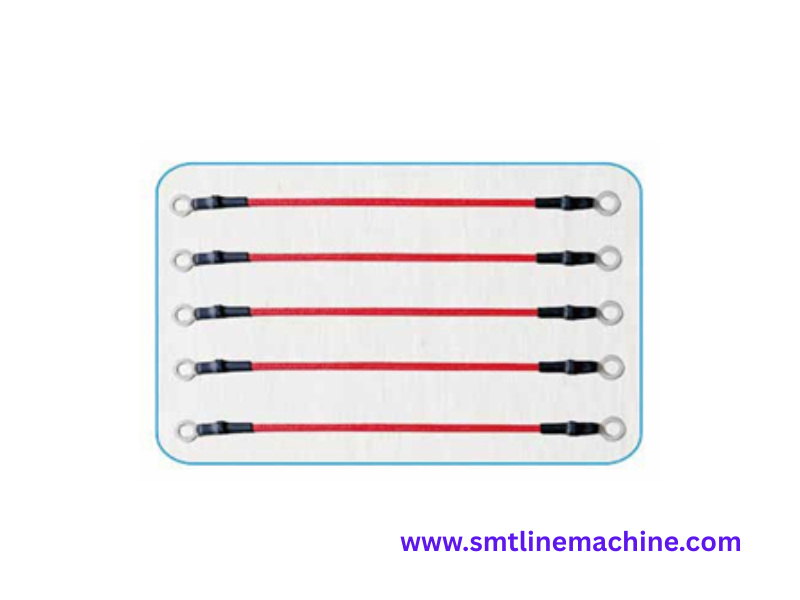

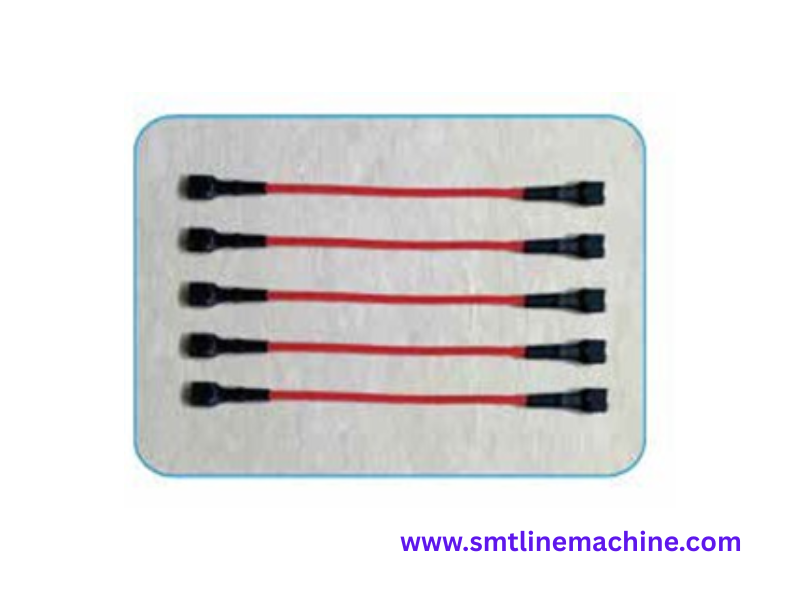

7. Automated Output and Collection: Finished wire assemblies are automatically ejected from the machine and collected in a designated area, ready for further processing or packaging.

About the Product:

The SA-8050B Automatic Double Head Crimping Heat Shrink Tubing Machine is a cutting-edge solution that offers unparalleled efficiency, quality, and versatility for wire processing applications. Its advanced features, robust design, and user-friendly interface make it an ideal investment for businesses looking to streamline their operations, reduce costs, and improve product quality. Whether you're in the automotive, electronics, telecommunications, or any other industry that relies on wire processing, the SA-8050B is a valuable asset that can help you achieve your production goals and stay ahead of the competition.

For inquiries, please contact us at +8613537875415 or Lizzy@smtlinemachine.com. Visit us at Xintian Industrial Area, Baoan, Shenzhen City, China.

Packaging and Delivery Information:

Delivery: Expect your order to arrive within 5-8 business days, though this timeframe can vary based on the quantity ordered.

Minimum Order: We accept orders for a single machine or mixed orders to suit your needs.

Transportation: Products are shipped either in bulk or via containers, depending on the order size and destination.

Payment Terms: Flexible payment options are available, including L/C, D/A, D/P, T/T, Western Union, and MoneyGram.

Price: Prices are negotiable to ensure you receive the best possible value.

Packaging: We offer both standard export boxes and robust hardwood packages to ensure your order arrives safely and securely.
