RY-K388: Automatic Double-Head Pressure and insertion Shell Waterproof Bolt Machine

RY-K388: Automatic Double-Head Pressure and insertion Shell Waterproof Bolt Machine ​ is designed for efficient wire processing, specifically to automate cutting, stripping, crimping, and threading waterproof bolts. It also handles threading rubber shells and performs essential testing. This machine streamlines the creation of wire harnesses with waterproof connections, ensuring consistent quality and high output in manufacturing environments.

RY-K388: Automatic Double-Head Pressure and insertion Shell Waterproof Bolt Machine​ Uses:

RY-K388: Automatic Double-Head Pressure and insertion Shell Waterproof Bolt Machine​ is essential for industries requiring dependable waterproof connections in their products. Typical applications span automotive wiring, electronics assembly, and appliance production, where sealing against environmental factors is crucial. It significantly boosts productivity by automating multiple steps in the wire termination process.

RY-K388: Automatic Double-Head Pressure and insertion Shell Waterproof Bolt Machine Specification:

How does it work?

RY-K388: Automatic Double-Head Pressure and insertion Shell Waterproof Bolt Machine​ operates through a series of automated steps to efficiently produce waterproof wire connections. Here's a breakdown of the typical process:

1. Wire Feeding and Cutting : The machine starts by automatically feeding wires from a spool. The wires are then cut to the specified length, which can be programmed into the machine's control system and typically ranges from 80mm to 600mm.

2. Stripping : After cutting, the ends of the wires are stripped of insulation. The stripping length is precisely controlled, usually adjustable up to 10.0 mm, to ensure proper contact and secure connections.

3. Terminal Crimping : The stripped wire ends are then fed into the crimping stations. Here, terminals are automatically attached to the wires using a pressure system. The machine ensures that the crimping force is accurately applied to create a secure and reliable electrical connection.

4. Waterproof Bolt and Shell Insertion : This is a key step where the machine inserts waterproof bolts and threads rubber shells onto the wire ends. The double-head design allows for simultaneous processing of both ends of the wire, doubling the efficiency.

5. Threading : The machine threads the waterproof bolts, ensuring they are correctly aligned and tightened to provide a waterproof seal.

6. Quality Control and Detection : Throughout the process, the machine employs various detection systems to ensure quality. These include visual inspection to check for any defects, missing line detection to ensure all components are present, air pressure detection to monitor the pneumatic systems, paper delivery detection to ensure materials are correctly fed, and pressure detection to verify proper crimping and insertion forces.

7. Testing: The machine may also include testing capabilities to ensure the integrity of the waterproof seal and the electrical connection. This can involve air pressure tests or visual checks.

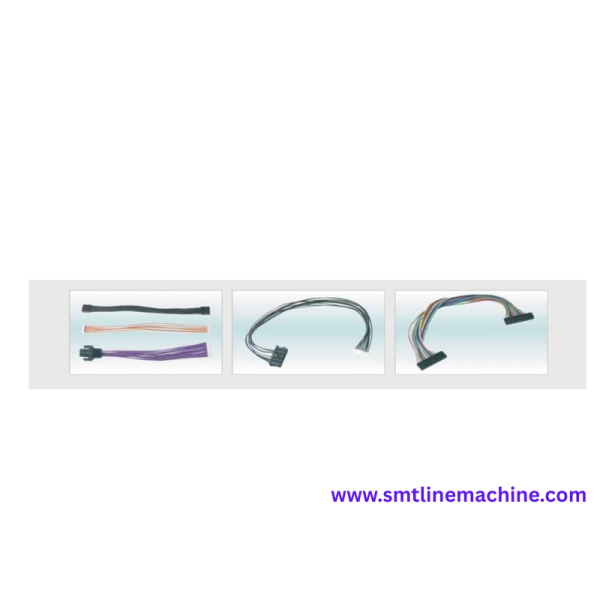

8. Output and Collection: Finally, the completed wire harnesses with waterproof connections are automatically output and collected, ready for further assembly or packaging.

RY-K388: Automatic Double-Head Pressure and insertion Shell Waterproof Bolt Machine​ Features:

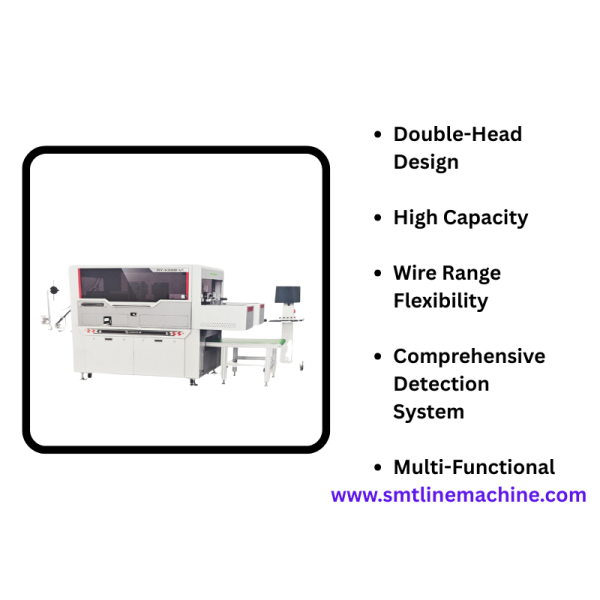

• Double-Head Design: Processes both ends of a wire simultaneously, maximizing throughput.

• High Capacity: Capable of processing 2000-2500 pieces per hour, accommodating high-volume demands.

• Wire Range Flexibility: Handles wires ranging from 0.35 to 2 square millimeters.

• Comprehensive Detection System: Includes visual inspection, missing line detection, air pressure monitoring, paper delivery verification, and pressure sensing to ensure quality control.

• Multi-Functional: Integrates cutting, stripping, crimping, and threading into a single automated process.

RY-K388: Automatic Double-Head Pressure and insertion Shell Waterproof Bolt Machine​ Advantages:

• Enhanced Production Speed: Automates multiple processes, significantly increasing production rates.

• Consistent Connection Quality: Ensures reliable and uniform connections, reducing defects.

• Reduced Labor Costs: Automation decreases the need for manual labor, lowering operational expenses.

• Streamlined Production: Combines several functions into one machine, simplifying the manufacturing process.

• Improved Quality Control: Detection systems minimize errors and maintain high-quality output, reducing waste and enhancing efficiency.

Product About:

RY-K388: Automatic Double-Head Pressure and insertion Shell Waterproof Bolt Machine​ is a key tool for manufacturers needing to produce many waterproof wire connections. Its wide range of features and automation capabilities offer a cost-effective way to boost production speed and improve quality.

For inquiries, please contact us at +8613537875415 or Lizzy@smtlinemachine.com. Visit us at Xintian Industrial Area, Baoan, Shenzhen City, China.

Packaging and Delivery Information:

Delivery: Expect your order to arrive within 5-8 business days, though this timeframe can vary based on the quantity ordered.

Minimum Order: We accept orders for a single machine or mixed orders to suit your needs.

Transportation: Products are shipped either in bulk or via containers, depending on the order size and destination.

Payment Terms: Flexible payment options are available, including L/C, D/A, D/P, T/T, Western Union, and MoneyGram.

Price: Prices are negotiable to ensure you receive the best possible value.

Packaging: We offer both standard export boxes and robust hardwood packages to ensure your order arrives safely and securely.
