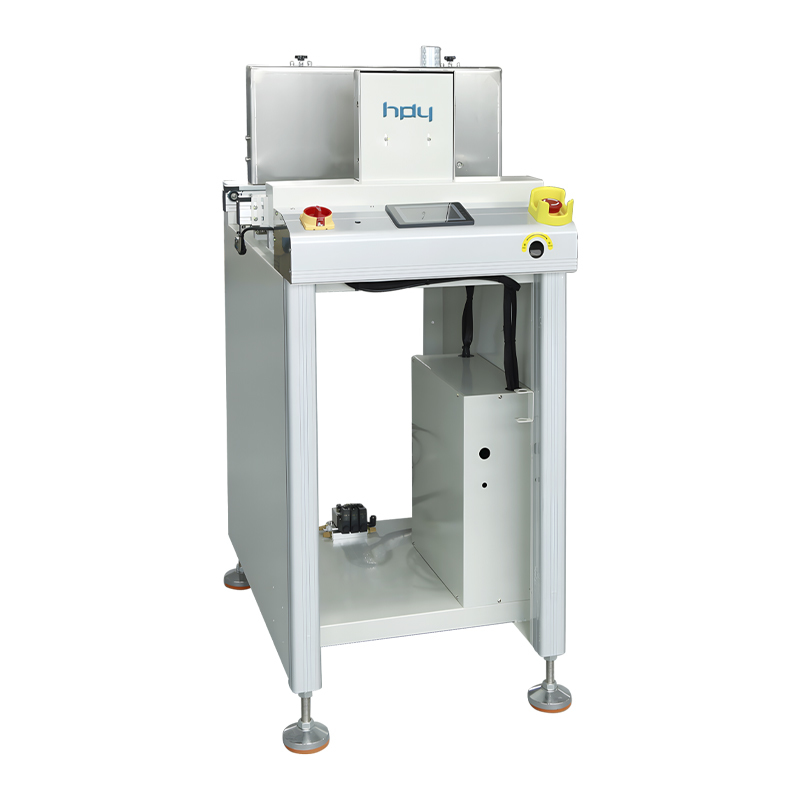

Automatic Stacked PCB Feeder HDY-J350DS

Product Description: Stacked PCB Feeder (HDY-J350DS) – Automatic SMT Board Loading Machine
Purpose

This equipment is designed for feeding bare PCBs (printed circuit boards) into SMT production lines. It automatically feeds and aligns PCBs from a stacked magazine, ensuring smooth, continuous input to downstream machines such as pick-and-place, solder paste printers, or reflow ovens.

Key Specifications
Parameter Specification
Dimensions (L)600 * (W)650 * (H)1195 mm
PCB Size Range (L50*W50) ~ (L500*W350) mm
Body Structure Steel frame, bent from δ1.5 cold-rolled plate, surface powder-coated (computer white)
Conveyor Drive Stepper motor
Flipping Mechanism Parts Made of aluminum alloy
Conveyor Belt 4mm flat belt, speed adjustable
Pneumatic Components Cylinder + Solenoid valve
Auxiliary Device Oil-water separator
Warning System 3-color warning light (one set)
Control System PLC + 3 sensors
Power Supply AC 220V / 50Hz
Air Pressure Requirement ≥ 0.6 MPa
Power Consumption 0.05 kW
Electrical Accessories Mean Well power supply, Omron relay
Stack Height 200 mm (max. PCB stack capacity)
Why Choose This PCB Feeder?

High-Capacity Stack Design

With a 200mm stack height, this feeder can hold a large volume of PCBs, reducing manual loading frequency and increasing uptime for your SMT line.

Precise & Automated Feeding

Equipped with a PLC controller and 3 sensors, it ensures accurate PCB detection, alignment, and feeding. Stepper motor drive allows smooth, adjustable-speed operation to match your line pace.

Durable & Stable Construction

Cold-rolled steel frame with powder coating resists corrosion and wear. Aluminum alloy flipping parts reduce weight and mechanical stress, enhancing longevity.

User-Friendly Operation

3-color warning light provides instant status feedback. Oil-water separator maintains clean air for reliable pneumatic performance. Simple control panel minimizes operator training.

Plug-and-Play Integration

Standard dimensions and pre-wired electrical/pneumatic interfaces allow fast connection to existing SMT lines — no complex installation required.

Technical Highlights Summary
Feature Benefit
Steel frame + powder coating Long service life, rust-resistant
Stepper motor + speed control Precise, adjustable feeding speed
PLC + 3 sensors Reliable automatic feeding cycle
Aluminum alloy flipper Lightweight, reduced wear
3-color warning light Clear operational status at a glance
Oil-water separator Clean air supply for pneumatic system
Mean Well power supply Stable, safe electrical performance
Omron relay High-reliability switching component
200mm stack height High-capacity, less manual intervention
Ideal Applications
  • Front-end PCB feeding for SMT assembly lines
  • High-mix, high-volume production environments
  • Factories requiring automated, reliable board loading
  • EMS providers, electronics manufacturers, and contract assemblers
