Offline Dual Table Universal PCB Separator with Dual Spindles
Offline Dual Table Universal PCB Separator with Dual Spindles
Offline Dual Table Universal PCB Separator with Dual Spindles
Offline Dual Table Universal PCB Separator with Dual Spindles
Specifications
Brand Name :
Winsmart
Model Number :
SMTAD1
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
USD10000-30000/unit
Payment Terms :
T/T
Supply Ability :
300 units/year
Delivery Time :
10-20 working days
Packaging Details :
plywood case
Cutting Thickness :
Up to 3mm PCB thickness
Application :
Used in electronics manufacturing and prototyping
Weight :
Approximately 700 kg
Portability :
Lightweight and portable design
Material :
High-quality steel and aluminum alloy
Safety Features :
Blade guard and locking mechanism
Warranty :
1 year manufacturer warranty
Working area :
400x400mm
Blade Type :
Routing bit and saw blade
Function :
Separates printed circuit boards (PCBs) from panels
Description

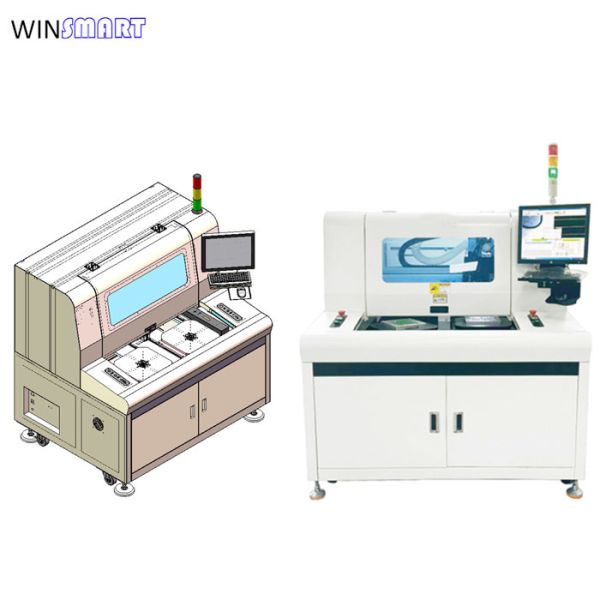

Offline Dual Table Universal PCB Separator with Dual Spindles
Offline Dual Table Universal PCB Separator Description:

This machine is designed for the panel with both V-cut and milling bridges connection. It comes with dual tables and dual spindles, one spindle for V-cut boards, another spindle for tab boards. It is widely used in electronics manufacturing, automotive, medical devices, LED lighting, and telecommunications. It prevents cracks, delamination, and micro-damage, making it ideal for high-reliability electronics.

Offline Dual Table Universal PCB Separator with Dual Spindles

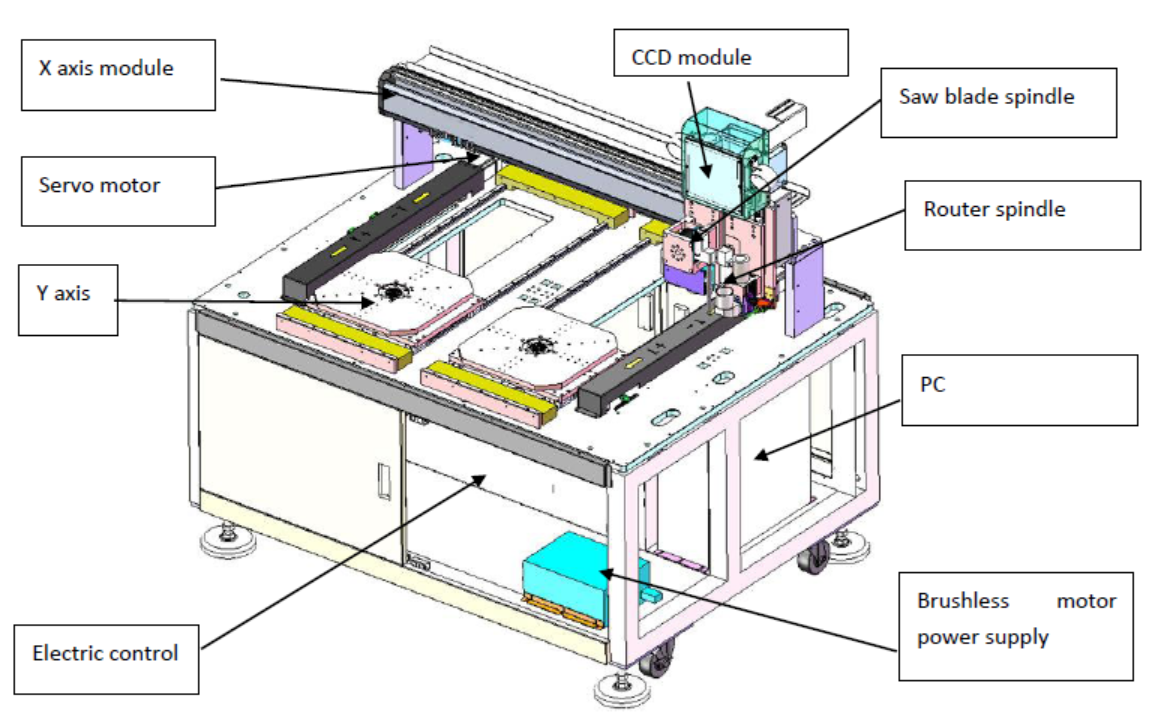

Offline Dual Table Universal PCB Separator Main Part Description:

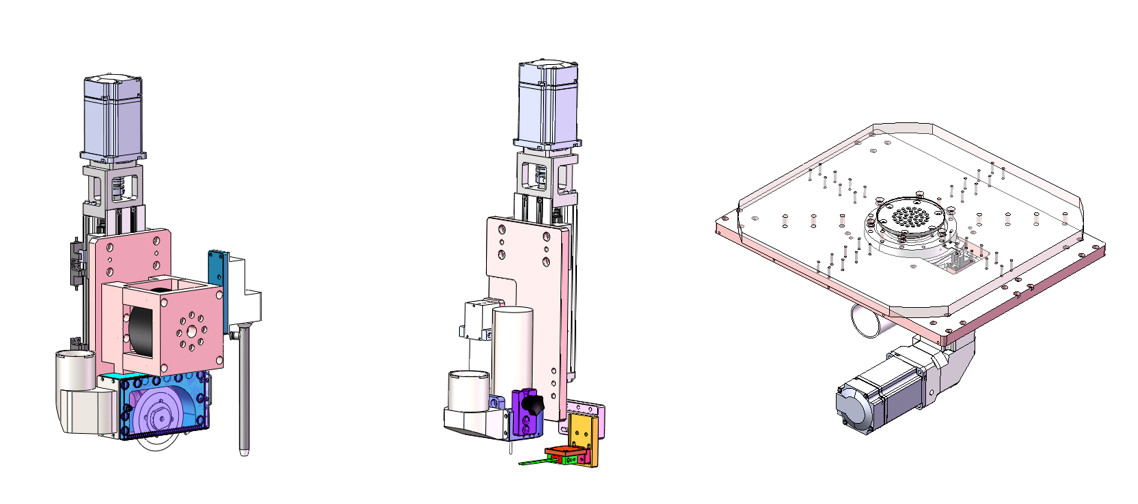

1. The brushless motor drives the saw blade, with suction and ion air to reduce dust adsorption during the cutting process. Servo controlled Z-axis lifting, accurate control of PCB height.

2. High speed SycoTec spindle, fast cutting, equipped with vacuum cleaner and cutter breakage detection to prevent further cutting and scrap after knife breakage. Servo controlled Z-axis lifting, accurate control of PCB height.

3. Customized aluminum alloy fixture, oxidation treatment, anti-static, ensuring cutting accuracy.

Offline Dual Table Universal PCB Separator with Dual Spindles
Offline Single Table Universal PCB Separator Features:

Stress-free, less than 200MIC

CCD vision positioning and mark point correction system.

Smooth cutting effect, easy operation, dust free.

Suitable for all rigid PCB board for both V-cut and milling joints cutting.

Offline Dual Table Universal PCB Separator Specifications:
Model SMTAD1
Working area 400x400mm(standard)
Spindle 2
Table 2
Servo motor Panasonic
Electrostatic eliminator ADK-801ADK-801
PC Industrial grade
Monitor 17 inch
Operation system Windows 10
Spindle speed SycoTec 4025HY for routing, 60000RPM
XYZ drive speed XY 800mm/s, Z 300mm/s
Cutting speed 0-100mm/s
Cutting accuracy ±0.05mm
Overall power 5KW
Working platform Rotating tray can cut in two directions
Spindle cooling system Air
Vacuum cleaner power 3.5KW, 380V, 3-phase
Air pressure 0.5-0.75MPa
Noise control <80db
Safety device Safety door and sensor
Programming Can import dxf file for easier programming
PCB loading Manual
Automatic fault detection and maintenance mode Self diagnosis function, real-time error information display and intuitively query the status of each IO for troubleshooting
Technical support and training Provide equipment operation, programming, hardware maintenance and training services
Vision system CCD visual positioning correction system
Dimension 1750(L)x1450(W)x1600(H)
Weight 1100kgs
Offline Dual Table Universal PCB Separator Shipment Configuration List
1)PCB separator with 2 spindles x 1 unit
2)Vacuum cleaner x 1 unit
3)Saw blade x 5 pc, routing bits x 10 pc
4)Instruction manual x 1 pc
5)Operation video and setup video
Offline Dual Table Universal PCB Separator Advantanges:
  • Compatible with V-cut, tab-routed, and irregularly shaped PCBs.
  • Suitable for FR4, aluminum, or flex-rigid boards.
  • Can handle a wide range of sizes and layouts without reconfiguring production lines.
  • Lower initial investment and operating cost compared to inline systems.
  • Ideal for small batch production, pre-production runs, or R&D environments.
  • Equipped with vision alignment systems and CNC-controlled routing.
  • Ensures burr-free, clean-edge cutting with minimal mechanical stress.
  • Maintains high-quality output even on densely populated boards.
  • User-friendly touchscreen interface for job setup, adjustment, and operation.
  • Offline programming allows operators to create and optimize cutting paths without machine downtime.
  • Operates independently from the SMT line or other production equipment.
  • Can be placed anywhere in the facility for flexible deployment.
  • Avoids bottlenecks in the main production flow.
  • Equipped with protective covers, safety interlocks, and dust extraction systems.
  • Reduces operator fatigue compared to manual depaneling or V-cut breaking.
  • Quick jig/tool change and barcode-based job loading (optional).
  • Perfect for high-mix PCB manufacturing where frequent product changeover is needed.
  • Optional integration with barcode scanners and MES systems for offline traceability.
  • Logs cutting paths, spindle runtime, and production history for each board.
