Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
Specifications
Brand Name :
Winsmart
Model Number :
SMTL350
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
USD50000-70000/unit
Payment Terms :
T/T
Supply Ability :
200 units per year
Delivery Time :
30 working days
Packaging Details :
plywood casee
Separate Thickness :
0.6-3.5mm
Guarrantee :
one year
Max Pcb :
350*350mm(standard)
Panel :
V-cut and Tab boards
Pcb Type :
FR4, FPC
Productname :
PCB Separator Machine
Accuracy :
±0.01mm
Automationlevel :
Semi-automatic or fully automatic options
Pcb Thickness :
0.5~3mm
Laser Scanning Speed :
2500mm/s (max)
Power :
110/220V
Description
Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine
UV Laser PCB Depaneling Machine Description:

It can cut various types of PCB circuit boards with V-CUT and stamp holes, and divide the encapsulated circuit boards and ordinary optical boards. It is suitable for laser cutting and depaneling PCB circuit boards made of soft and hard combination boards, FR4, PCB, FPC, fingerprint identification module, covering film, composite materials, copper substrate and other materials.

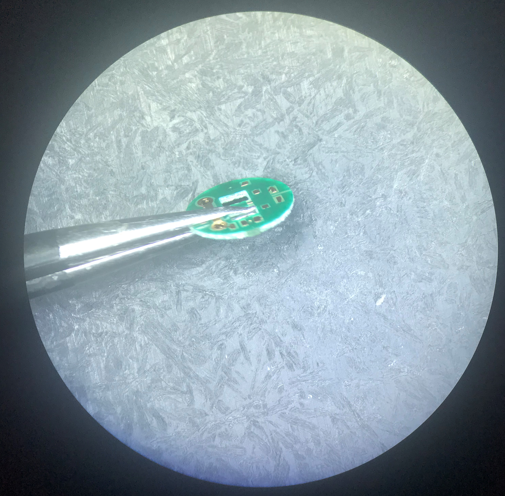

Neat and smooth edge, no burr or overflow Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.

Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine

UV Laser PCB Depaneling Machine Features:
  1. More quick and easy, shorten the delivery time.
  2. High quality, no distortion, surface clean& uniformity.
  3. Gathering the CNC tech, laser tech, software tech…
  4. High accuracy, High speed.

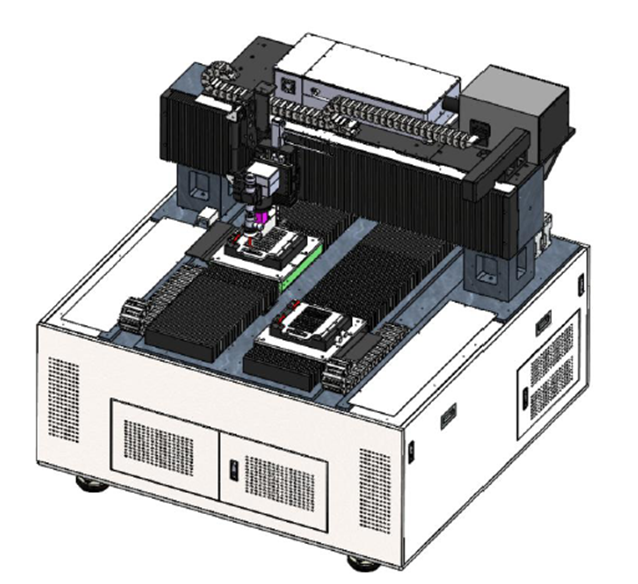

UV Laser PCB Depaneling Machine Specifications:
Model SMTL350
Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Source Optowave UV 10W/12W/15W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 300mmx300mm(Dual table)
Laser Scanning Speed 3000mm/s (max)
Galvanometer Working Field Per One Process 50mmх50mm
UV Laser PCB Depaneling Machine Applications:

FPC and some relative materials.

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.

Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine Dual Table 15W UV Laser PCB Depaneling Machine FPC Cutting Machine

UV Laser PCB Depaneling Machine Principle:

The principle of PCB laser depaneling machine is to irradiate the surface of PCB circuit board with high-energy beam, and realize the vaporization cutting of PCB materials by controlling the parameters such as beam energy density, frequency, speed and processing times.
