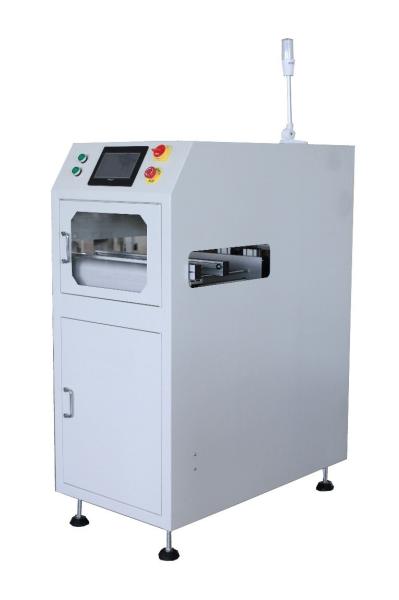

Precision SMT Pcb Loader Machine With 4-6 Bar Air Supply , Min 0.6mm PCB Thickness
Precision SMT Pcb Loader Machine With 4-6 Bar Air Supply , Min 0.6mm PCB Thickness
Specifications
Brand Name :
Morel
Model Number :
LV-350W-TN / LV-460W-TN
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
1 week
Packaging Details :
wooden packing
Supply Ability :
50 Unit / Month
Power Supply :
AC 110/220V±10V,50/60HZ
Air Supply :
４－６bar
PCB Direction :
Left to light (Option: right to eft)
Description

ML Automatic Vacuum Loader

1. PLC control system

2. Pass though function

3. Flexible sucker design, high pressure suction, suction plate position arbitrary adjustable

4. Independent vacuum generator, the upper plate is efficient and stable

5. The motor drives the screw to adjust the PCB width, which is convenient and accurate

6. Major pneumatic parts are made in Japan

7. Storage plate device with lifting function

8. Support feet by special M16 glue foot cup, shockproof, not easy to shift.

9. Parallel screw width adjustment.

10. Standard SMEMA

Model LV-350W-TN LV-460W-TN
Description This unit is used to send bare PCBs out to SMT production line
PCB Size(mm) 445x50~350 535x50~460
Transport Height (mm) 900±20(std)
Transmission Speed 12.0 sec
Maximum capacity of PCB 400pcs(0.6mm thickness PCB)
Power Supply AC 110/220V±10V,50/60HZ
Machine Size 600(L)*1130(W)*1270(H) 600(L)*1250(W)*1270(H)
Weight(KG) 170 200
Air Supply ４－６bar
Compressed air flow Max １０L／min
PCB Thickness(mm) Min 0.6mm
PCB Direction Left to light (Option: right to eft)
