DIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASL
DIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASL
DIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASL
DIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASL
DIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASL
DIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASL
DIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASL
DIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASL
Specifications
Brand Name :
OEM
Model Number :
KAZA-080
Certification :
UL/ROHS/ ISO9001
Place of Origin :
Guangdong , China
MOQ :
1 Unit
Payment Terms :
Western Union,T/T,L/C,D/P,MoneyGram
Supply Ability :
100000 pieces
Delivery Time :
10 ~ 20 Work days
Packaging Details :
P/P
Product Name :
PCBA
Min. Line Spacing :
3 Mil (0.075 Mm)
Min. Hole Size :
3mil (0.075mm)
Components Purchasing :
OK
SMT DIP Assembly :
Support
Type :
SMT Assembly
Silkscreen :
white
Soldmask :
red/black/green
Material :
FR4
Surface :
ENIG/HASL
Copper :
2OZ
Layer :
6 layer
Description
FR4 Material 2oz 4 Layers PCB BGA Assembly HASL ENIG Surface Treatment
PCB Electronic Circuit Board Assembly SMT
1. Features
  • One Stop OEM Service, Made in Shenzhen of China
  • Manufactured by Gerber File and BOM List from Customer
  • FR4 Material, Meet 94V0 standard
  • SMT, DIP technology suport
  • Lead Free HASL, Environmental Protection
  • UL, CE, ROHS Compliant
  • Shipping By DHL,UPS, TNT, EMS or Customer requirement
2. PCBA Technical capability
SMTPosition accuracy:20 um
Components size:0.4*0.2mm(01005) —130*79mm,Flip-CHIP,QFP,BGA,POP
Max. component height::25mm
Max. PCB size:680*500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
Wave-SolderMax. PCB width:450mm
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
Sweat-SolderMetal type :part, whole, inlay, sidestep
Metal material:Copper , Aluminum
Surface Finish:plating Au, plating sliver , plating Sn
Air bladder rate:less than20%
Press-fitPress range:0-50KN
Max. PCB size:800X600mm
TestingICT,Probe flying,burn-in,function test,temperature cycling
3 . Specification Of PCB Assembly Service
1Layer1-30 layer
2MaterialFR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum
3Board thickness0.2mm-7mm
4Max.finished board side500mm*500mm
5Min.drilled hole size0.25mm
6Min.line width0.075mm(3mil)
7Min.line spaceing0.075mm(3mil)
8Surface finish/treatmentHALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
9Copper thickness0.5-4.0oz
10Solder mask colorgreen/black/white/red/blue/yellow
11Inner packingVacuum packing, Plastic bag
12Outer packingStandard carton packing
13Hole tolerancePTH:±0.076, NTPH:±0.05
14CertificateUL, ISO9001, ISO14001, ROHS, CQC
15Profiling PunchingRouting, V-CUT, Beveling
16Assembly ServiceProviding OEM service to all sorts of printed circuit board assembly
4. PCBA Pictures

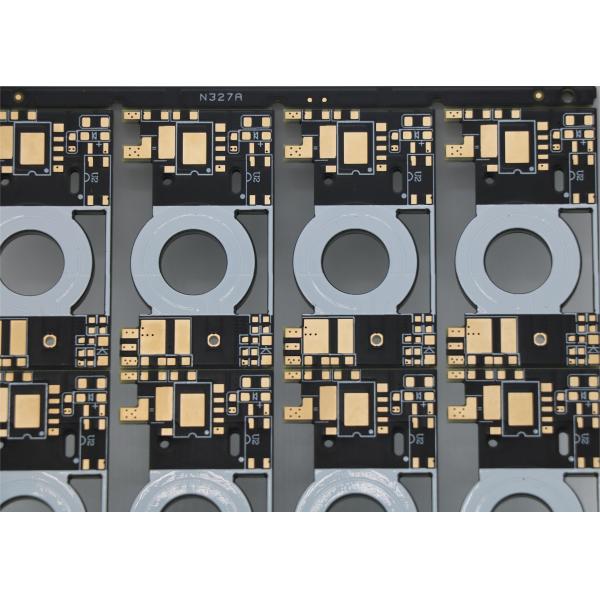

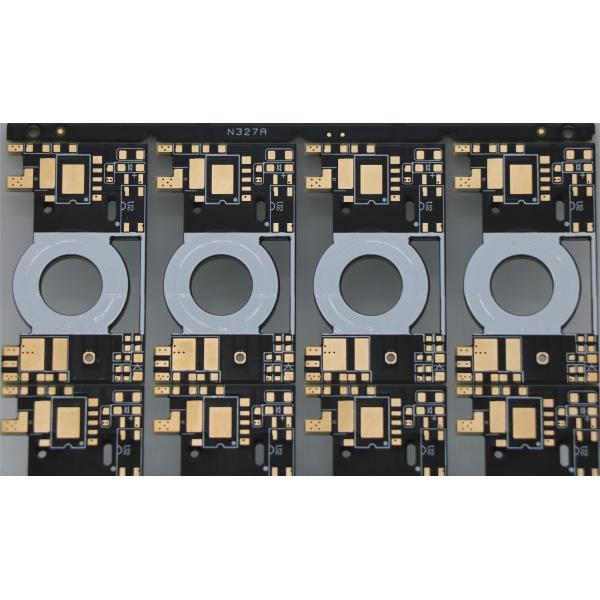

DIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASLDIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASLDIP PCBA Assembly Service IPC Class 2 4 Layers FR4 printed electronic circuit with 1oz HASL
Products Application:
  • Telecom Communication
  • Consumer Electronics
  • Security monitor
  • Vehicle Electronices
  • Smart Home
  • Industrial controls
  • Military & Defense
  • Automotive
  • Smart Home
  • Industrial Automation
  • Medical Devices
  • New Energy
  • And so on
FAQ

Q1: Are you a factory or trading company?

We are a factory,Our company mainly sells PCB Assembly Service

Q2: Do you accept sample order?

Yes, we can accept sample order.

Q3: What's your warranty policy?

We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.

Q4: What's your payment terms?

We accept T/T in advance, paypal, or alibaba trade assurance.

Q5:What's the lead time for mass order?

Normally, it takes about 20-35 days, depends on the order quantity.
