low RDC DCT Toroidal Double Power Choke for Solar inverter 7448510091

Applications

1. High power switching regulators
2. Solar inverter
3. 1:1 flyback converter
4. Buck, Boost, Sepic and CUK Converter
5. Switching regulators with second unregulated output voltage


Characteristics

1. Very low RDC
2. Very low core losses
3. Saturation current higher up to 120 A
4. Low inductance drift over temperature
5. Operating temperature: –40 °C up to +125 °C
6. Coupled inductor with two identical windings
7. More variants due to parallel and series connection
8. Core material WE-Perm
9. Low leakage due to bifilar winding


Electrical Properties:

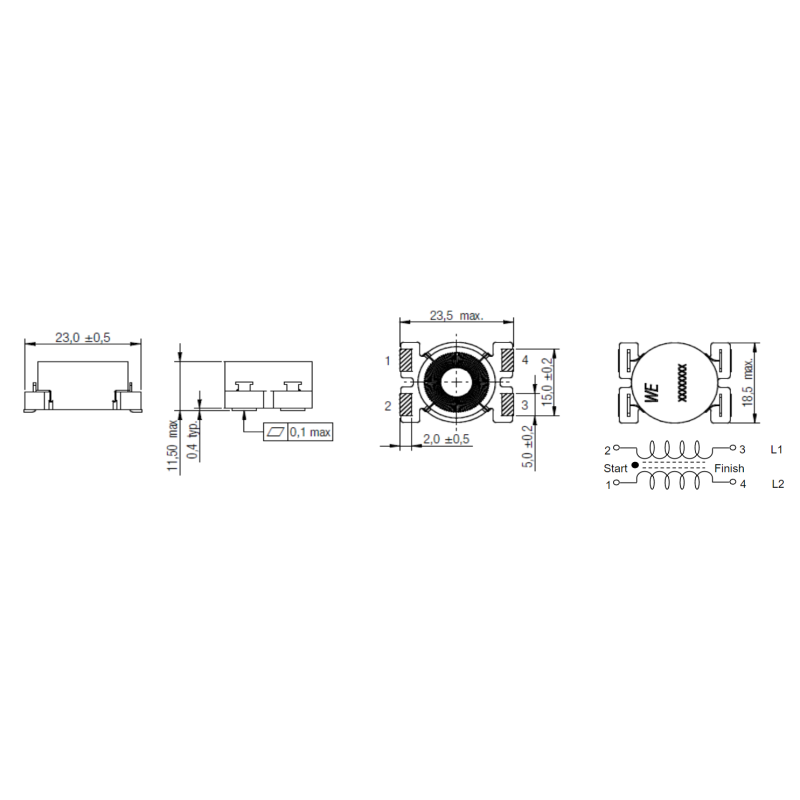

Shape and Dimensions:

Product picture:

low RDC DCT Toroidal Double Power Choke for Solar inverter 7448510091
