Surface Mount SMPS Flyback Transformer Inductors LPE6855ER100MG For DC/DC Converters
Surface Mount SMPS Flyback Transformer Inductors LPE6855ER100MG For DC/DC Converters
Specifications
Brand Name :
Shareway
Model Number :
LPE6855ER100MG
Certification :
RoHS,ISO9001-2001
Place of Origin :
Guangdong,shenzhen
MOQ :
500/1000
Price :
Supportive
Payment Terms :
TT,Paypal,West Union
Supply Ability :
1kk-pcs/month
Delivery Time :
Stock Or 3 weeks
Packaging Details :
Reel/Tray
Product name :
Surface Mount Transformers / Inductors LPE6855ER100MG 17.53X14.1X5.59
Coil Structure :
EEL
Transformers :
Surface Mount Transformers / Inductors
Application :
DC/DC converters
Inductance :
10~68uH
Samples :
Free
Description

Surface Mount Transformers / Inductors LPE6855ER100MG 17.53X14.1X5.59

Description:

Item Name: High Frequency Transformer With EE ferrite core for High Voltage

Components: ferrite core, bobbin, copper wire, coper foil tape

Bobbin Material:Bakelite /PBT/Phenolic

Output Power: 1W-3000W

Output Voltage: 0.5V-5000V

Output Current: 0.01A-100A

Storage Humidity: 30% to 95%

Storage Temperature: -25℃ to +95℃

Working Temperature:-40℃ to +125℃

STANDARD ELECTRICAL SPECIFICATIONS:

MODEL IND.
(μH)		 IND.
TOL.		 DCR MAX.
(Ω)		 MAX. RATED DC CURRENT
(A) (1)		 SATURATING CURRENT
(A) (2)
LPE6855ER100MG 10 ± 20 % 0.02 3.21 3.375
LPE6855ER150MG 15 ± 20 % 0.03 2.90 2.790
LPE6855ER220MG 22 ± 20 % 0.04 2.64 2.325
LPE6855ER330MG 33 ± 20 % 0.05 2.12 1.910
LPE6855ER470MG 47 ± 20 % 0.08 1.73 1.610
LPE6855ER680MG 68 ± 20 % 0.12 1.41 1.350

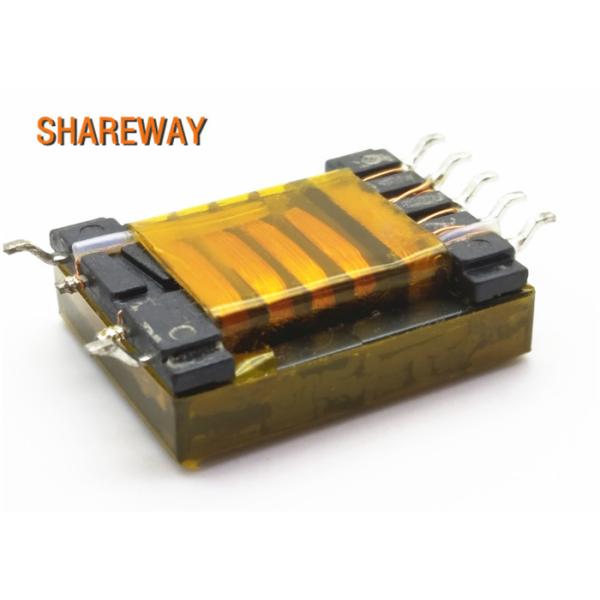

Picture:

Surface Mount SMPS Flyback Transformer Inductors LPE6855ER100MG For DC/DC Converters
