DO3316H-121ML_ surface mount power inductors for excellent solderability
DO3316H-121ML_ surface mount power inductors for excellent solderability
Specifications
Brand Name :
Shareway
Model Number :
DO3316H-121ML_
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
750pcs/reel
Product name :
DO3316H-121ML_ SMT Power Inductors for excellent solderability
Feature :
for excellent solderability
Weight :
0.95 – 1.25 g
Inductance :
0.12 - 4.7uH
Size :
9.91*13.21*6.35mm
DCR :
0.0015 - 0.018 Ohms
Description

DO3316H-121ML_ SMT Power Inductors for excellent solderability

Description:

• Soldered self-leaded construction for excellent solderability.
• Very low DCR values and excellent current handling

Core material Ferrite
Terminations RoHS compliant tin-silver-copper over copper. Other
terminations available at additional cost.
Weight 0.95 – 1.25 g
Ambient temperature –40°C to +85°C with Irms current
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 750 per 13″ reel Plastic tape: 24 mm wide,
0.35 mm thick, 12 mm pocket spacing, 6.4 mm pocket depth

Part

number

L

(μH)

Percent

tol

DCR

max

(Ohms)

SRF

typ

(MHz)

Isat

(A)

Irms

(A)
DO3316H-121ML_ 0.12 20 0.0015 200 28 17
DO3316H-331ML_ 0.33 20 0.002 200 20 16
DO3316H-681ML_ 0.68 20 0.005 200 13 12
DO3316H-102ML_ 1.0 20 0.006 100 11 10
DO3316H-152ML_ 1.5 20 0.008 90 9.0 9.0
DO3316H-222_L_ 2.2 20,10 0.011 80 7.8 7.4
DO3316H-272_L_ 2.7 20,10 0.012 65 7.0 6.6
DO3316H-332_L_ 3.3 20,10 0.014 60 6.4 5.9
DO3316H-392_L_ 3.9 20,10 0.015 50 5.9 5.3
DO3316H-472_L_ 4.7 20,10 0.018 45 5.4 5.4

DO3316H-121ML_ SMT Power Inductors for excellent solderability

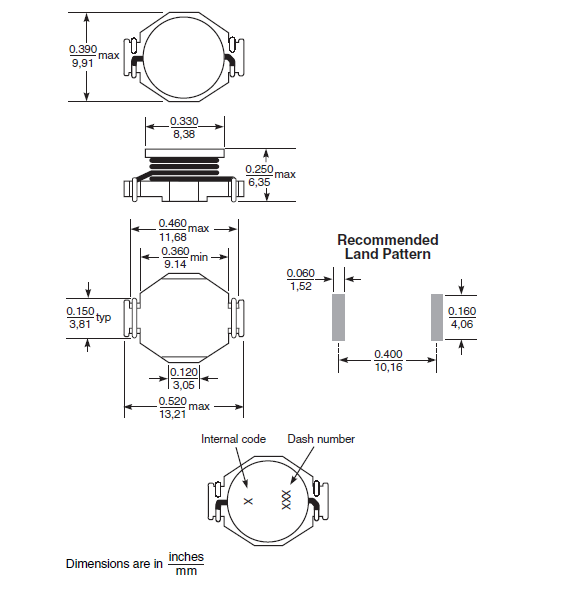

Shape and Dimensions:

DO3316H-121ML_ surface mount power inductors for excellent solderability
