Specifications
Brand Name :
Shareway
Model Number :
PE-68025QNL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
20pcs/tube
Product name :
10BASE-T Surface Mount Ethernet Magnetic Transformers PE-68025QNL
Speed :
10BASE-T
Mount type :
Surface Mount
Type :
Lan Transformers
Application :
Motorola
Weight :
2.5 grams
Description

10BASE-T Surface Mount Ethernet Magnetic Transformers PE-68025QNL


Description:

SURFACE MOUNT 10BASE-T INTERFACE MODULES Fully Integrated for Adapter, Hub, and
Motherboard Applications

Electrical Specifications @25°C / Operating Temperature 0°C to +70°C

RoHS

Compliant

Part

Number

Insertion

Loss

to 10 MHz

(dB MAX)

Attenuation

(TX)

(dB MIN)

Return Loss

5 MHz to 10 MHz

(dB MIN)

Crosstalk

(db MIN)

Common Mode Rejection

(TX)

(dB MIN)

Hipot

(Vrms MIN)

30 MHz 40 MHz 100 MHz 100 Ω 98 ±13 Ω 5-10 MHz 5 MHz 10 MHz 50 MHz 100 MHz 200MHz
PE-68025QNL -6.0 -35 -35 -35 -18 -15 -35 -60 -60 -55 -50 -45 1500
PE-68026NL -1.0 -30 -35 -35 -18 -15 -35 -60 -60 -55 -50 -45 1500
PE-68027QNL -6.5 -35 -35 -35 -18 -15 -35 -60 -60 -55 -50 -45 1500
PE-68056NL -1.0 -30 -27 -27 -18 -15 -35 -40 -30 -50 -45 1500

10BASE-T Surface Mount Ethernet Magnetic Transformers PE-68025QNL

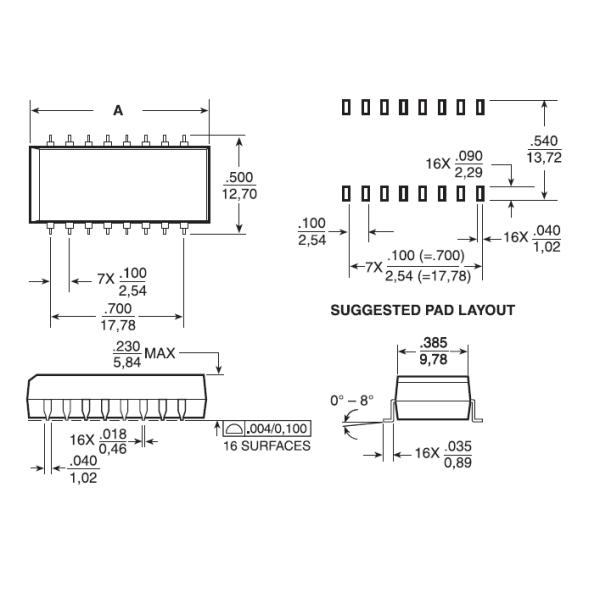

Shape and Dimensions:

10BASE-T Surface Mount Ethernet Magnetic Transformers PE-68025QNLn
