Ethernet Magnetic Transformers H1164NL For Auto MDI/MDIX Applications
Ethernet Magnetic Transformers H1164NL For Auto MDI/MDIX Applications
Specifications
Brand Name :
Shareway
Model Number :
H1164NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
250/reel,15/tube
Product name :
Ethernet Magnetic Transformers H1164NL For Auto MDI/MDIX Applications
Application :
Auto MDI/MDIX Applications
Hipot :
1500 Vrms MIN
Speed :
10/100Base-TX
Latch :
Down
Materials :
Ferrit/ Ferrite/Cu-Ni-Sn
Description

Ethernet Magnetic Transformers H1164NL For Auto MDI/MDIX Applications

Description:

  • 10/100Base-TX Transformer Modules For Auto MDI/MDIX Applications
  • RoHS peak reflow temperature rating 245°C
  • Symmetrical transmit and receive channels for Auto MDI/MDIX capability
  • Approved for use with the Broadcom BCM5226 and Level One LXT9784
  • Meets IEEE 802.3 specification

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C

Part
Number		 Insertion
Loss
(MAX)		 Return Loss
(dB MIN)		 Differential to
Common
Mode Rejection
(dB MIN)		 Crosstalk
(dB MIN)		 Hipot
(Vrms MIN)
0.1-100 MHz 2-30 MHz 40 MHz 50 MHz 80 MHz 1-60 MHz 60-200 MHz 1 kHZ 30 MHz 60 MHz 100 MHz
H1164NL -1.0 -18 -14.4 -13.1 -12 -37 -25 -65 -45 -40 -33 1500
HX1234NL -1.4 -18 -14.4 -13.1 -12 -37 -25 -65 -45 -40 -33 1500

Ethernet Magnetic Transformers H1164NL For Auto MDI/MDIX Applications

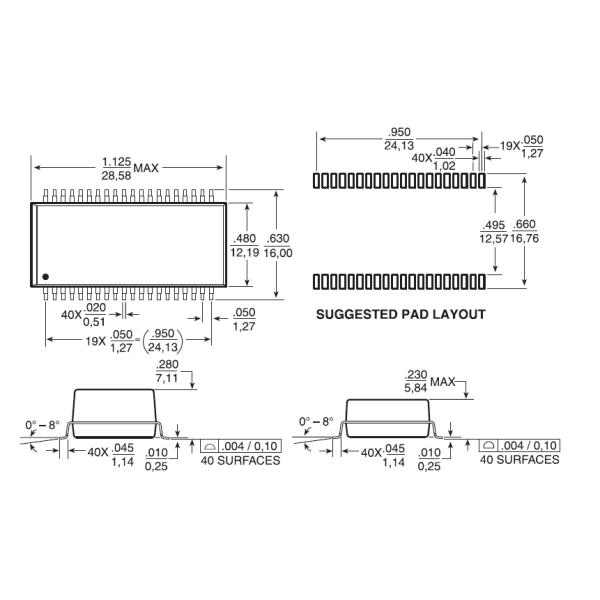

Shape and Dimensions:

Ethernet Magnetic Transformers H1164NL For Auto MDI/MDIX Applications
