Ferrite Core 5.97 G Weight DA2383-AL_ Fit PoE Application With RoHS
Ferrite Core 5.97 G Weight DA2383-AL_ Fit PoE Application With RoHS
Ferrite Core 5.97 G Weight DA2383-AL_ Fit PoE Application With RoHS
Ferrite Core 5.97 G Weight DA2383-AL_ Fit PoE Application With RoHS
Specifications
Brand Name :
Shareway
Model Number :
Ferrite Core 5.97 g Weight DA2383-AL_ For PoE application with RoHS
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
175pcs/Reel
Product name :
Ferrite Core 5.97 g Weight DA2383-AL_ For PoE application with RoHS
application :
PoE application
efficiency :
84%
Weight :
5.97 g
Core material :
Ferrite
Terminations :
tin-silver over tin over nickel over phos bronze
Description

Ferrite Core 5.97 g Weight DA2383-AL_ For PoE application with RoHS

Description:

• Designed to operate in continuous mode at 250 kHz
• TI App Note AN‑1430 specifies 84% efficiency at 3 A.
• 1500 Vrms, one minute isolation from primary and aux to secondary

• Flyback Transformer For Texas Instruments LM5071 PoE PD Controller

Core material Ferrite
Terminations RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight 5.97 g
Ambient temperature –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C

Part

number

L at 0 A

±10% (μH) min

L at Ipk

min (μH)

Input

voltage (V)

DCR max

(Ohms)

Leakage L

max (μH)

Turns

ratios

Ipk

(A)

 Outputs
DA2383-AL 127.0 114.3 24 –60

0.310 (aux)

0.012 (sec)

0.255 (pri)

 1.25

2 : 1 (pri : aux)

6 : 1 (pri : sec )

 1.0

10 V, 0.05 A (aux)

3.3 V, 4.0 A (sec)

Ferrite Core 5.97 g Weight DA2383-AL_ For PoE application with RoHS

Shape and Dimensions:

Ferrite Core 5.97 G Weight DA2383-AL_ Fit PoE Application With RoHS

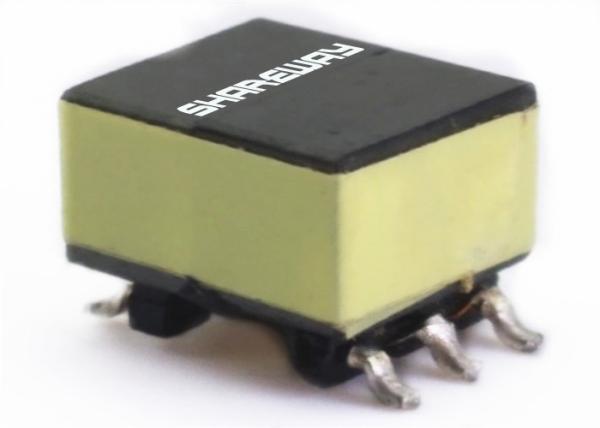

Product picture:

Ferrite Core 5.97 G Weight DA2383-AL_ Fit PoE Application With RoHS
