C1048-AL_ SMT Power Transformer used in isolated and non-isolated designs
C1048-AL_ SMT Power Transformer used in isolated and non-isolated designs
C1048-AL_ SMT Power Transformer used in isolated and non-isolated designs
C1048-AL_ SMT Power Transformer used in isolated and non-isolated designs
Specifications
Brand Name :
Shareway
Model Number :
C1048-AL_
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
5000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
200pcs/reel
Product name :
C1048-AL_ SMT Power Transformer used in isolated and non-isolated designs
Type :
SMT Power Transformer
Application :
isolated and non-isolated designs
Size :
17.2*21.97*8.51mm
measured :
250 kHz, 0.3 Vrms, 0 Adc.
Weight :
5.1 g
Description

C1048-AL_ SMT Power Transformer used in isolated and non-isolated designs

Description:

• Can be used in isolated and non-isolated designs
• Operates with 36 – 72 Volts input; can be used for PoE.
• 1500 Vrms, one minute isolation between the primary and the secondary

• SMT Power Transformer For Linear Technology LT1725 Isolated Flyback Controller

Core material Ferrite
Terminations RoHS tin-silver (96.5/3.5) over tin over nickel over phos
bronze. Other terminations available at additional cost.
Weight 5.1 g
Ambient temperature –40°C to +125°C
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

Part

number

 Power

L at 0 A

±10%

(μH)

L at Ipk

min

(μH)

 DCR max (Ohms)

Leakage L

max (μH)

 Turns ratio

Ipk

(A)

 Output
pri sec bias pri : sec pri : bias
C1048-AL_ 13 W 94.0 84.6 0.210 0.01 0.453 3.9 1 : 0.12 1 : 0.47 1.2 5 V, 2 A

C1048-AL_ SMT Power Transformer used in isolated and non-isolated designs

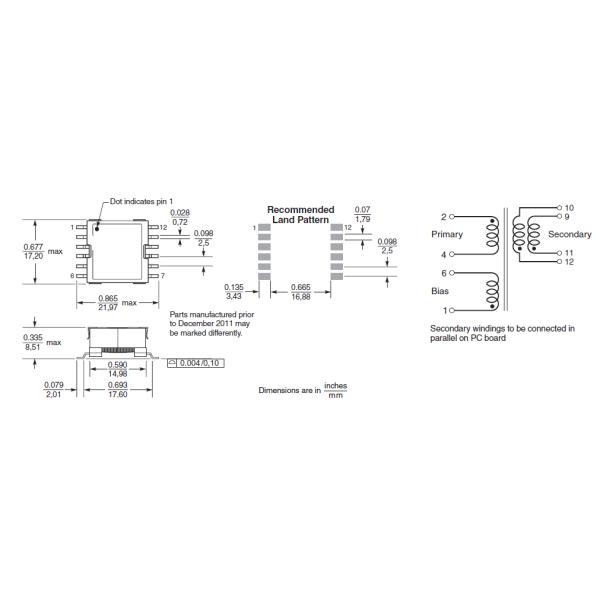

Shape and Dimensions:

C1048-AL_ SMT Power Transformer used in isolated and non-isolated designs
